Quick Details
-
Model Number:
-
HD 5K interactive ups long back up
-
Weight:
-
40
-
Certification:
-
CE,ISO,TLC
-
Waveform:
-
Pure sine wave
-
Name:
-
interactive ups long back up
-
output power factor:
-
0.8,0.7 optional
-
Transfer time:
-
2-4ms
-
DC voltage:
-
24VDC/48VDC
-
Display:
-
LCD
-
Communication interface:
-
RS232
-
Efficiency:
-
90-93%
Quick Details
-
Warranty:
-
1year, 1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BAYKEE
-
Model Number:
-
HD 5K interactive ups long back up
-
Weight:
-
40
-
Certification:
-
CE,ISO,TLC
-
Waveform:
-
Pure sine wave
-
Name:
-
interactive ups long back up
-
output power factor:
-
0.8,0.7 optional
-
Transfer time:
-
2-4ms
-
DC voltage:
-
24VDC/48VDC
-
Display:
-
LCD
-
Communication interface:
-
RS232
-
Efficiency:
-
90-93%
You may also like
Product Description

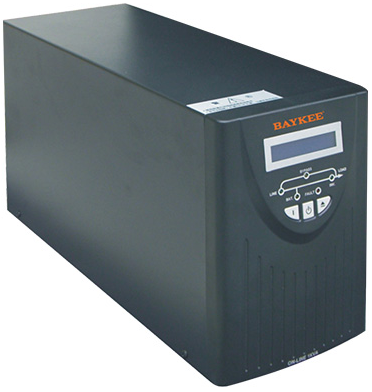

BAYKEE HD-5kva Computer UPS
HD series ups is a smart multifunctional line interactive ups, consisting of inverters, automatic voltage regulator, conversion circuit, main control circuit and display alarm circuits, etc. designed to protect your computer and other important electronic equipment from power failure, brownouts, sags and surges. The ups can filter out the small voltage fluctuations, when meeting big voltage disturbance, ups can disconnect AC input by ups internal circuit, so that avoid influencing your equipment. UPS can offer uninterruptible power supply by lead acid battery or lithium battery until the utility power recover normally. when the utility power is normal, UPS has voltage regulation function by internal automatic voltage regulator. meantime charge the battery. When the utility power is unnormal, ups can change the battery energy into pure sine wave AC power, make the load work.
Apply to Computer center, Network management center, Communication system, Automatic control system, Precision instrument and equipment, household appliances etc. widely apply to home inverter power supply and solar energy off grid inverter power supply (configurate solar panels and solar controller) etc.
Technical Features :
1. Online interactive mode design: high-efficiency, high-power charging.
2. Adaptive output frequency adjustmen
3. Intelligent interactive regulator
4. Intelligent digital control technology
5. Efficient inverter technology
6. Perfect protection features
7. Intuitive LED status indicator
8. Humane screen dynamic LCD display
9. Output no-load protection function
10. High-performance dynamic characteristics
11. Intelligent battery management
12. Intelligent detection function
Specification
|
Rated Capacity(VA)
|
5000va
|
|
|
||
|
Output voltage(W)
|
Rated Capacity*0.8
|
|
|
||
|
Work mode
|
Low frequency online interactive
|
|
|
||
|
Phase
|
Single phase( L+N+G )
|
|
|
||
|
Rated Input voltage
|
100/110/115/127V;220/230/240V ( According to the user's power standard )
|
|
|
||
|
Input voltage range
|
±25%
|
|
|
||
|
Input nominal frequency
|
50/60Hz ( adaptive adjustment )
|
|
|
||
|
Input frequency range
|
±5%
|
|
|
||
|
Voltage stabilizingfunction
|
Adopt Relay smart multi-gear adjusting voltage
|
|
|
||
|
Voltage stabilizing output precision
|
±5%
|
|
|
||
|
Rated Battery Voltage
|
12V/24V/48V/96V/110V/220V (12V only used for 500VA~750VA,24V only used for 1000VA~1500VA, 48V only used for 2000VA~5000VA )
|
|
|
||
|
Charge mode
|
three-stage intelligent battery charging
|
|
|
||
|
Float charging voltage
|
13.5V/27V/54V/108V/121.5V/243V
|
|
|
||
|
Equalized charging voltage (optional)
|
14.1V/28.2V/56.4V/112.8V/126.9V/253.8V
|
|
|
||
|
Temp. Compensation voltage
|
3mV/°C(cell battery)
|
|
|
||
|
Charge power
|
Rated capacity*20%
|
|
|
||
|
Output phase
|
Single phase(L+N+G)
|
|
|
||
|
Nominal voltage
|
Equal to input rated voltage
|
|
|
||
|
Inverter output voltage
|
100/110/115/127V;220/230/240V ( According to the user's power standard )
|
|
|
||
|
Inverter voltage stability
|
±1%(steady load ), ±3% (fluctuation of load )
|
|
|
||
|
Inverter frequency stability
|
50Hz, 60Hz<±0. 5%
|
|
|
||
|
Crest factor
|
>3:1
|
|
|
||
|
Inverter output waveform distortion degree
|
Pure sine wave, Linear load<3%; non-linear load<5%
|
|
|
||
|
Transfer time
|
<4ms
|
|
|
||
|
Overload protection
|
Overload level
|
utility power mode
|
Battery mode
|
||
|
|
105%~125%
|
>10mins
|
>1mins
|
||
|
|
125%~150%
|
>1mins
|
Immediate protection
|
||
|
|
>150%
|
Immediate protection
|
|
||
|
Input protection
|
Voltage, frequency ultralimit protection
|
|
|
||
|
Output protection
|
Overcurrent, short circuit protection
|
|
|
||
|
Battery protection
|
Overcharge, overdischarge protection
|
|
|
||
|
Temperature protection
|
Over- temperature protection
|
|
|
||
|
Hardware fault protection
|
Fuse over current protection, surge voltage protection
|
|
|
||
|
Alarm function
|
Audio alarm
|
|
|
||
|
Work Environment
|
Temperature: 0~40°C, Relative humidity: 30%~90% , Altitude<2000m ( power reduce 1% every 100M raised, 4000M utmost)
|
|
|
||
|
Cooling method
|
Forced ventilation
|
|
|
||
|
Communication interface
|
RS232(optional usb, snmp card )
|
|
|
||
|
Protection level
|
IP21
|
|
|
||
|
Safety performance
|
I/O on ground resistance (3000VAC), stray current less than 3.5mA, insulation resistance exceeding 2MΩ(500VDC)
|
|
|
||
|
Tower type dimension (W*H*D) mm
|
195×445×500
|
|
|
||
|
Rack-mounted type dimension (W*H*D) mm
|
482×133×400
|
|
|
||
For more product information, please chick
CONTACT US
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
