World famous brand electrical component such as Siemens, Schneider, ABB etc
High torque gearbox
Siemens motor achieved global after service;
Zhoushan screw and barrel;
Intelligent PLC controlling system with human-friendly interface.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Screw Speed (rpm):
-
37 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dingkun
-
Voltage:
-
380V or as per your requirement
-
Dimension(L*W*H):
-
23x2x4 Meters
-
Power (kW):
-
37
-
Weight:
-
8000 KG
-
Inverter brand:
-
Switzerland "ABB" Brand
-
Motor:
-
SIEMENS Brand
-
Contactor:
-
SIEMENS
-
Temperature controller:
-
Omron Brand
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
65/132
-
Twin Screw Type:
-
Conical Twin-screw
-
Screw Speed (rpm):
-
37 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dingkun
-
Voltage:
-
380V or as per your requirement
-
Dimension(L*W*H):
-
23x2x4 Meters
-
Power (kW):
-
37
-
Weight:
-
8000 KG
-
Inverter brand:
-
Switzerland "ABB" Brand
-
Motor:
-
SIEMENS Brand
-
Contactor:
-
SIEMENS
-
Temperature controller:
-
Omron Brand
Product Overview
PVC Pipe Making Machine
PVC pipe extrusion machine can produce PVC pipe size range from Ø16 to Ø1000mm.PVC pipes can be used for water supply, water drainage, liquid transportation, electric conduit, etc.We have different kinds of PVC pipe making machine to produce different kinds of PVC pipes,such like UPVC pipe, CPVC pipe,etc.We can provide customized PVC pipe, such as conical or parallel twin screw extruder, double strand or four strand.
Application
Pvc conduit pipes
PVC water supply and drainage pipes
Processing Flow
Mixer→Auto loader→SJSZ65/132 conical twin screw extruder →Mould→Vacuum calibration water tank
→
Haul off machine→ Transversal cutter → Stacker
PRODUCT SPECIFICATIONS
|
PVC pipe Extrusion Line
|
|
|
|
|
||||
|
1. Spiral Loader
|
|
|
|
one set
|
||||
|
2. SJSZ65/132 Conical double screw Extruder
|
|
|
|
one set
|
||||
|
3. Mold
|
|
|
|
one set
|
||||
|
4.Vacuum calibration unit
|
|
|
|
one set
|
||||
|
5. Haul off unit
|
|
|
|
one set
|
||||
|
6. Cutting unit
|
|
|
|
one set
|
||||
|
7. Stacker
|
|
|
|
one set
|
||||
|
Optional auxiliary machines
|
|
|
|
|
||||
|
1. Crusher
|
|
|
|
one set
|
||||
|
2. PVC Pulverizer/Miller
|
|
|
|
one set
|
||||
|
3.Mixer
|
|
|
|
one set
|
||||
|
4.Printer
|
|
|
|
one set
|
||||
|
5.PVC pipe belling machine
|
|
|
|
one set
|
||||
Specific information
|
Diameter Range
|
16-63mm
|
16-63mm dual
|
75-160mm
|
200-315mm
|
350-630mm
|
|
Extruder Model
|
SJSZ51
|
SJSZ65
|
SJSZ65
|
SJSZ80
|
SJSZ92
|
|
Extruder Capacity
|
70-120kg/h
|
150-250kg/h
|
150-250kg/h
|
300-400kg/h
|
500-600kg/h
|
|
Motor Power
|
22kw
|
37kw
|
37kw
|
55kw
|
90kw
|
1.SJSZ65/132 Twin Screw Extruder
2.Mould
40Cr material
Complete set include extrusion die head, Slotting & water ring type calibration sleeve
Apply to PVC single,dual,Four cavity extrusion.
Complete set include extrusion die head, Slotting & water ring type calibration sleeve
Apply to PVC single,dual,Four cavity extrusion.
3.
Vacuum calibration tank
Include full set of vacuum and water pump
length 6000mm
length 6000mm
4.Hual-off machine
Upper and lower caterpillar is driven separately by the frequency inverter

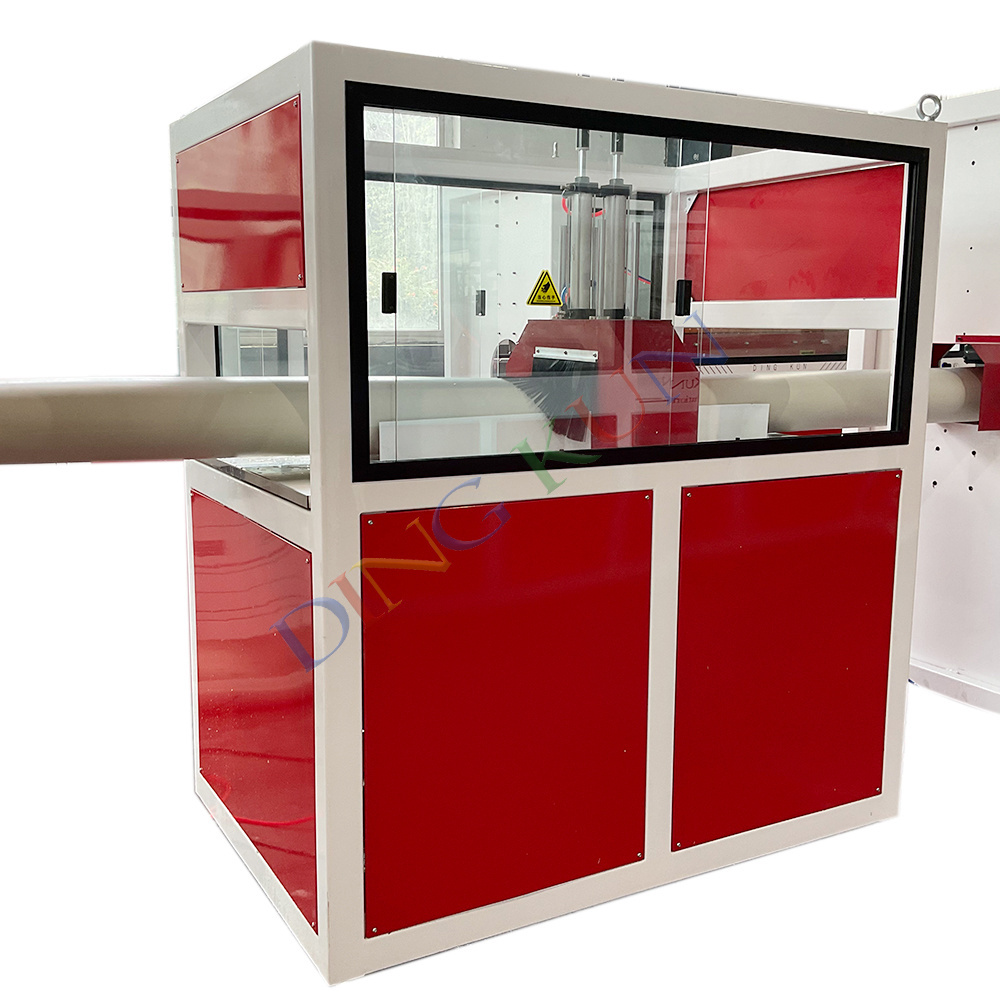

5. No dust Cutter
Enter knife by hydraulic drive
Cutting saw: steel alloy, specific for cutting U-PVC pipe.
Equipped cast aluminum compacted block for accurate cutting
Synchronous control
Cutting saw: steel alloy, specific for cutting U-PVC pipe.
Equipped cast aluminum compacted block for accurate cutting
Synchronous control
6.
Stacker
Stainless steel as touching material
Discharge driving by air cylinder
Discharge driving by air cylinder
7.
Belling machine(optional)
