NSK Japanese bearings;
N45SH magnets;
Stator is stacked with silicon steel;
Stainless steel shaft;
Use high temperature and oxygen-free copper wire, etc
- Product Details
- {{item.text}}
Quick Details
-
Max Speed:
-
<30km/h, 30-50Km/h, >50km/h
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Maytech
-
Model Number:
-
MTO6355-190-HA
-
Style:
-
Radio Control Toy
-
Company:
-
Maytech
-
Motor KV:
-
190KV
-
Idle Current:
-
1.0A
-
Max. Current:
-
65A
-
Shaft:
-
8mm
-
Lipo:
-
2-12S
-
Watt:
-
3510W
-
Thrust:
-
12000g
-
Net Weight:
-
600g
Quick Details
-
Voltage:
-
12V, 24V, 36V, 48V, Other
-
Foldable:
-
NO
-
Range Per Charge:
-
No
-
Max Speed:
-
<30km/h, 30-50Km/h, >50km/h
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Maytech
-
Model Number:
-
MTO6355-190-HA
-
Style:
-
Radio Control Toy
-
Company:
-
Maytech
-
Motor KV:
-
190KV
-
Idle Current:
-
1.0A
-
Max. Current:
-
65A
-
Shaft:
-
8mm
-
Lipo:
-
2-12S
-
Watt:
-
3510W
-
Thrust:
-
12000g
-
Net Weight:
-
600g
Related Products
Product Description

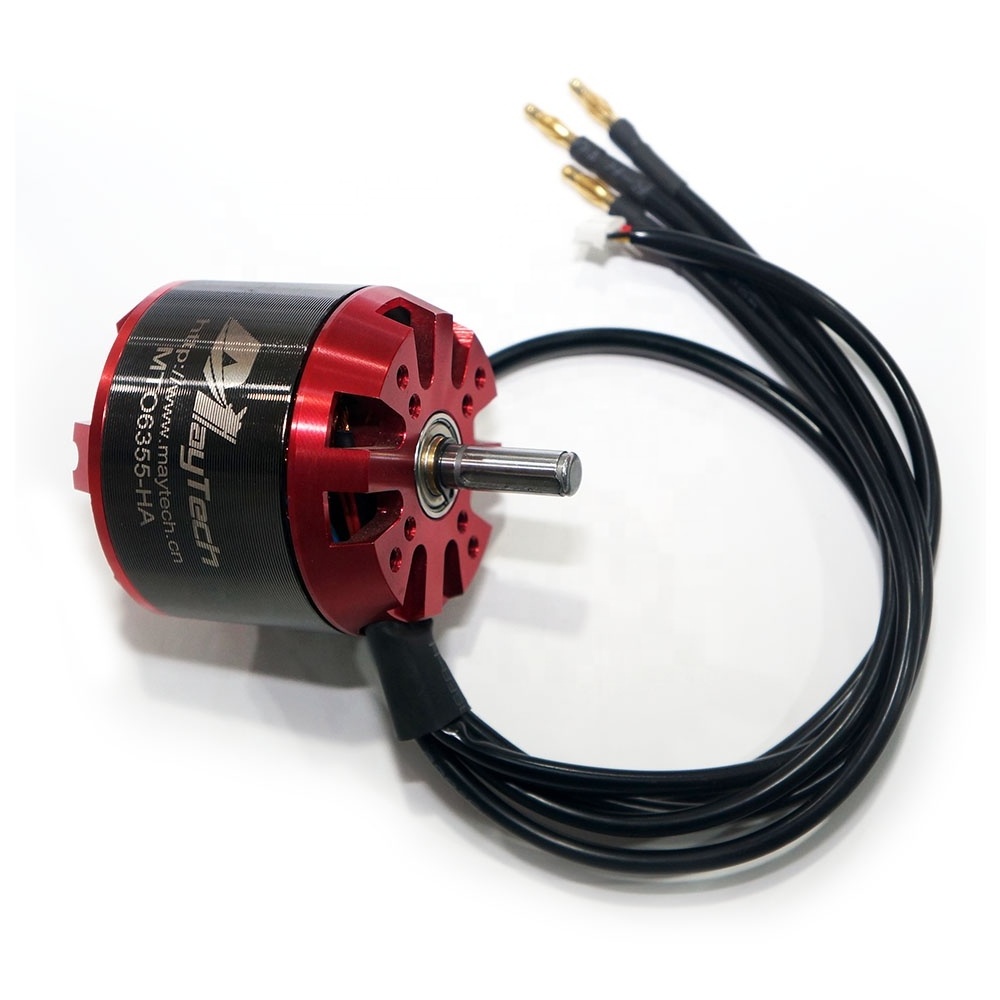

Maytech electric longboard 6355 190kv brushless motor for 4wd electric skateboard custom skateboard
|
Brand
|
Maytech
|
Model No.
|
MTO6355-190-HA
|
|
KV
|
190KV
|
Hall sensor cable
|
500mm, with 2mm pitch
|
|
Idle Current
|
1A
|
Rated Current
|
55A
|
|
Max Current
|
65A
|
Motor Weight
|
600g
|
|
Input Volt
|
2-12S Lipo
|
Shaft Size
|
8mm
|
|
Max Pull
|
12000g
|
Internal Resistance
|
0.0441
|
|
Max Output Watt
|
3510W
|
Motor Dimension
|
62.6*54mm
|
|
Hall Sensor
|
With
|
Logo Customize
|
Yes
|
|
KV Customize
|
Yes
|
Keyway
|
3mm
|
|
Output shaft length
|
26mm
|
With
|
4mm golden male connector
|
