Quick Details
-
Brand Name:
-
GooDisplay
-
Model:
-
GDO0150C
-
Size:
-
1.5 inch
-
Display Color:
-
262,144 Colors (Maximum)
-
Drive Duty:
-
1/128 Duty
-
Number of Pixels:
-
128(RGB)x128
-
Driver IC:
-
SSD1351
-
Connection:
-
FPC-Conector
-
Logic Supply Voltage:
-
2.8V
-
Outlin Dimension:
-
33.80x34.00x1.60(mm)
-
View Area:
-
28.855x28.864(mm)
Quick Details
-
Type:
-
PMOLED
-
Display Size:
-
1.5 inch
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
GooDisplay
-
Model:
-
GDO0150C
-
Size:
-
1.5 inch
-
Display Color:
-
262,144 Colors (Maximum)
-
Drive Duty:
-
1/128 Duty
-
Number of Pixels:
-
128(RGB)x128
-
Driver IC:
-
SSD1351
-
Connection:
-
FPC-Conector
-
Logic Supply Voltage:
-
2.8V
-
Outlin Dimension:
-
33.80x34.00x1.60(mm)
-
View Area:
-
28.855x28.864(mm)

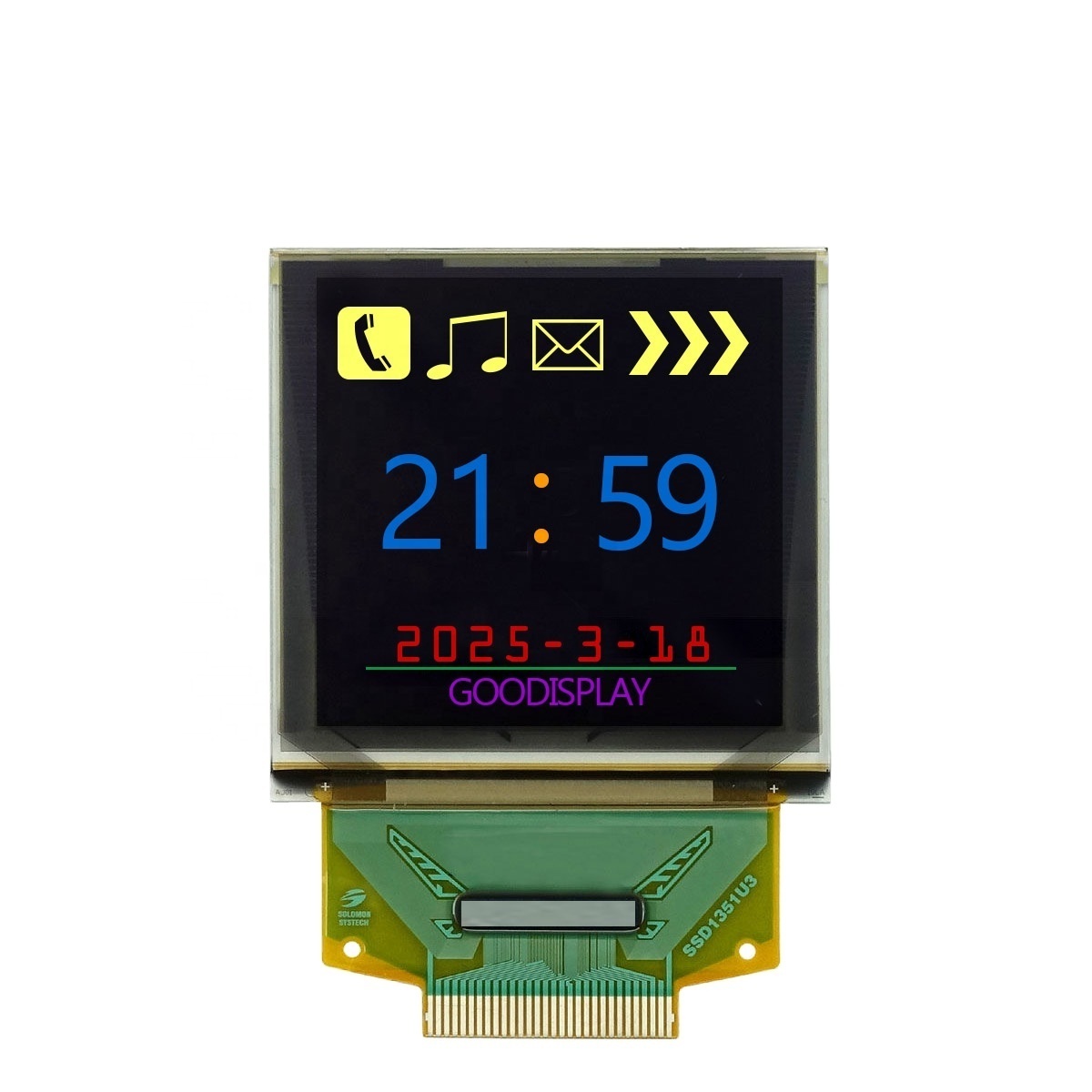

1.5 inch OLED Display Full Color SSD1351128x128 Small OLED
Product Description
GDO015C is the color graphic OLED display module made of 128xRGBx128 OLED pixels,diagonal is only 1.5 inch.The controller ic SSD1351, communicates via 6800/8080 8-bit parallel and 3-wire/4-wire serial interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the connector type,we offer optional zif connector(fpc connector).
|
Part Number
|
GDO0150C
|
|
Diagonal Size
|
1.5 inch
|
|
Display Mode
|
Passive Matrix
|
|
Display Color
|
262,144 Colors (Maximum)
|
|
Drive Duty
|
1/128 Duty
|
|
Number of Pixels
|
128(RGB)x128
|
|
Interface
|
8-bits 68XX/80XX Parallel , 3-/d-wire SPI
|
|
Driver IC
|
SSD1351
|
|
Connection
|
FPC-Conector
|
|
Outlin Dimension
|
33.80x34.00x1.60(mm)
|
|
View Area
|
28.855x28.864(mm)
|
|
Active Area
|
26.855x26.864(mm)
|
|
Pixel Pitch
|
0.07x0.21(mm)
|
|
Pixel Size
|
0.045x0.194(mm)
|
|
IC Package
|
COF
|
|
Brightness(Typ)
|
90 cd/m2
|
|
View Angle
|
＞160
|
|
Power Suppley(Typ)
|
2.8V
|
|
Operating Temperature
|
-30℃~70℃
|
|
Storage Temperature
|
-40℃~80℃
|
