- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Custom
-
Model Number:
-
911BD010200313
-
Max Paper Size:
-
82.5 mm
-
Printing Method:
-
Thermal printing
-
Printing speed:
-
200 mm/s
-
Paper weight:
-
from 70 to 255 g/m2
-
Cutter:
-
Tear-off
-
Flash memory:
-
16 MB
-
Drivers:
-
Windows, Linux, Virtual COM, OPOS, Android, iOS
-
Head life:
-
100 Km
-
External roll diameter:
-
Max 300 mm
-
Interfaces:
-
RS232, USB
-
Supported Barcode:
-
1D and 2D
Quick Details
-
Max. Resolution:
-
203 dpi (8 dot/mm)
-
After-sales Service:
-
Custom S.p.A.
-
Place of Origin:
-
Romania
-
Brand Name:
-
Custom
-
Model Number:
-
911BD010200313
-
Max Paper Size:
-
82.5 mm
-
Printing Method:
-
Thermal printing
-
Printing speed:
-
200 mm/s
-
Paper weight:
-
from 70 to 255 g/m2
-
Cutter:
-
Tear-off
-
Flash memory:
-
16 MB
-
Drivers:
-
Windows, Linux, Virtual COM, OPOS, Android, iOS
-
Head life:
-
100 Km
-
External roll diameter:
-
Max 300 mm
-
Interfaces:
-
RS232, USB
-
Supported Barcode:
-
1D and 2D
PRODUCT DETAIL

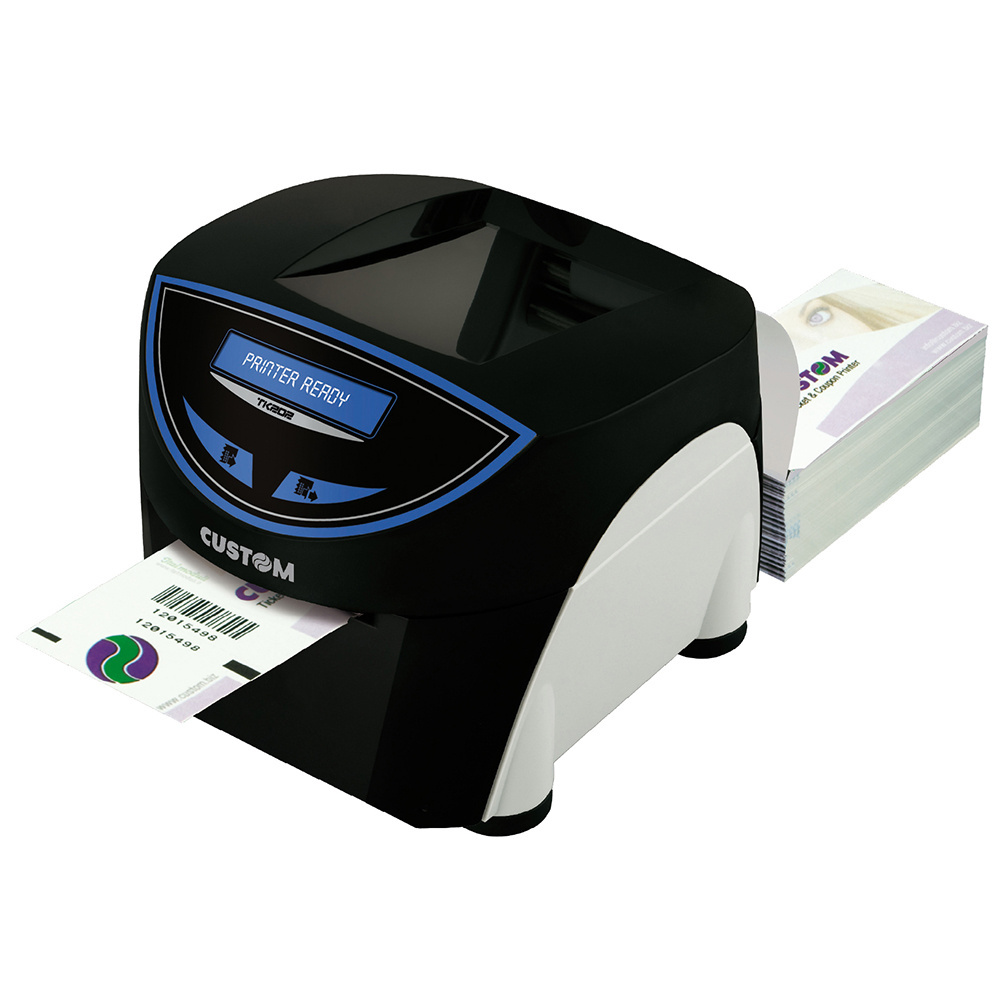

Ticket printer
TK202 is a very fast ticket printer, featuring a printing speed > 200mm/s. Different ticket widths, from 20 to 82.5 mm, easily adjustable by the user. Ticket weight (in grams): from 80 to 255 g/m². 1D and 2D barcode printing.
|
Printing Method
|
Thermal with fixed head
|
|
Number of dots
|
8 dots/mm
|
|
Resolution
|
203 DPI
|
|
Printing (mm/sec)
|
>200 mm/sec
|
|
Character set
|
PC437, PC850, PC860, PC863, PC865, PC858
|
|
Printing Format
|
Height and width from 1x to 8x, reverse, underlined, italic, bold
|
|
Printing Direction
|
Straight, 90°, 180°, 270°
|
|
Paper width
|
From 20mm to 82.5mm (2mm step)
|
|
Paper weight
|
from 70 to 255 g/m²
|
|
Emulation
|
CUSTOM/POS - SVELTA
|
|
Interfaces
|
RS232 / USB
|
|
Data Buffer
|
64 KB
|
|
Flash Memory
|
16 MB
|
|
Graphic Memory
|
Dynamic logo management (graphic memory max 2MB)
|
|
Drivers
|
Windows® (32/64 bit) – only on request WHQL and silent installation;
Linux (32/64 bit); Virtual COM (Linux or Windows 32/64 bit); OPOS; Android™; iOS |
|
Software Tools
|
PrinterSet, CustomPowerTool, Status Monitor
|
|
Power supply
|
24 Vac ± 10%
|
|
Medium consumption
|
0.8A (12,5% dots turned on)
|
|
Head Life
|
100Km /100M pulses
|
|
Dimensions
|
252.1 (L) x 192.6 (H) x 216 (W) mm
|
|
Weight
|
4 Kg
|
