- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
PVC Suction Hose
-
Specification:
-
From ID 1/2 inch to 14 inch
-
Length:
-
20m, 30m, 50m
-
Thickness:
-
From 2mm to 15mm
-
Standard:
-
ROHS
-
Inside Diameter:
-
From 6mm to 200mm
-
Working pressure:
-
6-24bar
-
Application:
-
for conveying water, oil and power, abrasive mineral sands
-
Color:
-
green,yellow,red,black,clear etc
-
Suitable medium:
-
air,petrol,food,powder,chemical
-
Good flexibility:
-
No poison and no smell
-
Temperature Range:
-
10 C to +65 C (14 F to 150 F)
-
Made of:
-
new PVC materials High quality
-
Reinforcement:
-
Rigid PVC helix reinforced anti-choc spiral
-
Wall:
-
High quality plasticized PVC
Quick Details
-
Processing Service:
-
Cutting, produce
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Yousisheng
-
Model Number:
-
PVC Suction Hose
-
Specification:
-
From ID 1/2 inch to 14 inch
-
Length:
-
20m, 30m, 50m
-
Thickness:
-
From 2mm to 15mm
-
Standard:
-
ROHS
-
Inside Diameter:
-
From 6mm to 200mm
-
Working pressure:
-
6-24bar
-
Application:
-
for conveying water, oil and power, abrasive mineral sands
-
Color:
-
green,yellow,red,black,clear etc
-
Suitable medium:
-
air,petrol,food,powder,chemical
-
Good flexibility:
-
No poison and no smell
-
Temperature Range:
-
10 C to +65 C (14 F to 150 F)
-
Made of:
-
new PVC materials High quality
-
Reinforcement:
-
Rigid PVC helix reinforced anti-choc spiral
-
Wall:
-
High quality plasticized PVC
Product Specification:
Alias:
PVC suction hoses Sewage pipe
Material composition: PVC .

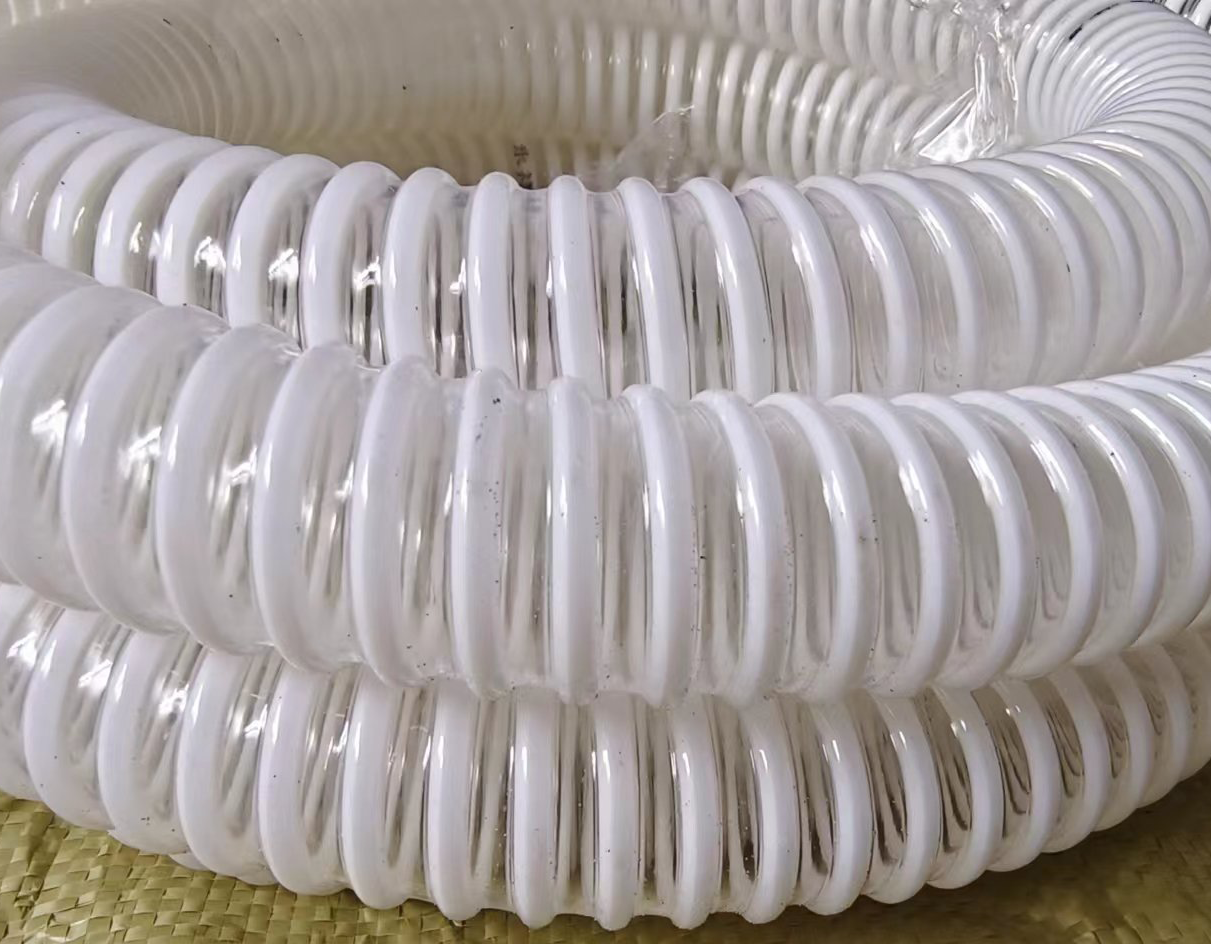

Spiral reinforced PVC suction hoses
Water suction hoses with helix
PVC suction and discharge hoses
PVC grit hoses.
Flexible Pvc Water Vacuum Suction Pipe
Clear Pvc Water Pipe
Pvc Water Pipe
Clear Pvc Water Pipe
Industrial Vacuum Helix Hose
Flexible Pvc Spiral Suction Hose
Feature:
1. Good transparency and easy monitoring liquid flow.
2. Small bending radius and great ability of minus pressure resistance
Application:
Very ideally for conveying water, oil and power, abrasive mineral sands, gravel, cement, chips, shavings, construction, agricultural, and industrial service applications.
Structure:
1. Wall: High quality plasticized PVC
2. Reinforcement: Rigid PVC helix reinforced anti-choc spiral.
3. Characteristics: Strong, abrasion resistant, corrosion resistant and weather resistant. Its of stability and flexibility under performance.
| Size | Diamder |
Working Pressure |
Burst Pressure | Weight | |
| Inch | ID(MM) | OD(mm) | Bar | Bar | KG/M |
| 3/4'' | 19 | 23 | 7 | 21 | 0.23 |
| 1'' | 25 | 30 | 7 | 21 | 232 |
| 1-1/4'' | 32 | 38 | 6 | 18 | 0.4 |
| 1-1/2'' | 38 | 42 | 5 | 15 | 0.45 |
| 2'' | 50 | 56 | 6 | 18 | 0.7 |
| 2-1/2'' | 63 | 70 | 5 | 15 | 0.95 |
| 3'' | 75 | 85 | 5 | 15 | 1.65 |
| 4'' | 100 | 112 | 5 | 15 | 2.9 |
| 5'' | 125 | 137 | 5 | 12 | 3.3 |
| 6'' | 150 | 166 | 5 | 12 | 5.5 |
| 8'' | 200 | 216 | 5 | 12 | 6.7 |
| 10'' | 254 | 274 | 5 | 12 | 12 |
| 12'' | 305 | 329 | 5 | 12 | 17.5 |
| 14'' | 355 | 379 | 5 | 12 | 20 |
