Value:1.25
Number of grooves:1
- Product Details
- {{item.text}}
Quick Details
-
Printing Type:
-
Any Types Of Printing Machine
-
Weight (KG):
-
1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BGD
-
Measure Range:
-
0-25um
-
Division Value:
-
1.25um
-
Material:
-
Corrosion resistance stainless steel
-
Size (L*W*H):
-
170mm*50mm*12mm
-
Effective groove size (L*W):
-
140*12.5mm
-
Groove quantity:
-
1PCS
-
Advantage:
-
The level of dispersion indicated by microns or Hegman
Quick Details
-
Condition:
-
New
-
Type:
-
Grindometer
-
Use:
-
Any Brands Of Printing Machine
-
Printing Type:
-
Any Types Of Printing Machine
-
Weight (KG):
-
1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BGD
-
Measure Range:
-
0-25um
-
Division Value:
-
1.25um
-
Material:
-
Corrosion resistance stainless steel
-
Size (L*W*H):
-
170mm*50mm*12mm
-
Effective groove size (L*W):
-
140*12.5mm
-
Groove quantity:
-
1PCS
-
Advantage:
-
The level of dispersion indicated by microns or Hegman
Product Overview

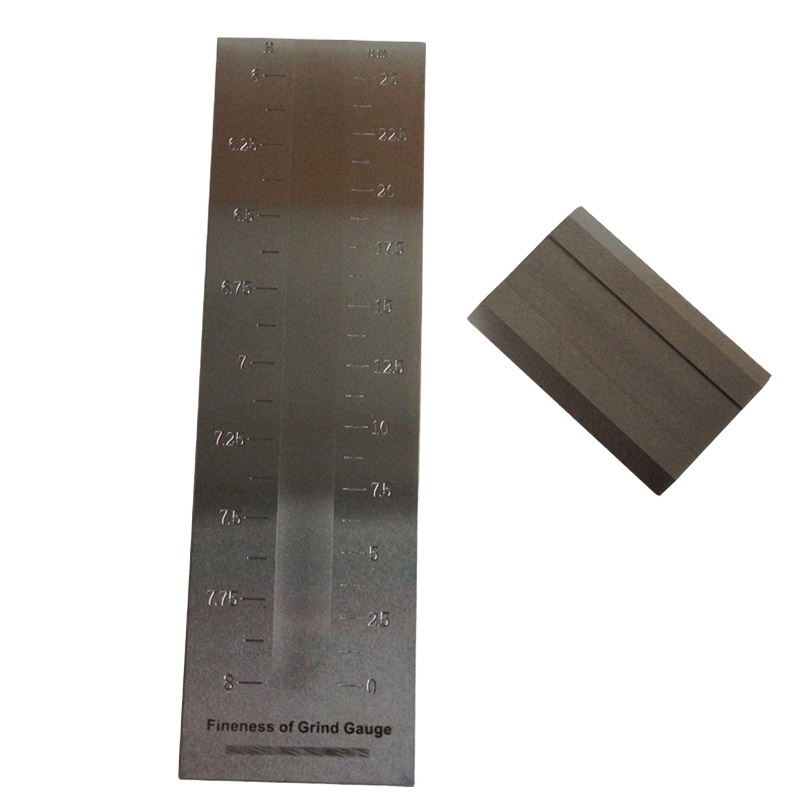

Groove Scraper fineness test
BGD 241/1 0-25um
Fineness plate is a flat steel block with grooves on the surface, the depth of the grooves changing from the maximum at one end to zero at the other end. A scale marking the depth of one or more grooves on the steel block to read out the size of the measured particles. It is designed in accordance with GB/T 1724, GB/T6753.1, ISO1524 for the determination of paint, paint slurry, ink and other liquids and slurry and the size and dispersion of pigment and impurity particles.
Purpose : Used for determining the size and dispersion of pigment and impurity particles in paints, paints, inks and other liquids and pulps.
Material: advanced wear - resistant and corrosion - resistant stainless steel
Accuracy :
Degree of finish:
Purpose : Used for determining the size and dispersion of pigment and impurity particles in paints, paints, inks and other liquids and pulps.
Material: advanced wear - resistant and corrosion - resistant stainless steel
Accuracy :
Fineness gauge plane straightness 0.003mm (0-25μm is 0.002mm)
The bottom of chute plane straightness 0.003mm (0-25μm is0.002mm)
The edge of the blade plane straightness 0.002mm
Degree of finish:
Fineness gauge upper plane: 10
The bottom of chute: 8
Two blades’ degree of finish: 8
FEATURES AT A GLANCE
BGD 241/1----
Single
Groove
Measurement Range:0-25μm Scraper Size:170×50×12mm Division
BGD 241/2----
Single
Groove
Effective Groove Size：140×12.5mm Measurement Range:0-50μm Scraper Size:170×50×12mm Division
Value:2.5
Number of grooves:1
BGD 241/3----Single Groove
Effective Groove Size：140×12.5mm Measurement Range:0-100μm Scraper Size:170×50×12mm
Division Value:5
Number of grooves:1
BGD 241/4----Single Groove
Effective Groove Size：140×12.5mm Measurement Range:0-150μm Scraper Size:170×50×12mm Division Value:7.5 Number of grooves:1
Double Groove
BGD 242/0----Double Groove
Effective groove size:140×12.5mm
Measurement range:0-15μm
Scraper size:175×65×12mm
Division value:0.625
Display Unit: μm Hegman （Mils）
Number of grooves:2
Scraper size:175×65×12mm
Division value:0.625
Display Unit: μm Hegman （Mils）
Number of grooves:2
BGD 242/1----Double Groove
Effective groove size:140×12.5mm Measurement range:0-25μm Scraper size:175×65×12mm
Division value:1.25
Display Unit: μm Hegman（Mils）
Number of grooves:2
BGD 242/2----Double Groove
Effective groove size:140×12.5mm Measurement range:0-50μm Scraper size:175×65×12mm
Division value:2.5
Display Unit: μm Hegman（Mils）
Number of grooves:2
BGD 242/3----Double Groove
Effective groove size:140×12.5mm Measurement range:0-100μm Scraper size:175×65×12mm
Division value:5
Display Unit: μm Hegman（Mils）
Number of grooves:2
Matters Needing Attention
1.Protect well the gauge and blade, avoid damage or deformation of the device, so as to avoid measurement errors
2.Keep cleaning after use and cover with some anti-rust oil.
3.When measuring high viscosity of the sample, should diluent the sample’s viscosity then testing.
4.Check out the blade edge and the straightness of the gauge, if any damage is found,it should be corrected by the
national verification agencies, then it can be used.
Product Paramenters
|
Model Number
|
|
Groove Size
(L*W)
|
Measure
Range
|
Block Size
|
Scale
Value
|
Display
Unit
|
Groove
quantity
|
|
|
Single Groove
Fineness
grind gauge
|
BGD 241/0
|
140*12.5mm
|
0-15μm
|
170×50×12mm
|
0.625
|
μm
|
1
|
|
|
|
BGD 241/1
|
|
0-25μm
|
170×50×12mm
|
1.25
|
μm
|
1
|
|
|
|
BGD 241/2
|
|
0-50μm
|
170×50×12mm
|
2.5
|
μm
|
1
|
|
|
|
BGD 241/3
|
|
0-100μm
|
170×50×12mm
|
5
|
μm
|
1
|
|
|
|
BGD 241/4
|
|
0-150μm
|
170×50×12mm
|
7.5
|
μm
|
1
|
|
|
Double Groove
Fineness
grind gauge
|
BGD 242/0
|
140*12.5mm
|
0-15μm
|
175×65×12mm
|
0.625
|
μm
Hegman
(Mils)
|
2
|
|
|
|
BGD 242/1
|
|
0-25μm
|
175×65×12mm
|
1.25
|
|
2
|
|
|
|
BGD 242/2
|
|
0-50μm
|
175×65×12mm
|
2.5
|
|
2
|
|
|
|
BGD 242/3
|
|
0-100μm
|
175×65×12mm
|
5
|
|
2
|
|
|
ISO Fineness
grind gauge
|
BGD 243/1
|
140*12.5mm
|
0-25μm
|
175×65×12mm
|
1.25
|
μm
|
1
|
|
|
|
BGD 243/2
|
|
0-50μm
|
175×65×12mm
|
2.5
|
μm
|
1
|
|
|
|
BGD 243/3
|
|
0-100μm
|
175×65×12mm
|
5
|
μm
|
1
|
|
|
Wide groove
Fineness
grinding gauge
|
BGD 244/1
|
40*37mm
|
0-25μm
|
175×65×12mm
|
1.25
|
μm
|
1
|
|
|
|
BGD 244/2
|
|
0-50μm
|
175×65×12mm
|
2.5
|
μm
|
1
|
|
|
|
BGD 244/3
|
|
0-100μm
|
0-100μm
|
2.5
|
|
1
|
|
