Catenary type shot blasting machine
-
Chamber size:
-
Customized
-
Color:
-
Customized
-
Dust collector:
-
bag or filter cartridge type
-
separation mold:
-
full curtain wind selection type
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
-
Function:
-
clean structural steel
-
Advantage:
-
long life time
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Qingdao Xinke
-
Weight (KG):
-
30000 KG
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Product name:
-
Catenary type shot blasting machine
-
Chamber size:
-
Customized
-
Color:
-
Customized
-
Dust collector:
-
bag or filter cartridge type
-
separation mold:
-
full curtain wind selection type
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
-
Function:
-
clean structural steel
-
Advantage:
-
long life time
-
Certification:
-
ISO9001
30+ YEARS EXPERIENCE
Automatic Catenary Type Shot Blasting Machine
Name: Automatic catenary type shot blasting machine Machine
Model: Q38 Series - Customized
Catenary shot blasting machine
The Hanging Chain Type Shot Blasting Machine are designed to increase the performance of the hook type machines by keeping the turbines continuously running. The materials are hanged on several hooks connected to a ring type overhead conveyor, which can be monorail, double rail or with hoists.
The hook inside the wheel shot blasting machine, once in position, starts to rotate on its axis and move back and forward in front of the turbines (mounted on one side of the machine). These combined movements ensure the complete shot blasting of the parts external surface. The customer can choose the size and loading capacity of the shot blasting machine according to the parts to be shot-blasted. Depending on the height of the machine, the installation may require a pit.
It is a continuous work process, and can be connected the whole production line or used separately.
Shot blasting wheel:
The shot blasting wheel is a key component, which has a great impact on the quality of steel cleaning, service life and maintenance. This series of machines adopts several sets of the world's most advanced single-disc curved blade shot blasting machines.
Main
Specification of
Catenary shot blasting machine
|
Model/Item
|
Q383
|
Q384
|
Q385
|
Q483
|
Q485
|
Q4810
|
Q583
|
Q5810
|
|
Max weight of work piece(kg)
|
250
|
400
|
500
|
300
|
500
|
800
|
300
|
1000
|
|
Size of work piece (mm)
|
Φ500 *1000
|
Φ700 *1200
|
Φ700 *1500
|
Φ1000 *1400
|
Φ1200 *1700
|
Φ700 *2400
|
Φ1000 *1500
|
Φ750 *2400
|
|
Blasting capacity (kg/min)
|
4*250
|
6*250
|
5*250
|
2*250
|
3*250
|
6*250
|
4*250
|
6*250
|
|
Productivity (hook/h)
|
50,65,38,49
|
70,80
|
75
|
10
|
10
|
10
|
30-60
|
50
|
|
Speed of hanging chain (m/min)
|
0.5,0.65
|
0.8,0.93
|
0.65
|
2.44
|
7.34
|
2.44
|
Converter speed
|
Converter speed
|
|
Distance of hanging chain(mm)
|
600,800
|
800
|
800
|
2560
|
2560
|
2560
|
1000
|
2560
|
|
Total ventilation capacity (m3/h)
|
18000
|
26500
|
23700
|
6000
|
10000
|
25000
|
18000
|
25000
|
|
Power (without dedusting)
|
75.3
|
122.6
|
106.75
|
38.75
|
58.43
|
85
|
127.25
|
160
|
|
Overall dimesion (mm)
|
6000*2800*4200
|
6000*3200*4600
|
7000*3600*4000
|
8450*5350*5003
|
12235*5410*9411
|
4500*5350*5003
|
18000*5960*6440
|
17700*9615*10000
|
|
Machine weight (kg)
|
7500
|
8200
|
8800
|
11150
|
18365
|
11300
|
12000
|
15000
|
Features of
Catenary shot blasting machine
A. Casting surface cleaning and strengthen
B. Thick steel surface rust removal
C. PLC control , can achieve automatic operation
D. Deburring, deflashing and Cosmetic finishing
E. When production requires dictate batch processing
F. Small to medium size castings, fabrications and heat-treated parts
G. Suitable for the unfavorable impact of long and thin, thin wall parts cleaning Shot blasting machine, overhead rail shot blast machine, monorail sand blasting machine
Professional shot blasting machine manufacturer
Photographs taken at client's factory of
Catenary shot blasting machine

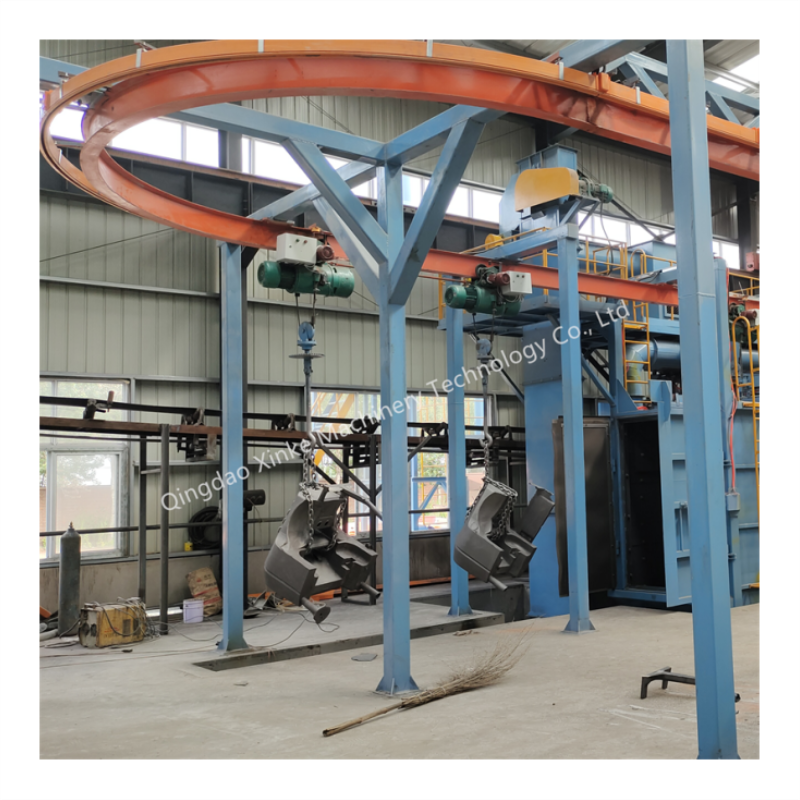

Installation photographs of
Catenary shot blasting machine
Rust Removal System
of
Catenary shot blasting machine
Automatic Catenary Type Shot Blasting Machine Under Production
Quality Guarantee:
1. Our quality guarantee time is one year.
1. Our quality guarantee time is one year.
2. The exwork product is good quality and has stable performance.
3. Machine in the process of using, appear quality problem, after the user notice, give a written reply within 24 hours or send service personnel leaving the factory, and the fault does not exclude the service personnel do not leave the scene.
4. In guarantee time, if there is any problem happens to the machine by normal operation, not because of artificial damage, supplier is responsible to change the broken parts without any charge, but the easily wear spare parts are not included.
5. The seller supplies spare parts for the machine they sold. The seller has a sufficient inventory warehouse.
3. Machine in the process of using, appear quality problem, after the user notice, give a written reply within 24 hours or send service personnel leaving the factory, and the fault does not exclude the service personnel do not leave the scene.
4. In guarantee time, if there is any problem happens to the machine by normal operation, not because of artificial damage, supplier is responsible to change the broken parts without any charge, but the easily wear spare parts are not included.
5. The seller supplies spare parts for the machine they sold. The seller has a sufficient inventory warehouse.
1.How many days do you need to produce this machine?
This is our standard machine and we have some in stock,can be delivered right now after your deposit.
2.What does your factory do regarding quality control?
We pay much more importance to quality from the very beginning to the end of production,Every machine will be fully assembled and carefully tested before shipment.
3.What's your machine quality guarantee?
Quality guarantee time is one year,We choose world famous brand components to keep our machine in perfect working condition.
4.Are you able to give installation and commissioning overseas?How long will it takes?
Yes,we supply overseas service, but customers needs to pay for the engineers fight tickets and hotel,food .Small machine usually takes about 20days.
