Quick Details
-
Name:
-
South Total Station NTS-362R10LC Reflectorless Total Station
-
Telescope Image:
-
Erect
-
Telescope Magnification:
-
30X
-
Telescope Effective Aperture:
-
45mm
-
Field Of View:
-
1°30'
-
Telescope Resolving Power:
-
4"
-
Telescope Minimum Focus:
-
1.5m
-
Distance Measurement:
-
1000m
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
South
-
Model Number:
-
NTS362R6LC
-
Name:
-
South Total Station NTS-362R10LC Reflectorless Total Station
-
Telescope Image:
-
Erect
-
Telescope Magnification:
-
30X
-
Telescope Effective Aperture:
-
45mm
-
Field Of View:
-
1°30'
-
Telescope Resolving Power:
-
4"
-
Telescope Minimum Focus:
-
1.5m
-
Distance Measurement:
-
1000m

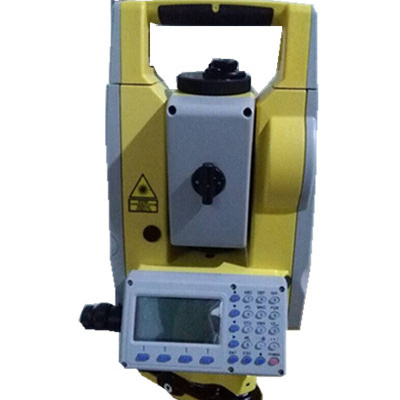

South Total Station NTS-362R10LC Reflectorless Total Station
|
|
NTS-362R10LC |
|||
|
Telescope: |
||||
|
Image |
Erect |
|||
|
Magnification |
30× |
|||
|
Effective aperture |
Telescope:45mm(EDM:50mm) |
|||
|
Resolving power |
3″ |
|||
|
Field of view |
1°30′ |
|||
|
Minimum focus |
1m |
|||
|
Tube length |
154mm |
|||
|
Angle Measurement |
||||
|
Measuring method |
absolute encode |
|||
|
Dia of circle(vertical, horizontal) |
79mm |
|||
|
Minimum reading |
1″ 5″Selectable |
|||
|
Detection method |
Horizontal: Dual Vertical: Dual |
|||
|
Accuracy |
2″ |
|||
|
Distance Measurement: |
||||
|
Max. Range |
single prism |
5km |
||
|
|
Reflectorless |
300m(object in shade,or sky overcast) |
||
|
Displaly |
Max:99999999.9999m Min:0.1mm |
|||
|
Unit |
m/ft |
|||
|
Accuracy |
Reflectorless |
Fine |
±(5mm+2ppm·D) |
|
|
|
|
Tracking |
±(10mm+2ppm·D) |
|
|
|
Reflector |
Fine |
±(2mm+2ppm·D) |
|
|
|
|
Tracking |
±(5mm+2ppm·D) |
|
|
|
|
IR sheet |
±(5mm+2ppm·D) |
|
|
measuring time |
reflectorless |
|
Fine mode:<1.2S;Tracking mode:<0.5s |
|
|
|
reflector |
|
Fine mode:<1.2S;Tracking mode:<0.5s;IR sheet mode:<1.2S |
|
|
Atmospheric correction |
Auto correction ,manual input |
|||
|
Atmosphericrefraction and earth curvature correction |
Auto correction ,manual input |
|||
|
prism constant correction |
Auto correction ,manual input |
|||
