- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
5000L
-
Weight (KG):
-
1350 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINCOLA
-
Voltage:
-
220V/380V 50HZ
-
Dimension(L*W*H):
-
As finsihed machine
-
Power (kW):
-
22 kW
-
Kewword:
-
Liquid Mixing Tank
-
Function:
-
dispersion, stirring,mixing
-
Color:
-
customized
-
Model:
-
single screw & double screw
-
Control:
-
Botton
-
Weight:
-
As finished machine
-
Lifting:
-
hydraulic lifting and down
-
Packing:
-
Standard wooden case package
-
Mixing speed:
-
0-1450r/min, adjustable
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts
Quick Details
-
Barrel Volume (L):
-
1000
-
Max. Loading Volume (L):
-
1000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 1450
-
Max. Loading Capacity:
-
5000L
-
Weight (KG):
-
1350 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINCOLA
-
Voltage:
-
220V/380V 50HZ
-
Dimension(L*W*H):
-
As finsihed machine
-
Power (kW):
-
22 kW
-
Kewword:
-
Liquid Mixing Tank
-
Function:
-
dispersion, stirring,mixing
-
Color:
-
customized
-
Model:
-
single screw & double screw
-
Control:
-
Botton
-
Weight:
-
As finished machine
-
Lifting:
-
hydraulic lifting and down
-
Packing:
-
Standard wooden case package
-
Mixing speed:
-
0-1450r/min, adjustable
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts
Cosmetics Manufacturing Equipment Snail Slime Machine Emulsifier Toothpaste Making Machinery Liquid Mixing Tank

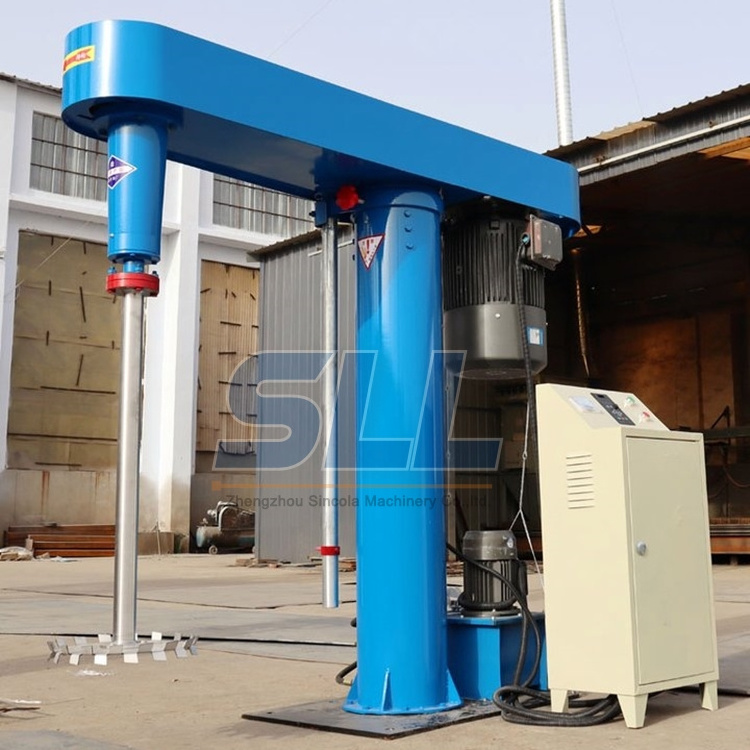

High -speed dispersing machine, Widely used in dispersing and mixing of paint, coating, pigment, emulsion, resin, printing ink, adhesives, dye, cosmetic, petroleum, etc.
The main motor is a speed regulating motor, with a speed regulating range of 0-1440 rpm/cents. The medium speed is mixed and dissolved.
Under the high -speed rotation of the leaves, the material is flipped violently in the container, and it has a hit and cutting with the blades, so that the gathering collective destruction can be quickly dispersed, the average quality is mixed, and the dissolution is accelerated.
|
Model |
Power kw |
Speed/rpm |
Lifting distance |
Mixing Tank L |
Disperser disc diameter mm |
Hydraulic station motor kw |
|
SFS-0.4 |
0.4 |
0-1440 |
600 |
2 |
60 |
0 |
|
SFS-1.1 |
1.1 |
0-1440 |
600 |
5-50 |
60 |
0 |
|
SFS-2.2 |
2.2 |
0-1440 |
600 |
50-150 |
150 |
0.75 |
|
SFS-4 |
4 |
0-1440 |
600 |
50-200 |
200 |
0.75 |
|
SFS-5.5 |
5.5 |
0-1440 |
800 |
80-250 |
200 |
0.75 |
|
SFS-7.5 |
7.5 |
0-1440 |
800 |
100-300 |
250 |
0.75 |
|
SFS-11 |
11 |
0-1440 |
800 |
100-400 |
250 |
0.75 |
|
SFS-15 |
15 |
0-1440 |
800 |
250-500 |
300 |
0.75 |
|
SFS-18.5 |
18.5 |
0-1440 |
1100 |
200-1000 |
300 |
1.1 |
|
SFS-22 |
22 |
0-1440 |
1100 |
500-1500 |
300 |
1.1 |
|
SFS-30 |
30 |
0-1440 |
1100 |
500-1500 |
350 |
1.1 |
|
SFS-37 |
37 |
0-1440 |
1100 |
500-2000 |
400 |
1.5 |
|
SFS-45 |
45 |
0-1440 |
1300 |
500-2500 |
450 |
1.5 |
|
SFS-55 |
55 |
0-1440 |
1300 |
600-3000 |
450 |
1.5 |
|
SFS-75 |
75 |
0-960 |
|
800-4000 |
500 |
2.2 |
|
SFS-90 |
90 |
0-960 |
|
1000-5000 |
550 |
2.2 |
|
SFS-110 |
110 |
0-960 |
|
1000-6000 |
550 |
2.2 |
Features:
High speed disperser is used for mixing, dispersing and stirring the liquid-soild materials.
1.High speed dispersion machine is to dissolve , disperse and mix materials with different viscosity materials.
2.The large stress forces break down the agglomerates into the liquid or paste suspension
3.With cover matching with container to avoid dust flying ,materials splashing and volatilization of solvent products during dispersing.
4.Easy operation, safe and convenient, the cover and vessels are mirror polished, easy to clean and nice appearance.
5.Little air absorbed during mixing and dispersing process. It disperses and dissolves materials to smaller particle size efficiently .
6.No dead corner during mixing .Easy to clean, wide capacity range various speed control, stable operation, low noise and long-time continuous operation
Packaging Detail: Internation export standard wooden case packing.
Our Services
Pre-sale Service :
-
Supply item design,process design.
- Professional manufacturer, Welcome to visit our factory at any time.
- Customize the machine according to your requirement.
- Free fragile accessories will be sent with the machine.
- Free training for customer s.
Services during the sale :
- Updated photograph product progress in timely .(Includi ng semi-products, final products,testing, and products packing, delivery)
- Ensure product with high quality and pre-commissioning before delivery .
-
Provided normal clearance documents, so that the customer clearance smoothly.
After-sale services:
-
Give you machine ’ s user manual and video for help you use the machine more better.
-
Install and debug the equipment, ensure the machine running smoothly.
-
Free training for customer s.
-
One year warranty period, life-time maintenance. In exceed warranty period, the spare parts to send in production cost price.
-
Provide technical exchange and support.
Our commitment:
-
Our staff on-line in 24 hours, 365 days of the year. When you need assistance, well-trained and experienced staffs are ready to offer service to you.
- Small order quantity is acceptable here.
-
Your business relationship with us will be confidential to any third party.
-
At this exact moment, we already export our products to over 100 countries all over the world. Thousands of our clients and partners give us excellent feedback.
-
CE Certification and many other qualifications are provided.
