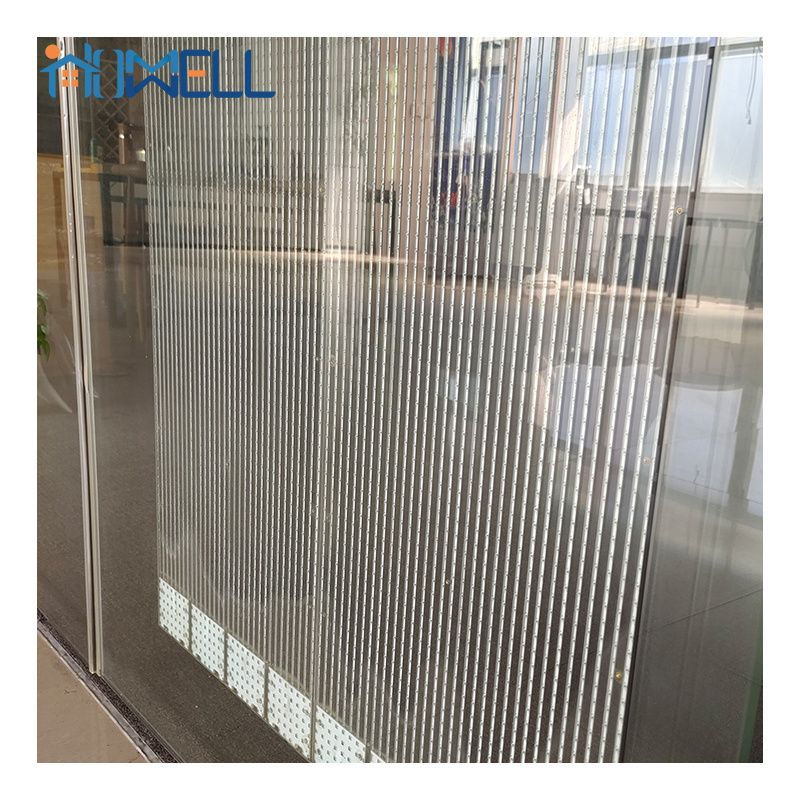

Transparent LED Film for Windows PCD Board Flexible Soft Wall Panel
Transparent LED Film for Windows PCD Board Flexible Soft Wall Panel
Transparent LED Film for Windows PCD Board Flexible Soft Wall Panel
Transparent LED Film for Windows PCD Board Flexible Soft Wall Panel
Transparent LED Film for Windows PCD Board Flexible Soft Wall Panel
Transparent LED Film for Windows PCD Board Flexible Soft Wall Panel
Transparent LED Film for Windows PCD Board Flexible Soft Wall Panel
Transparent LED Film for Windows PCD Board Flexible Soft Wall Panel

Transparent LED Film for Windows PCD Board Flexible Soft Wall Panel

FOB Reference Price: Get Latest Price
≥1 Square meters
US $240
≥10 Square meters
US $238
≥100 Square meters
US $223
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Panel Size:
111mm 222mm 333mm...
Media Available:
Other
Place of Origin:
Tianjin, China
Model Number:
T3 series
Pixel Pitch:
3.91*7.81(W/H), 5.5*11/11*11/11*22/22*22
Brand:
HOMEWELL
Pixel Spacing(mm):
3.91*7.81(W/H)
Module Resolution(w*h):
256*64
Module Size(mm):
1000*500*35
Module Weight(kg):
2.5
Unit Area(m²):
0.5
Pixel Density(Dot/m²):
32768
Best Visual Distance(m):
5-10
Permeability(%):
55%
Viewable Angle("):
160

Quick Details

Application:
Indoor
Brand Name:
HOMEWELL
Color:
transparent
Panel Size:
111mm 222mm 333mm...
Media Available:
Other
Place of Origin:
Tianjin, China
Model Number:
T3 series
Pixel Pitch:
3.91*7.81(W/H), 5.5*11/11*11/11*22/22*22
Brand:
HOMEWELL
Pixel Spacing(mm):
3.91*7.81(W/H)
Module Resolution(w*h):
256*64
Module Size(mm):
1000*500*35
Module Weight(kg):
2.5
Unit Area(m²):
0.5
Pixel Density(Dot/m²):
32768
Best Visual Distance(m):
5-10
Permeability(%):
55%
Viewable Angle("):
160

Transparent LED Film for Windows PCD Board Flexible Soft Wall Panel

Model T3 T10 T20
Structure of Pixel RGB RGB RGB
Pixel Spacing(mm) 3.91*7.81(W/H) 10*10(W/H) 20*20(W/H)
Module Resolution(w*h) 256*64 96*32 48*16
Module Size(mm) 1000*500*35 960*320*35 960*320*35
Module Weight(kg) 2.5 2.2 2.2
Unit Area(m²) 0.5 0.372 0.372
Pixel Density(Dot/m²) 32768 10000 5000
Best Visual Distance(m) 5-10 10-15 20-55
Permeability(%) 55% 65% 85%
Viewable Angle(") 160 160 160
Display Brightness(CD/m²) 3500 2500 1500
Contrast 5000:1 5000:1 5000:1
Grayscale level(Bit) 16 16 16
Driver Mode Static Static Static
Screen Refresh Rate(Hz) 1920 1920 1920
Peak Power Consumption w/m² 600W 600W 600W
Playback Power Consumption w/m² 300W 200W 200W
Power Supply requirements DC70V DC70V DC70V
Operating Temperature(℃) -5-40 -45 -45
Working Humidity(RH) 15-90 15-90 15-90
Screen Body Material PC+Aluminium Extrusion Material PC+Aluminium Extrusion Material PC+Aluminium Extrusion Material

FAQ

1. May I know the Minimum order for your products?

MOQ for transparent led display is 1sqm.

2. May I know the advantages of transparent LED Display?

Obvious advantages comapre to tranditional led facade and mesh led display:

1) 50%-94% transparency, no influence for window light and wind ventilating;

2) Only 16-18kg/m2, slim and light than die casting aluminumled panels;

3) Simplified led panel no need steel structure for fixation, save labour cost and a lot space;

4) Widely application for building glass wall, chain shop showcase, airport, expo center, stage, etc.

3. How to install the transparent led display?

Installation for transparent led display is so easy and simple, only tight cabinets quick lock, and install several steel tube to fix the whole led display from top side and bottom side.
