Quick Details
-
Table Travel (Z) (mm):
-
2000 mm
-
Travel (W-axis) (mm):
-
2000 mm
-
Marketing Type:
-
Hot Product
-
Positioning Accuracy (X axis) mm:
-
0.005
-
Positioning Accuracy (Y axis) mm:
-
0.005
-
Positioning Accuracy (Z axis) mm:
-
0.005
-
Range of Spindle Speed(r.p.m):
-
800 r.p.m
-
Place of Origin:
-
China
-
Weight (T):
-
28 T
-
Product Name:
-

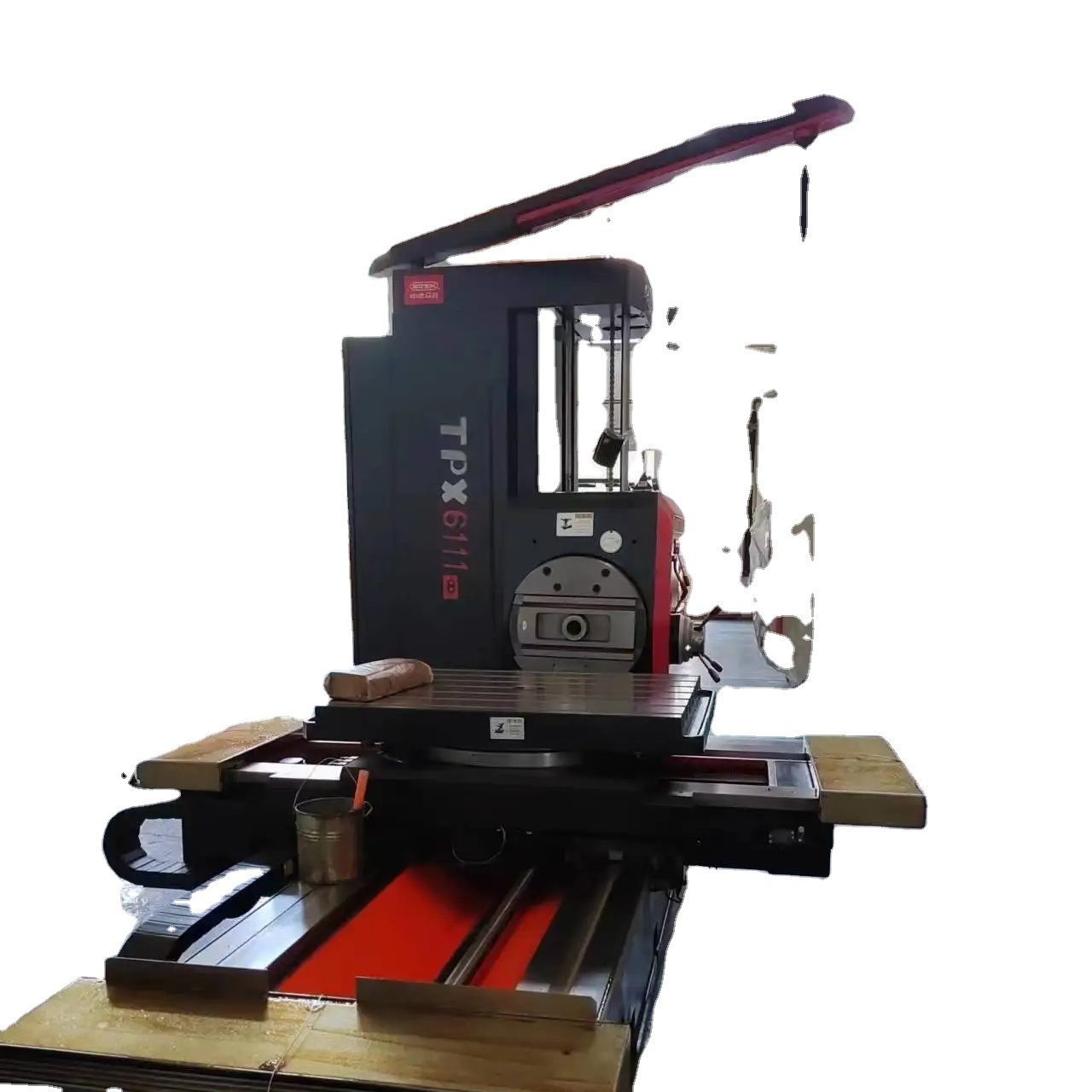

TPX6113/2 Horizontal Boring and Milling Machine
-
Spindle Diameter(mm):
-
130
-
Spindle Taper:
-
Metric 80 (ISO7:24No50)
-
Maximum Torque of Spindle(Nm):
-
3136
-
Maximum Axial Resistance of Spindle(N):
-
31360
-
Spindle Speed Settings:
-
24
-
Spindle Speed Range(r/min):
-
4-800
-
Main Motor Power(kw):
-
15
-
Facing Plate Speed Range(r/min):
-
2.5-125
-
Facing Plate Max Torque(N.m):
-
600
Quick Details
-
Table Size (mm):
-
1800x1600
-
Table Travel (X) (mm):
-
2000 mm
-
Table Travel (Y) (mm):
-
1800 mm
-
Table Travel (Z) (mm):
-
2000 mm
-
Travel (W-axis) (mm):
-
2000 mm
-
Marketing Type:
-
Hot Product
-
Positioning Accuracy (X axis) mm:
-
0.005
-
Positioning Accuracy (Y axis) mm:
-
0.005
-
Positioning Accuracy (Z axis) mm:
-
0.005
-
Range of Spindle Speed(r.p.m):
-
800 r.p.m
-
Place of Origin:
-
China
-
Weight (T):
-
28 T
-
Product Name:
-
TPX6113/2 Horizontal Boring and Milling Machine
-
Spindle Diameter(mm):
-
130
-
Spindle Taper:
-
Metric 80 (ISO7:24No50)
-
Maximum Torque of Spindle(Nm):
-
3136
-
Maximum Axial Resistance of Spindle(N):
-
31360
-
Spindle Speed Settings:
-
24
-
Spindle Speed Range(r/min):
-
4-800
-
Main Motor Power(kw):
-
15
-
Facing Plate Speed Range(r/min):
-
2.5-125
-
Facing Plate Max Torque(N.m):
-
600
Products Description
|
Item
|
|
Unit
|
TPX6113
|
TPX6113/2
|
|
Spindle
|
Diameter
|
mm
|
130
|
130
|
|
|
Taper
|
-
|
Metric 80
(ISO7:24No50)
|
Metric 80
(ISO7:24No50)
|
|
|
Max Torque
|
N.m
|
3136
|
3136
|
|
|
Max Axial Thrust
|
N
|
31360
|
31360
|
|
|
Speed Settings
|
-
|
24
|
24
|
|
|
Speed Range
|
r/min
|
4-800
|
4-800
|
|
|
Main Motor Power
|
kW
|
15
|
15
|
|
Facing Plate
|
Max Torque
|
N.m
|
4900
|
4900
|
|
|
Diameter
|
mm
|
750
|
750
|
|
|
Speed Range
|
r/min
|
2.5-125
|
2.5-125
|
|
|
Speed Settings
|
-
|
18
|
18
|
|
Worktable
|
Dimensions
|
mm
|
1600x1400
|
1800x1600
|
|
|
Max Load
|
kg
|
8000
|
10000
|
|
|
T-slot Size
|
mm
|
28
|
28
|
|
|
T-slot Count
|
一
|
9
|
11
|
|
Machining
Range
|
X-axis Max Travel
|
mm
|
1600
|
2000
|
|
|
Y-axis Max Travel
|
mm
|
1400
|
1800
|
|
|
Z-axis Max Travel
|
mm
|
2000
|
2000
|
|
|
W-axis Max Travel(Spindle)
|
mm
|
900
|
900
|
|
|
U-axis Max Travel(Facing Plate Slide)
|
mm
|
250
|
250
|
|
|
B-axis Rotary Angle
|
。
|
360
|
360
|
|
|
Min Distance Between Spindle Centerline and Worktable
|
mm
|
0
|
0
|
|
Feed
|
Rapid Traverse
|
mm/min
|
X/Y/Z/W:2500
|
X/Y/Z/W:2500
|
|
|
Feed range of axes for each spindle revolution
|
mm/rev
|
0.05-8/0.01-2
(X/Y/Z/W)
|
0.05-8/0.01-2
(X/Y/Z/W)
|
|
|
Speed Range (X)
|
mm/min
|
-
|
-
|
|
Accuracy
|
Linear Measurement Reading Accuracy (X/Y/Z-axis)
|
mm
|
0.005
|
0.005
|
|
|
Linear Measurement Reading Accuracy (B-axis)
|
。
|
0.001
|
0.001
|
|
General Specs
|
Dimensions(LxWxH)
|
mm
|
6995x3647x3442
|
7030x4665x3800
|
|
|
Machine Weight
|
kg
|
24000
|
28000
|
