Quick Details
-
Voltage:
-
220V/50Hz
-
Power:
-
120W
-
Dimension(L*W*H):
-
2160*670*2150mm
-
Weight:
-
450
-
Product name:
-
Short path distillation machine
-
Application:
-
oil distillation
-
Condenser:
-
Double Serpentine Tube
-
Feeding Rate:
-
10-60L/h
-
Film Forming System:
-
Scraper
-
Material:
-
Stainless Steel 304/316L
-
Motor:
-
120W
-
Evaporation area::
-
0.3m2
-
Features:
-
High Efficiency
-
Heating method:
-
Electricity Heating
Quick Details
-
Capacity:
-
0.5m2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CAREDDI
-
Voltage:
-
220V/50Hz
-
Power:
-
120W
-
Dimension(L*W*H):
-
2160*670*2150mm
-
Weight:
-
450
-
Product name:
-
Short path distillation machine
-
Application:
-
oil distillation
-
Condenser:
-
Double Serpentine Tube
-
Feeding Rate:
-
10-60L/h
-
Film Forming System:
-
Scraper
-
Material:
-
Stainless Steel 304/316L
-
Motor:
-
120W
-
Evaporation area::
-
0.3m2
-
Features:
-
High Efficiency
-
Heating method:
-
Electricity Heating
Product Description

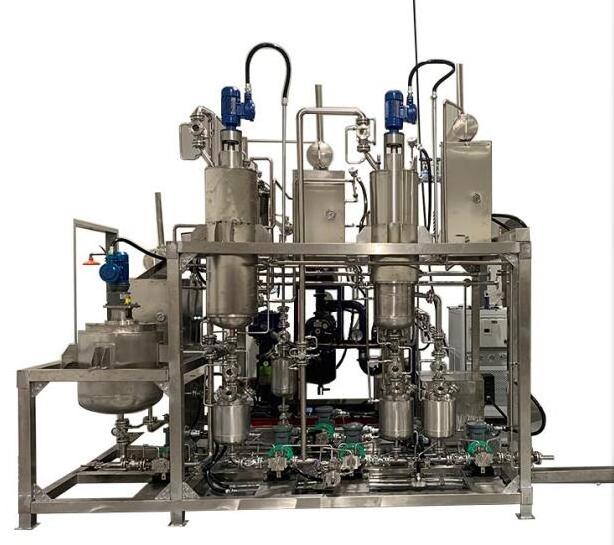

Stainless Steel Short Path Distillation Machine
Short path distillation/Molecular distillation is a special liquid-liquid separation technology, which is different from traditional distillation on the different boiling point.
This is a kind of distillation in high vacuum environment, for the difference of material molecular movement free path, was carried out in the heat sensitive material or high boiling point material distillation and purification process.
Short path distillation is mainly used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields.
Main data for short path distillation machine
|
SN.
|
Description
|
|
|
|
|||
|
1
|
Jacketed feeding vessel with sight glass
|
|
|
|
|||
|
2
|
Automatic and continuous feeding pump
|
|
|
|
|||
|
3
|
Motor to drive rotation with mechanical sealing or magnetic sealing
|
|
|
|
|||
|
4
|
Jacketed evaporator with internal condenser
|
|
|
|
|||
|
5
|
External condenser with sight glass
|
|
|
|
|||
|
6
|
Multifunction condenser (Both with dry ice cold trap and cooling coils condenser)
|
|
|
|
|||
|
7
|
Collection pump(Distillate)for automatic and continuous collection
|
|
|
|
|||
|
8
|
Collection pump (Residue) for automatic and continuous collection
|
|
|
|
|||
|
9
|
Full jacketed pipe (feeding and collection section)
|
|
|
|
|||
|
10
|
Control cabinet
|
|
|
|
|||
|
11
|
Heating circulator for feeding vessel and pipeline
|
|
|
|
|||
|
12
|
Heating circulator for jacketed evaporator
|
|
|
|
|||
|
13
|
Heating circulator for reside collection section
|
|
|
|
|||
|
14
|
Heating & cooling Circulator for internal condenser and distillate collection section
|
|
|
|
|||
|
15
|
Cooling circulator for external condenser
|
|
|
|
|||
|
16
|
Cooling circulator for multifunction condenser
|
|
|
|
|||
|
17
|
Rotary vane vacuum pump
|
|
|
|
|||
|
18
|
Molecular pump or Diffusion pump
|
|
|
|
|||
