Quick Details
-
Tube Length(ft):
-
2, 4, 5
-
Color Temperature(CCT):
-
3000-6500K, 3000-6500K
-
Lifespan (hours):
-
35000
-
Working Time (hours):
-
35000
-
Input Voltage(V):
-
200-240v
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
35000
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHZ
-
Model Number:
-
CHZ-SF02
-
Product name:
-
led tri-proof light fixture
-
LED Light Source:
-
SMD2835
-
street light led work humidity:
-
10%~90%
-
Power:
-
20W 30W 40W 50W 50W 60W
-
Light Size (mm):
-
600mm 1200mm 1500mm
-
led street light lifespan:
-
35000 hours
-
Certification:
-
CE RoHS LVD
Quick Details
-
Warranty(Years):
-
3
-
Lamp Luminous Efficiency(lm/w):
-
130, 130
-
Lamp Body Material:
-
PC
-
Tube Length(ft):
-
2, 4, 5
-
Color Temperature(CCT):
-
3000-6500K, 3000-6500K
-
Lifespan (hours):
-
35000
-
Working Time (hours):
-
35000
-
Input Voltage(V):
-
200-240v
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
35000
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHZ
-
Model Number:
-
CHZ-SF02
-
Product name:
-
led tri-proof light fixture
-
LED Light Source:
-
SMD2835
-
street light led work humidity:
-
10%~90%
-
Power:
-
20W 30W 40W 50W 50W 60W
-
Light Size (mm):
-
600mm 1200mm 1500mm
-
led street light lifespan:
-
35000 hours
-
Certification:
-
CE RoHS LVD

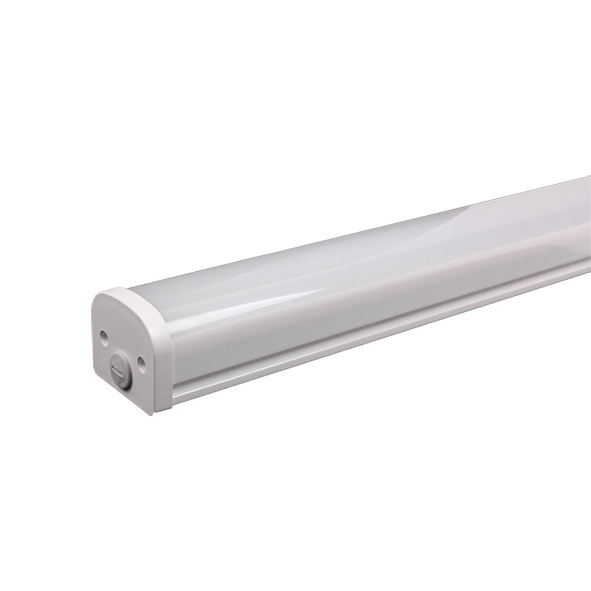

1.2m 1.5m 0.6m ceiling batten 18w 36w 60w led triproof linear light factory ip65 fixture
Technical parameters of tri-proof light:
|
Product number |
SF02-600-20W |
SF02-600-30W |
SF02-1200-40W |
SF02-1200-50W |
SF02-1500-50W |
SF02-1500-60W |
|
Rated power |
20W |
30W |
40W |
50W |
50W |
60W |
|
Lamp body length |
60cm |
60cm |
120cm |
1200m |
150cm |
150cm |
|
Lamp bead model |
SMD2835 |
SMD2835 |
SMD2835 |
SMD2835 |
SMD2835 |
SMD2835 |
|
Number of lamp beads |
120 PCS |
120 PCS |
240 PCS |
240 PCS |
288 PCS |
288 PCS |
|
Serial and parallel |
10P12S |
10P12S |
20P12S |
20P12S |
24P12S |
24P12S |
|
Protection level |
IP65 |
|||||
|
Drive brand |
BOKE/LFD |
|||||
|
Operating Voltage |
200~240VAC |
|||||
|
Light source voltage |
36V |
|||||
|
Drive function |
Conventional non-dimming/1-10V dimming/DALI dimming, optional |
|||||
|
Color temperature CCT |
3000~6500K |
|||||
|
Color rendering CRI |
>80 |
|||||
|
Luminous flux |
>130 lm/W |
|||||
|
Beam angle |
120° |
|||||
|
Lamp body size |
L600*W74*H64(mm) |
L600*W74*H64(mm) |
L1200*W74*H64(mm) |
L1200*W74*H64(mm) |
L1500*W74*H64(mm) |
L1500*W74*H64(mm) |
|
Lamp body material |
Whole PC material injection molding |
|||||
|
Lampshade material |
High light transmission PC cover, milky white/transparent optional |
|||||
|
Service life/warranty period |
35000hrs / 3 years |
|||||
|
certified product |
TUV/CB/ROHS/ISO9001 |
|||||
P ayment:
1. Payment method: wire transfer, sight letter of credit, Western Union remittance, Alipay
2. Samples can be delivered within 5-7 working days; Order: 10-20 days
3. Quote shipping according to your requirements
4. Freight Port: Shanghai, China
5. Offer discounts based on order quantity
