Quick Details
-
Transmission distance:
-
maximum 400m
-
Baud rate:
-
9600,8,1,0,0
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Onboard:
-
ESP8266 WIFI module
-
The Way to work:
-
Mobile phone is equipped with WiFi module
-
Transmission distance:
-
maximum 400m
-
Baud rate:
-
9600,8,1,0,0

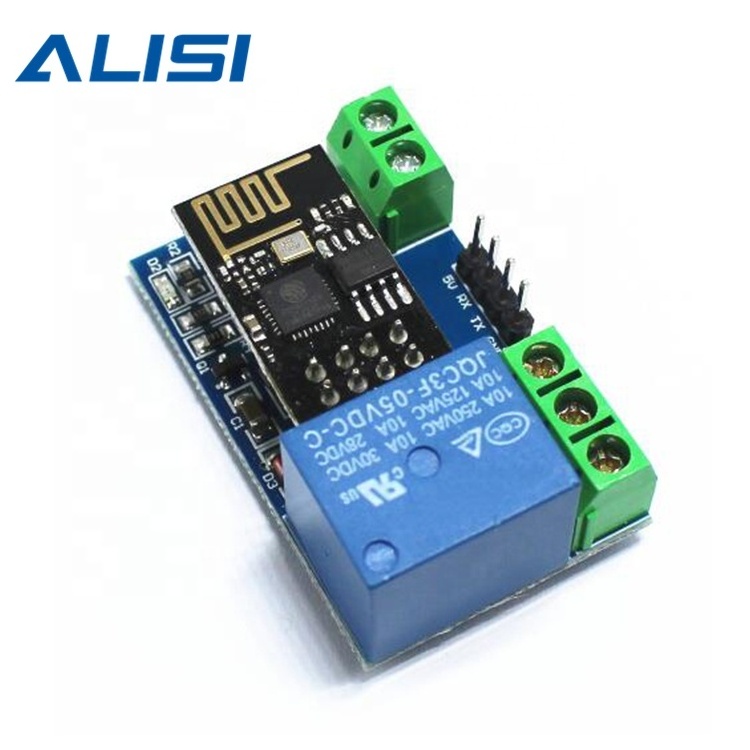

| Product Name | ESP8266 5V WiFi Relay Smart Home Remote Control Switch |
| Onboard |
ESP8266 WIFI module |
| The Way to work | Mobile phone is equipped with WiFi module |
| Transmission distance | maximum 400m |
| Baud rate | 9600,8,1,0,0 |
The onboard ESP8266 WIFI module has three working modes: STA (client), AP (hotspot) and STA+AP (client + hotspot). The corresponding WIFI module working mode is selected according to the working mode of the module.
Before use, the serial debugging software and USB to TTL module should be used to send serial port instructions to configure the WIFI module (do not power off after the configuration is completed, because some parameters of the WIF1 module cannot be saved after power off). After the network connection is established between the mobile phone and the WIFI module, the mobile phone APP can be used to control the relay.
