Quick Details
-
Power:
-
100KW
-
Dimension(L*W*H):
-
35*5*1.5m
-
Weight (KG):
-
2000
-
Production speed the production line:
-
120-160/min
-
Total weight:
-
12500kgs
-
Loading:
-
1*40'container
-
Production area take:
-
35*5m
-
Mold life time:
-
32000tons
-
Easy broken part:
-
Location mold
-
main motor:
-
75KW
-
cutting power:
-
7,5kw
-
H type rebarcollection power:
-
22kw
-
rebar feeder power:
-
0.75kw
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HBFL
-
Voltage:
-
customized
-
Power:
-
100KW
-
Dimension(L*W*H):
-
35*5*1.5m
-
Weight (KG):
-
2000
-
Production speed the production line:
-
120-160/min
-
Total weight:
-
12500kgs
-
Loading:
-
1*40'container
-
Production area take:
-
35*5m
-
Mold life time:
-
32000tons
-
Easy broken part:
-
Location mold
-
main motor:
-
75KW
-
cutting power:
-
7,5kw
-
H type rebarcollection power:
-
22kw
-
rebar feeder power:
-
0.75kw

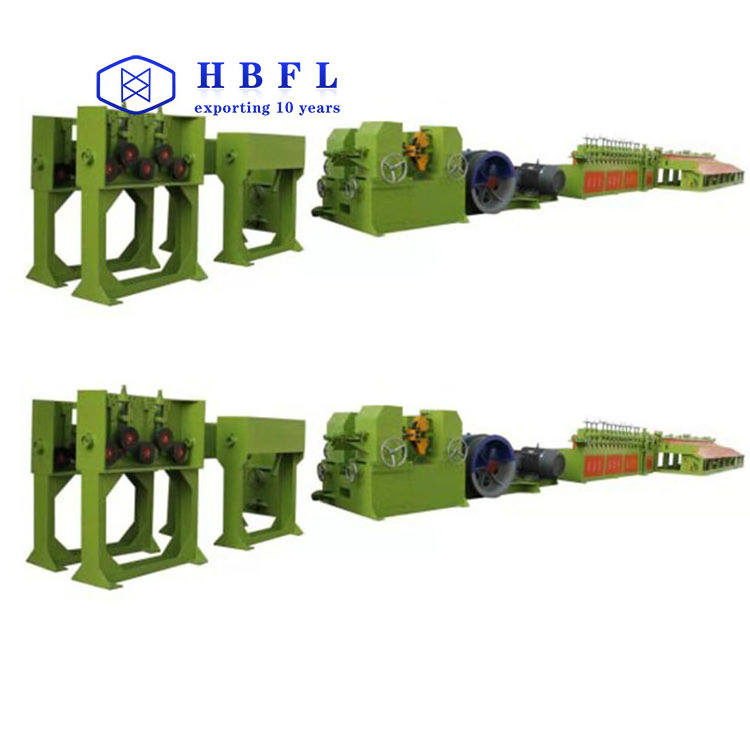

Best Quality Price Standard Cold Used Making Steel Bar Rebar Rib Peeling Parallel Thread Rolling Machine
|
Picture |
Specification |
|
|
Pay off sand Size:1000*500*1400mm Weight:800kg |
|
|
Wire inner box Size:800*800*1600mm Weigh:160kg |
|
|
· Five wheel chromium steel dephosphorizer Size:1300*350*1200mm Weight:480kg
·
|
|
|
Lubrication machine Size:800*300*1000mm Weight:140kg |
|
|
Butter welding machine Size:200*300*1000mm Weight:120kg |
|
|
First ribbed machine Size:600*600*1200mm Weight:540kg Rebar reducer:0-1mm
|
|
|
Main ribbed machine Rebar reducer:0-1mm Size:2700*700*2400mm Weight:3500kg Power:75kw Zsy250 Hard tooth surface reducer Carbide roller
|
|
|
|
|
|
Straightening machine Size:2300*500*1100mm Weight:1100kg
|
|
|
Cutter machine Size:600*700*1100mm Weight:620kg Power:7.5kw servo motor Error range:± 2mm
|
|
|
H type wire collection Size:2500*2300*1400mm Weight:2600kg Load:3000kgs wire Power:22kw
|
|
|
Control cabinet Size:1300*700*1400mm Weight:420kg Brand :Delixi |
|
|
Rebar feeder Size:800*500*700mm Weight:85kg Power:0.75kw
|
|
|
Wire collection for straight and cut rebar Size:9000mm*1200*1100mm Weight:300kg
|
|
Production speed the production line |
120-160/min |
|
Total weight |
12500kgs |
|
Loading |
1*40 ’ container |
|
Production area take |
35*5m |
|
Production capacity Input 9mm output 7.5mm |
0.347*150*60=3123kgs/hour |
|
Mold life time |
32000tons |
|
Easy broken part |
Location mold Wheel for phosphorous removal
Rebar diameter reducer wheel Cutter Straight wheel |
