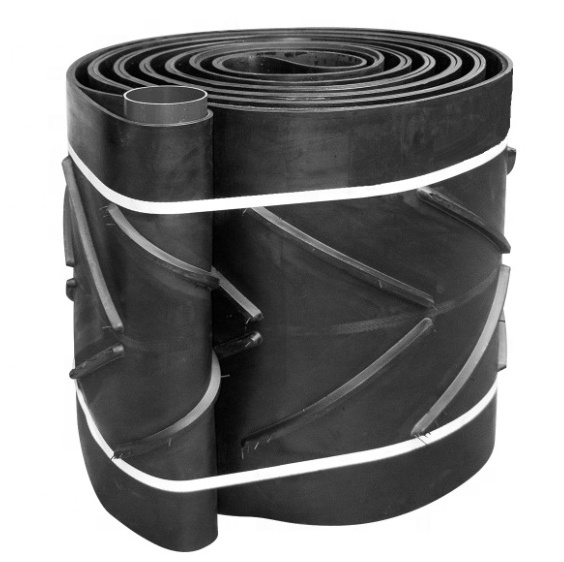

Vulcanized spliced endless chevron pattern rubber conveyor belt
Rubber conveyor belts with smooth surface are normally limited to applications of no more than 15-18º angle. Steeper angles call for belts with cleated or ribbed surfaces that prevent bulk material or unit loads from sliding backward.
Different types chevron pattern conveyor belt is composed of the chevron patterned working side and the flat plain non-working side.
Features of chevron patterned conveyor belt:
1.belt core material:cotton canvas(CC),nylon(NN) canvas,polyester(EP) canvas.
2.belt width:300-1600mm
3.number of fabric layer:2-8 ply
4.thickness of cover rubber:working side:1.5-7.0mm,non-working side:1.5-4.5mm.
5.height of the stripes:5mm.10mm,15mm,20mm.also can be designed according to customer's deferent acquirements.
6.usages:suitable for conveying materials at angle 0-40°, prevent materials from sliding down.
7.low power consumption,high working efficiency
shapes of the patterns:
chervon/herringbone,stripes,granulous,fan-shaped,etc.also can be made by customer's design.
Because of the difference of the materials and the transporting inclination angle, the shape and height (depth) requirements of the pattern is also different.
Usage of chevron pattern conveyor belt:
It is suitable for conveying bulk materials at large inclination angles,it can prevent materials from slipping down efficiently.
it is widely applied to the industries including ports, metallurgy, mining,thermal power plant,steel mills,hydroelectric station construction site, coal mine, foundry, casting, paper making, lumbering, coking, building materials,stone processing plant, agriculturer, fertilizer or chemical factory and other bulk materials handling areas.
It can conveying many kinds of bulk materials,such as coal,sand,cement clinker,concrete,sinter,carbon coke,iron and steel casting,cinder,metal powder,slag,gravel,wood chip,iron ore,cereal,etc.
Specifications and technical datas of chevron pattern conveyor belt:
| carcass material | fabric type |
single fabric thickness
(mm/ply) |
single fabric strength
(N/mm) |
Number of fabric piles |
Cover rubber thickness
(mm) |
belt width
(mm) |
belt length
(m) |
|
| upper | bottom | |||||||
| Cotton Canvas (CC) | CC-56 | 1.10 | 56 | 2-10 | 2.0-8.0 | 0-4.5 | 400-2500 | ≤400 |
| Polyester Cotton (TC) | TC-70 | 1.00 | 70 | 2-10 | 1.5-8.0 | 0-4.5 | 400-2500 | ≤400 |
| Nylon (NN) | NN100 | 0.75 | 100 | 2-10 | 1.5-8.0 | 0-4.5 | 400-2500 | ≤400 |
| NN150 | 0.80 | 150 | ||||||
| NN200 | 0.90 | 200 | 500-2500 | |||||
| NN250 | 1.15 | 250 | ||||||
| NN300 | 1.25 | 300 | 2-6 | |||||
| NN400 | 1.45 | 400 | 800-2500 | |||||
| NN500 | 1.55 | 500 | ||||||
| Polyester (EP) | EP100 | 0.80 | 100 | 2-10 | 1.5-8.0 | 0-4.5 | 400-2500 | ≤400 |
| EP125 | 0.85 | 120 | ||||||
| EP150 | 0.90 | 150 | ||||||
| EP200 | 1.05 | 200 | 500-2500 | |||||
| EP250 | 1.25 | 250 | ||||||
| EP300 | 1.35 | 300 | 2-6 | |||||
| EP350 | 1.50 | 350 | 600-2500 | |||||
| EP400 | 1.80 | 400 | ||||||
| EP500 | 2.00 | 500 | ||||||
Interlaminar bonding strength:
| Item | between the fabric layers | between cover and belt carcass | |||||
| cover thickness 0.8-1.5mm | cover thickness>1.5mm | ||||||
| average value of all samples,N/mm≥ | 4.5 | 3.2 | 3.5 | ||||
| lowest peak value of all samples,N/mm≥ | 3.9 | 2.4 | 2.9 | ||||
| Remark:highest peak value of all samples shall not exceed 20N/mm | |||||||
We can also produce international standard chevron pattern conveyor belt as below specifications, DIN22102,AS1332,BS490,RMA,JISK6322,SANS1173,etc.
Hebei Ssangyong Rubber Co.,Ltd. workshop
Safety certificate of approval for mining products and Certificate of ISO9001:2008 Standard:
With strong technology strength, advanced production technique and complete inspection equipments, our company manufactures qualified products up to national and international standards.Depending on the strict management system and consummate After-sales service system,we provide our customers with high quality and low price conveyor belts,also a warm service.
conveyor belt catalogue of our company:
ordinary type for general usage
solid woven flame retardant type
heat/cold resistant type
abrasion resistant type
oil resistant type
chemical resistant type
polyester(EP) core type
nylon(NN) core type
cotton canvas(CC) core type
corrugated sidewall type
circular/annular type
patterned type
chervon/herringbone type
Samples can be customized according to buyer's requirements and free samples can be sent for evaluations.
Any inquiry of vulcanized spliced endless chevron pattern rubber conveyor belt,please feel free to contact us.
