External protection
Resistant to transient temperature differences for reliable use in harsh environments.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
GS01-EAP
-
Protection Level:
-
IP67, IP67
-
Operating Temperature:
-
-25~55, -20-60℃
-
Max. Current:
-
3A, 3A
-
Certification:
-
CE, CE
-
Rating Load:
-
3A 240VAC, 3A 30VDC
-
Housing Material:
-
Reinforced plastic shell
-
Outlet Hole cable gland:
-
M20, PG13.5
-
Contact Forms:
-
1NC+1NC, 2NC, 2NC/1NO, 3NC+2NC/1NO
-
Shelf life:
-
Three years
Quick Details
-
Max. Voltage:
-
250V, 240VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KLYT
-
Model Number:
-
GS01-EAP
-
Protection Level:
-
IP67, IP67
-
Operating Temperature:
-
-25~55, -20-60℃
-
Max. Current:
-
3A, 3A
-
Certification:
-
CE, CE
-
Rating Load:
-
3A 240VAC, 3A 30VDC
-
Housing Material:
-
Reinforced plastic shell
-
Outlet Hole cable gland:
-
M20, PG13.5
-
Contact Forms:
-
1NC+1NC, 2NC, 2NC/1NO, 3NC+2NC/1NO
-
Shelf life:
-
Three years
Welcome to KLYT

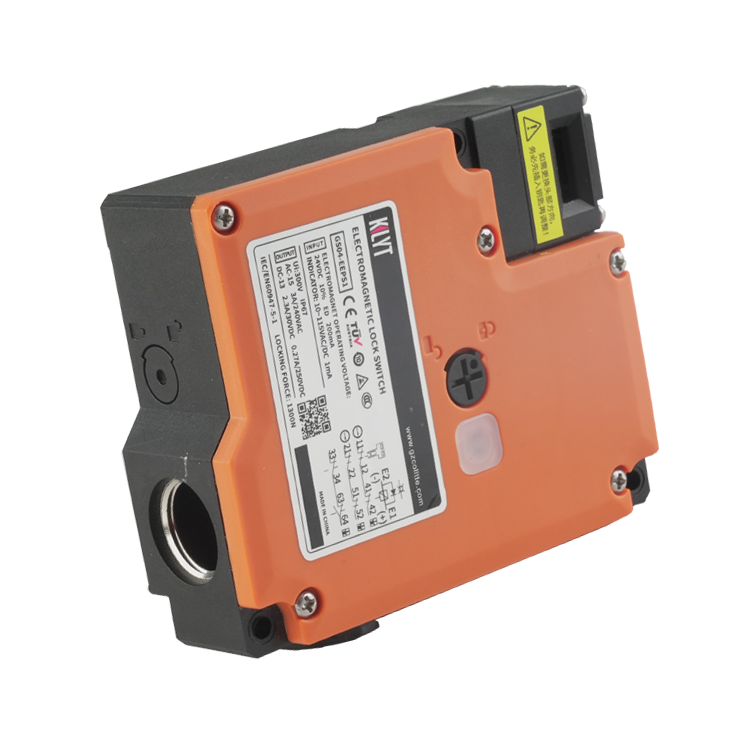

Electromagnetic locking safety door switch 1NO1NC 3A 240VAC IP67 with key
Features:
1.Reinforced plastic shell, oil-proof, and waterproof.2.Multiple sets of gold-plated silver contact combination,flexible configuration.
3.High Locking force,up to 1300n.
4.The indicator light indicatses the working status,configure the emergency unlock function.
5. Equipped with 6 types operation keys.
6.Opening and protection devices for safety doors in the industrial field.
Features:
1.Reinforced plastic shell, oil-proof, and waterproof.2.Multiple sets of gold-plated silver contact combination,flexible configuration.
3.High Locking force,up to 1300n.
4.The indicator light indicatses the working status,configure the emergency unlock function.
5. Equipped with 6 types operation keys.
6.Opening and protection devices for safety doors in the industrial field.
7.
Shelf life: 3 years
|
Model number
|
GS01-EAP
|
Certification
|
|
CE
|
|
|
Operating Temperature
|
-20-60℃
|
Operating ambient temperature
|
|
－25℃～＋55℃
|
|
|
Reaction time
|
3A 240VAC, 3A 30VDC
|
Withstand voltage
|
|
AC 1000 V 1 minute
|
|
|
Outlet Hole cable gland
|
M20, PG13.5
|
material
|
|
Housing Material
|
|
|
Max. Current
|
3A
|
Max. Voltage
|
|
240VAC
|
|
|
Contact Forms
|
1NC+1NC, 2NC, 2NC/1NO, 3NC+2NC/1NO
|
Mechanical Life
|
|
1,000,000 times above
|
|
Resistant to transient temperature differences for reliable use in harsh environments.
Advanced production technology
SMT automatic film production process, better consistency Strict process management All processes are in strict accordance with the standard documents to implement the ISO9001 management measures.
Exterthe circuit line protection function
Short circuit protection Ability to resist transient electric pulse and anti-surge capability Anti-strong magnetic interference capability Impact current capability.
Details Images
Certifications
Company Introduction
Guangzhou Yanbei Technology Co., Ltd
Established in 2008, dedicated to the manufacturing of electronic components, sales of electronic products, wholesale and retail
of electronic components, production and research and development. Our products are widely used in the industrial sector for
safety distance measurements, providing customers with standardized and customized industrial automation safety equipment.
of electronic components, production and research and development. Our products are widely used in the industrial sector for
safety distance measurements, providing customers with standardized and customized industrial automation safety equipment.
FAQ
Q1: Can I customize a special sensor?
A1: Sure, we also offer customized services.
Q2: Can I get a lower price if order large quantities?
A2: Yes, Cheaper prices with bigger size orders, please contact us and we willgive you a quatation.
Q3: IfIneed a sample for pretest, do y"3u sale sample for this inquiry?
A3: Yes, we can sale sample for pretest. If you need t, please contact us.
Q4: When will you ship my order?
A4: 48 hours shipping guarantee for stock items and 10-15 days for non-stock? п15items.
