Quick Details
-
Dimension(L*W*H):
-
7500*4680*13900 m
-
Weight:
-
32 KG
-
Drilling Diameter:
-
N/A
-
Product name:
-

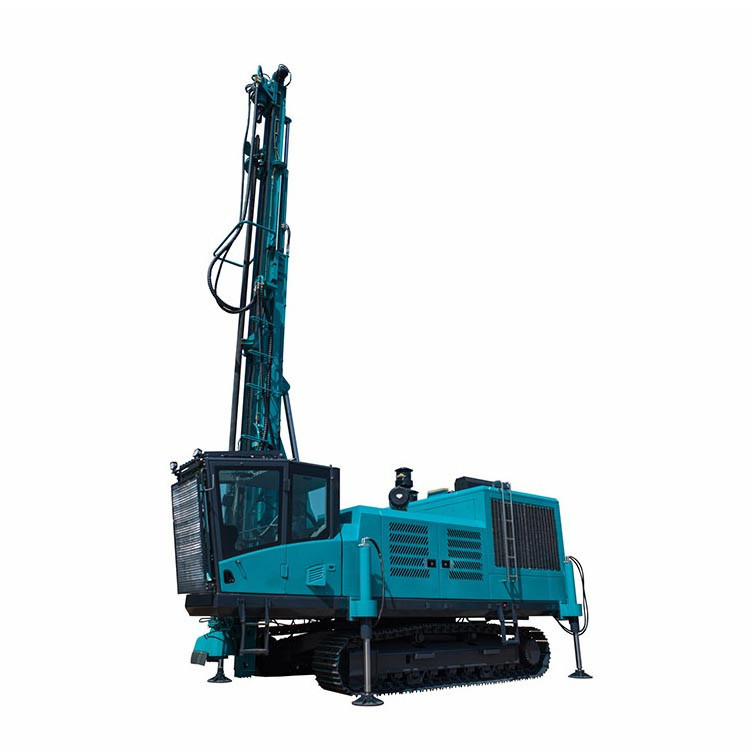

Top hammer drill rig
-
Custom:
-
Accept
-
Hole diameter(mm):
-
230-270
-
Quality:
-
High
-
Hole depth(m):
-
30
-
Model:
-
QSB4.5
-
Rod diameter(mm):
-
146
-
Rod length(m):
-
10m*3
-
Working pressure(Bar):
-
20.7
-
Power(kW/rpm):
-
336/1850
Quick Details
-
Type:
-
Elevated down-the-hole drilling rig Hybrid
-
Place of Origin:
-
China
-
Brand Name:
-
D Miningwell
-
Dimension(L*W*H):
-
7500*4680*13900 m
-
Weight:
-
32 KG
-
Drilling Diameter:
-
N/A
-
Product name:
-
Top hammer drill rig
-
Custom:
-
Accept
-
Hole diameter(mm):
-
230-270
-
Quality:
-
High
-
Hole depth(m):
-
30
-
Model:
-
QSB4.5
-
Rod diameter(mm):
-
146
-
Rod length(m):
-
10m*3
-
Working pressure(Bar):
-
20.7
-
Power(kW/rpm):
-
336/1850
| Technical parameters of Overhead integrated DTH drill rig | ||||
| Model | SWDB138 | SWDB165A | SWDB200A | SWDB250 |
| OPERATION PARAMETER | ||||
| Hole diameter(mm) | 138-165 | 138-180 | 180-255 | 230-270 |
| Hole depth(m) | 25 | 25 | 30 | 30 |
| Rod diameter(mm) | 102/114 | 114 | 146 | 146 |
| Rod length(m) | 8.5m*3 | 8.5m*3 | 10m*3 | 10m*3 |
| Hammer size | 5", 6" | 5", 6" | 6", 8" | 8", 9" |
| Dust collector | Dry type(Standard) / Wet type(Optional) | |||
| AIR COMPRESSOR | ||||
| Working pressure(Bar) | 2 | 2 | 2.07 | 20.7 |
| Air displacement(m3/min) | 18.6 | 24.1 | 30.3 | 34 |
| Power(kW/rpm) | 194/1800 | 262.5/1900 | 328/1800 | 336/1850 |
| ENGINE | ||||
| Model | Cummins QSB4.5 | Cummins QSB4.5 | Cummins QSB4.5 | Cummins QSB4.5 |
| Power(kW/rpm) | 97/2200 | 97/2200 | 97/2200 | 97/2200 |
| Fuel tank capacity(L) | 1200 | 1200 | 1200 | 1200 |
| FEED | ||||
| Feed beam length(mm) | 11500 | 11500 | 13200 | 13200 |
| Feed Stroke(mm) | 9000 | 9000 | 10500 | 10500 |
| Feed extension(mm) | 1800 | 1800 | 1800 | 1800 |
| Feed rate.Max(m/s) | 0.8 | 0.8 | 0.8 | 0.8 |
| Feed force.Max(kN) | 60 | 60 | 75 | 75 |
| Forward tilting angle(°) | 90 | 90 | 90 | 90 |
| TRAVEL CAPACITY | ||||
| Travel speed(km/h) | 3.2 | 3.2 | 2.8 | 2.8 |
| Traction force,MaxkN) | 125 | 125 | 175 | 175 |
| Gradeability(°) | 25 | 25 | 25 | 25 |
| Ground clearance(mm) | 480 | 480 | 480 | 480 |
| ROTARY | ||||
| Rotary speed(rpm) | 105 | 105 | 50 | 50 |
| Rotary torque(Nm) | 4500 | 5500 | 6000 | 6620 |
| DIAMENSION | ||||
| Gross weight(T) | 22 | 28 | 30 | 32 |
| L*W*H Working(mm) | 7100*4180*12000 | 7500*4650*12000 | 7500*4680*13800 | 7500*4680*13900 |
| L*W*H Transportation(mm) | 12000*3200*3200 | 12000*3350*3400 | 13800*3350*3400 | 13900*3350*3450 |
Q1 : Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2 : Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3 : Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4 : What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5 : How can I place the order?
A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6 : When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
