Insulation protection of the end or middle connections of wire and cable with 10kV or below on the environment
temperature between -10oC ~ 80oC, insulative sealing for communications cable connections,pipeline protection,
remedy and sealing.
1.Clean adequately the surface of the object
2.Stretching it about twice the length with the adhesive side inside
3.Wind the tape half-lapped without getting wrinkled
4.Take care not to stretch it too tightly at the end of lapping
5.Cut the tape using scissors or knife, then press it enough
6.Where tape may be subject to abrasion or exposure to weather an external covering with
a high quality PVC tape is recommended.
- Product Details
- {{item.text}}
Quick Details
-
Design Printing:
-
Offer Printing
-
Material:
-
EPR
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
QJC
-
Model Number:
-
XFWQ550
-
Thickness:
-
0.76mm, 0.5mm,0.76mm,0.8mm
-
Product name:
-
High Voltage Self-fusing Rubber Tape
-
Length:
-
5m,9.1m or customized
-
Sample:
-
Sample Avaliable
-
release film:
-
white black reticular pvc transparent
-
Tensile strength:
-
Excellent, 180%-700%
-
Usage:
-
Wire insulation, waterproof, sealing, repair
-
Application:
-
Electrical insulation below 6KV; Wire and cable binding
-
Color:
-
WHITE BLACK
Quick Details
-
Adhesive:
-
Rubber
-
Adhesive Side:
-
Double Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
Offer Printing
-
Material:
-
EPR
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
QJC
-
Model Number:
-
XFWQ550
-
Thickness:
-
0.76mm, 0.5mm,0.76mm,0.8mm
-
Product name:
-
High Voltage Self-fusing Rubber Tape
-
Length:
-
5m,9.1m or customized
-
Sample:
-
Sample Avaliable
-
release film:
-
white black reticular pvc transparent
-
Tensile strength:
-
Excellent, 180%-700%
-
Usage:
-
Wire insulation, waterproof, sealing, repair
-
Application:
-
Electrical insulation below 6KV; Wire and cable binding
-
Color:
-
WHITE BLACK
Product Description
We have very strict QC standard. All of our products have passed 48 hours test
assure 100% quality to our customers.

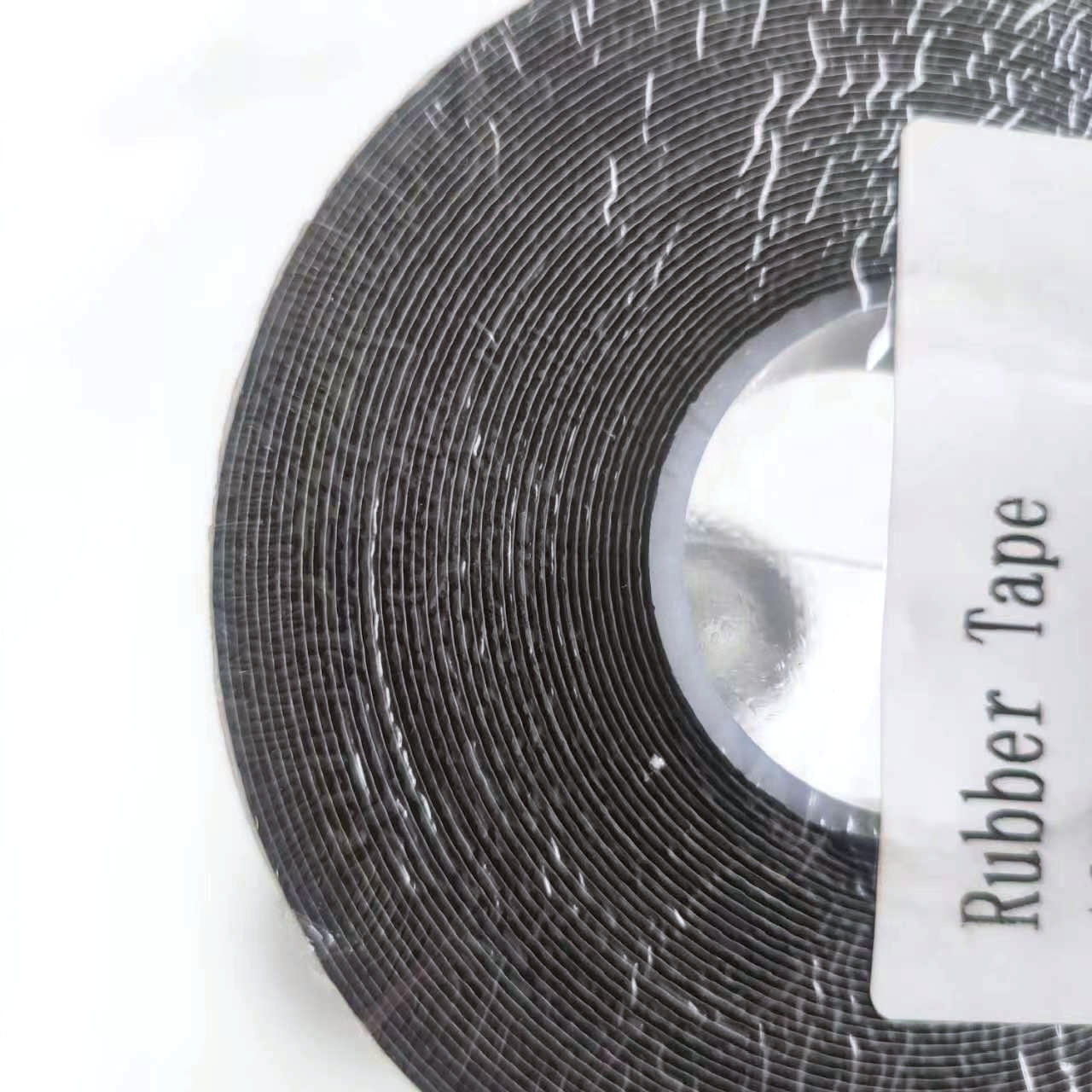

EPR High Voltage Rubber Fusing Tape rubber self amalgamating tape
Description:
This tape is an ethylene propylene rubber (EPR) based high voltage tape possessing excellent electrical, chemical and physical
properties. it is a self-amalgamating tape that maintains a tight insulation build-up for void free electrical stably and
permanent resistance to moisture penetration. Compatible with all extruded dielectric cable insulation.
Description:
This tape is an ethylene propylene rubber (EPR) based high voltage tape possessing excellent electrical, chemical and physical
properties. it is a self-amalgamating tape that maintains a tight insulation build-up for void free electrical stably and
permanent resistance to moisture penetration. Compatible with all extruded dielectric cable insulation.
|
Product name
|
High voltage insulation black waterproof self-adhesive tape sealing rubber electrical insulation tape
|
|
|
|
|||
|
Usage
|
Mainly used for insulation and waterproofing of wire and cable joints,
also used for pipeline protection, repair, sealing
|
|
|
|
|||
|
Application
|
High Voltage Protection
|
|
|
|
|||
|
Advantage
|
Waterproof Performance; excellent elasticity
|
|
|
|
|||
|
Keywords
|
Self-Fusing/Amalgamating tape
|
|
|
|
|||
|
Color
|
Black , White or customized
|
|
|
|
|||
|
OEM
|
Accptable
|
|
|
|
|||
|
Adhesive
|
Rubber
|
|
|
|
|||
|
Adhesive Side
|
Single Sided
|
|
|
|
|||
|
Adhesive Type
|
Pressure Sensitive
|
|
|
|
|||
Professional Manufacturer High Voltage Insulating Self Fusing Epr Rubber Tape
Self Amalgamating Insulation Tape
PRODUCT BENEFITS
1:Excellent physical and electrical properties with a high degree of stability under conditions of use.
2:The tape amalgamates rapidly when applied under tension to provide a void-free homogeneous wrapping,without the need for external heat or pressure.
3:Compatible with a wide range of rubber and plastic dielectric cable insulation.
4:The tape will remove cleanly when cut, allowing it to be used as temporary insulation or protection.
5:The tape should be protected by anti-ultraviolet material during using.
6:Service temperature -20 to +75°C.
7:Supplied in an easy to handle and apply tape form. The product is interleaved with a disposable plastic liner.
1:Excellent physical and electrical properties with a high degree of stability under conditions of use.
2:The tape amalgamates rapidly when applied under tension to provide a void-free homogeneous wrapping,without the need for external heat or pressure.
3:Compatible with a wide range of rubber and plastic dielectric cable insulation.
4:The tape will remove cleanly when cut, allowing it to be used as temporary insulation or protection.
5:The tape should be protected by anti-ultraviolet material during using.
6:Service temperature -20 to +75°C.
7:Supplied in an easy to handle and apply tape form. The product is interleaved with a disposable plastic liner.
Application
Recommended Uses:
1.Primary electrical insulation for splicing cable from 600V to 69KV on all solid dielectric cables;
2. primary insulation for building stress cones on cables up to 35KV on all solid dielectric cable;
3.jacket on high-voltage splices and terminations; 4.Moisture sealing electrical connections;
5.bus bar insulation.
1.Primary electrical insulation for splicing cable from 600V to 69KV on all solid dielectric cables;
2. primary insulation for building stress cones on cables up to 35KV on all solid dielectric cable;
3.jacket on high-voltage splices and terminations; 4.Moisture sealing electrical connections;
5.bus bar insulation.
Use Method
Usage:
Packing & Delivery
One roll one plastic bag with a small box, 120 rolls/carton
Or as your request
Lead time: 7~20 days depend on your qty
Delivery: 1. Door to door: by DHL, FedEx, Ups
2. Our factory to your airport: air shipping
3. Our factory to your seaport: sea shipping
Shipping for tape:
By Express,such as DHL,UPS,FEDEX
By sea,by air
