Quick Details
-
Place of Origin:
-
France
-
Brand Name:
-
APEM
-
Model Number:
-
ILP3FAD2X1242
-
Initial contact resistance:
-
50 mΩ max.
-
Insulation resistance:
-
1 GΩ
-
Dielectric strength:
-
1,000 V
-
Total travel:
-
1.7 mm
-
Panel thickness:
-
10 mm (.393) max
-
Typical operating force:
-
4 N +/- 2 N
-
ELECTRICAL FUNCTION:
-
Normally open (NO) SPST
-
CONTACTS:
-
Silver, gold plated
-
Operating temperature:
-
-40 °C to +85 °C
-
Mounting Hole Size:
-
13.6 mm dia.
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
2A
-
Max. Voltage:
-
24V
-
Place of Origin:
-
France
-
Brand Name:
-
APEM
-
Model Number:
-
ILP3FAD2X1242
-
Initial contact resistance:
-
50 mΩ max.
-
Insulation resistance:
-
1 GΩ
-
Dielectric strength:
-
1,000 V
-
Total travel:
-
1.7 mm
-
Panel thickness:
-
10 mm (.393) max
-
Typical operating force:
-
4 N +/- 2 N
-
ELECTRICAL FUNCTION:
-
Normally open (NO) SPST
-
CONTACTS:
-
Silver, gold plated
-
Operating temperature:
-
-40 °C to +85 °C
-
Mounting Hole Size:
-
13.6 mm dia.
-
Certification:
-
CE

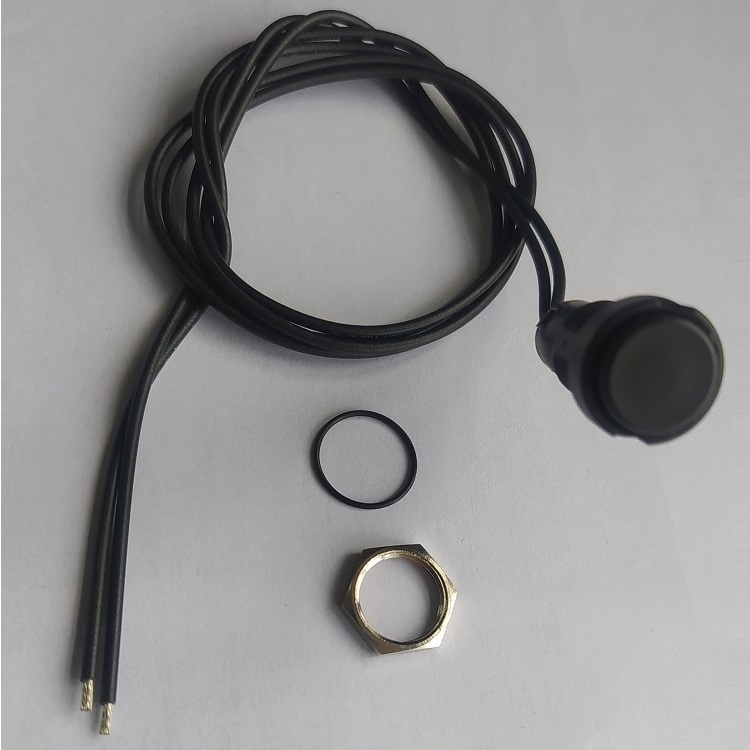

Apem thick panel long bushing Sealed pushbutton switch 12mm momentary push button ILP3FAD2X1242
Distinctive features and specifications
Momentary pushbuttons for thick panels
Illuminated or non-illuminated
Tactile feedback
Flat round actuator for optional marking
Sealed to IP67 (standard models only)
front mounting
Max. current/voltage rating with resistive load :
2A 24VDC, 200.000 cycles
General specification
Mounting Hole Size : 13.6 mm dia.
Panel thickness: 1.50 mm (.059) min. 10 mm (.393) max.
Total travel: 1.7 mm (.067) +/- 0.3 mm
Typical operating force: 4 N +/- 2 N
Low level or mechanical life: 1,000,000 cycles
Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248
Soldering: 300 °C max. for 3 seconds
Environmental specifications
Front panel sealing according to IEC 60529: IP67 (standard models) IP54 (options X1242 and 234)
Shock resistance: 100 g according to IEC 512-4, test 6c
Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d
Salt spray: IEC 512-6, test 11f
Operating temperature: -40 °C to +85 °C (-40°F to 185°F)
Electrical specifications
Max. current/voltage rating with resistive load: 2 A 24 VDC, 200,000 cycles
Initial contact resistance: 50 mΩ max.
Insulation resistance: 1 GΩ min. at 500 VDC
Dielectric strength: 1,000 Vrms
Materials
Case: thermoplastic UL94-V0
Actuator: polyamide 6/6
Bushing/bezel: polyamide 6/6
Contacts: silver, gold plated
Terminal seal: epoxy
ILP3FAD2X1242
ACTUATOR SHAPES P : Round, flat
ELECTRICAL FUNCTION 3 : Normally open (NO)
TERMINALS F : Flying leads
CONTACTS AD : Silver, gold plated
ACTUATOR COLORS 2 : Black
Non-illuminated
BEZEL OPTIONS X1242 : Reduced bezel, front mounting
