Quick Details
-
Screen Size:
-
4-inch
-
Weight:
-
260g, 256g
-
Model Number:
-
MC62
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Cortex-A53 2.0 GHz Octa-core
-
RAM+ROM:
-
3GB + 32GB
-
Communication:
-
WIFI, 4G,GPS
-
Keyboard:
-
Main keypad , 2 scan keys, multi-function keys
-
Display:
-
5.7-inch (18:9), IPS LTPS 1440 x 720
-
Battery capacity:
-
3.8V, 5000 mAh
-
Communication interface:
-
Type-C USB , OTG,POGO Pin
-
Data collection:
-
2D barcode and NFC
-
OS:
-
Android 13
Quick Details
-
Operating System:
-
Android OS
-
Style:
-
Handheld Computer
-
Memory Capacity:
-
3G/32G
-
Screen Size:
-
4-inch
-
Weight:
-
260g, 256g
-
Model Number:
-
MC62
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Cortex-A53 2.0 GHz Octa-core
-
RAM+ROM:
-
3GB + 32GB
-
Communication:
-
WIFI, 4G,GPS
-
Keyboard:
-
Main keypad , 2 scan keys, multi-function keys
-
Display:
-
5.7-inch (18:9), IPS LTPS 1440 x 720
-
Battery capacity:
-
3.8V, 5000 mAh
-
Communication interface:
-
Type-C USB , OTG,POGO Pin
-
Data collection:
-
2D barcode and NFC
-
OS:
-
Android 13

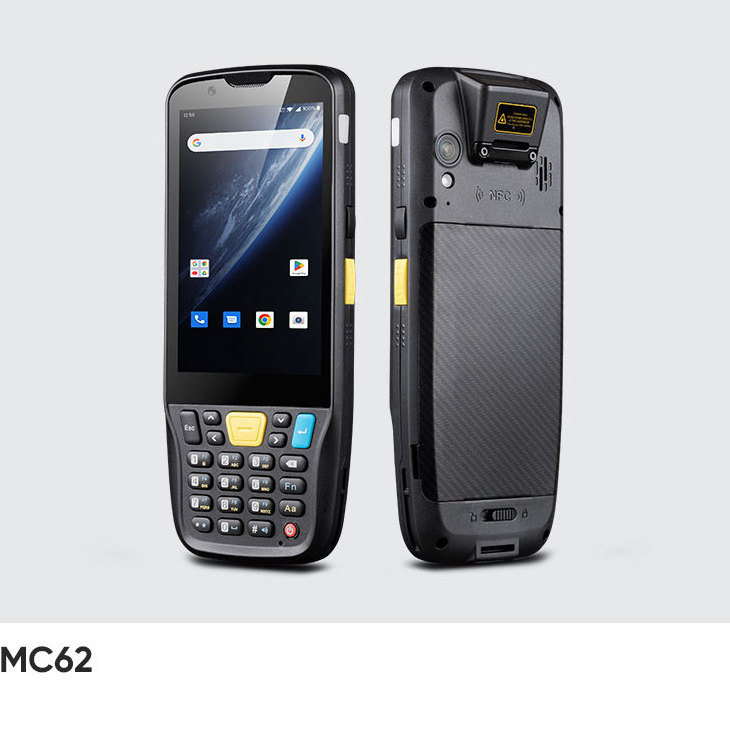

Android 13 Flexible Keyboard Stronger Protection Level Battery Life Chainway MC62 QR 2D barcode scanner NFC PDA mobile computer
SPECIFICATIONS
|
Physical Characteristics |
|
|
Dimensions |
163.5 x 67.0 x 17.1mm/6.44 x 2.64 x 0.67in |
|
Weight |
256g / 9.03oz (device with battery) |
|
Display |
4-inch, 480 x 800 |
|
Touch Panel |
Multi-touch panel, gloves and wet hands supported |
|
Power |
5000mAh removable battery, support quick charge |
|
Notification |
Sound, LED indicator, vibrator |
|
Expansion Slot |
1 slot for SIM card, 1 slot for SIM or TF card |
|
Interfaces |
USB Type-C, USB 2.0, OTG |
|
Audio |
2 microphones, 1 for noise reduction, back; 1 speaker; receiver |
|
Keypad |
Main keypad , 2 scan keys, multi-function keys |
|
Sensors |
Gravity sensor, distance sensor, light sensor; Gyroscope (optional), geomagnetism (optional) |
|
Communication |
|
|
WLAN |
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, 5G PA |
|
WWAN |
2G: GSM (B2 / B3 / B5 / B8)
|
|
Bluetooth |
Bluetooth 5.0 |
|
Vo-LTE |
Support |
|
GNSS |
GPS/AGPS, GLONASS, BeiDou, Galileo |
|
Developing Environment |
|
|
Operating System |
Android 13 |
|
SDK |
Chainway Software Development Kit |
|
Language |
Java |
|
Tool |
Eclipse / Android Studio |
|
Performance |
|
|
CPU |
Octa-core 2.0GHz |
|
RAM+ROM |
3 GB + 32 GB |
|
Expansion |
Supports up to 128 GB Micro SD card |
|
User Environment |
|
|
Operating Temp. |
-4 °F to 122 °F / -20 °C to 50 °C |
|
Storage Temp. |
-40 °F to 158 °F / -40 °C to 70 °C |
|
Humidity |
5% RH - 95% RH non condensing |
|
Drop Specification |
Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range |
|
Tumble Specification |
1000 x 0.5 m / 1.64 ft. falls at room temperature |
|
Sealing |
IP67 per IEC sealing specifications |
|
ESD |
±15 KV air discharge, ±8 KV conductive discharge |
|
Barcode Scanning |
|
|
2D Scanner |
Zebra: SE4710; CB300; CM60 |
|
1D Symbologies |
UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc. |
|
2D Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc. |
|
Note |
*This function is optional |
|
Camera |
|
|
Front Camera |
5MP |
|
Rear Camera |
13MP Autofocus with flash |
|
NFC |
|
|
Frequency |
13.56 MHz |
|
Protocol |
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
|
Chips |
M1 card (S50, S70), CPU card, NFC tags, etc. |
|
Range |
2-4 cm |
