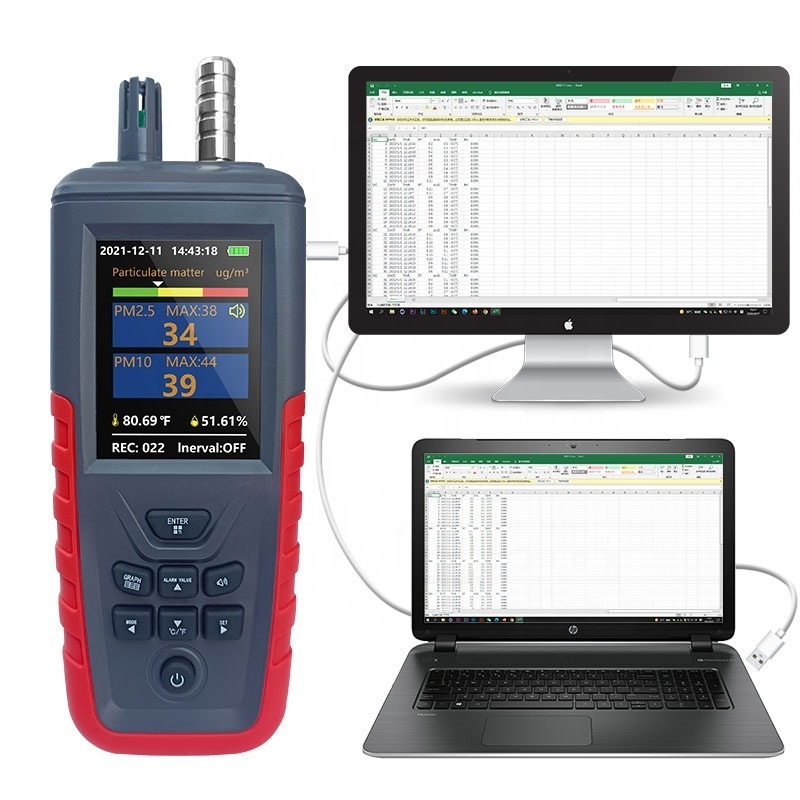

(1)Data logger and view the data curve
(2)999 groups of data records
(3)3.2-inch TFT full-color display, automatic measurement, real-time date and time
(4)Rechargeable lithium battery or separate external USB power supply, stable data, etc.
(5)Detect the quality, temperature, humidity and 0.3um/ 0.5um/1.0um/ 2.5um/ 5.0/ 10um dust particle.(PM2.5/ PM10)
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
DEYI
-
Model Number:
-
TC-8200
-
Six-channel particle size:
-
0.3,0.5,1.0,2.5,5.0,10um
-
PM2.5 range:
-
0~1000μg/m³
-
PM2.5 accuracy:
-
0~100μg/m³:±10μg/m³ 100~1000μg/m³:±10%
-
Concentration resolution:
-
1μg/m³
-
Number of particles output range:
-
≤ 2000000 pcs/L
-
flow:
-
1 liter/minute (2.83L=1L*2.83)
-
Cleanliness standard:
-
Comply with ISO 14644-1, ISO5-ISO9
-
Response time:
-
1s
-
Boot stabilization time:
-
10s
-
Temperature measurement range:
-
-10~60℃
Quick Details
-
Type:
-
PM2.5 dust particle counter
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEYI
-
Model Number:
-
TC-8200
-
Six-channel particle size:
-
0.3,0.5,1.0,2.5,5.0,10um
-
PM2.5 range:
-
0~1000μg/m³
-
PM2.5 accuracy:
-
0~100μg/m³:±10μg/m³ 100~1000μg/m³:±10%
-
Concentration resolution:
-
1μg/m³
-
Number of particles output range:
-
≤ 2000000 pcs/L
-
flow:
-
1 liter/minute (2.83L=1L*2.83)
-
Cleanliness standard:
-
Comply with ISO 14644-1, ISO5-ISO9
-
Response time:
-
1s
-
Boot stabilization time:
-
10s
-
Temperature measurement range:
-
-10~60℃
Specification
|
Data sheet
|
|
|
|
Particle detection range
|
0.3~10μm
|
|
|
Test particle size
|
0.3，0.5，1.0，2.5，5.0，10um
|
|
|
PM2.5 range
|
0～1000μg/m³
|
|
|
PM2.5 accuracy
|
0~100μg/m³：±10μg/m³
100~1000μg/m³：±10% |
|
|
Number of particles output range
|
≤ 2000000 Granule/L
|
|
|
Concentration resolution
|
1μg/m³
|
|
|
Flow rate
|
1 liter/minute (2.83L=1L*2.83)
|
|
|
Cleanliness standard
|
Meets the ISO 14644-1; ISO5 level - ISO9 level
|
|
|
Response time
|
1s
|
|
|
Stable power-on time
|
10s
|
|
|
Temperature measurement range
|
-10～60℃
|
|
|
Temperature accuracy
|
±2℃
|
|
|
Temperature resolution
|
0.01℃
|
|
|
Humidity measurement range
|
0～100%
|
|
|
Humidity accuracy
|
±3%
|
|
|
Humidity resolution
|
0.01％
|
|
|
Power supply
|
3.7VRemovable 18650 lithium battery
|
|
|
Charging voltage
|
5V/USB
|
|
|
length of work
|
2000mAhCan work continuously〉9 hours
|
|
|
data record
|
999group
|
|
|
weight
|
320g
|
|
|
size
|
222*80*46mm
|
|
