Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Farmhouse
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DELI, OEM
-
Model Number:
-
DLT708
-
Certificate:
-
EN131, CE
-
Construction:
-
Portable aluminium
-
No. of steps:
-
16
-
Max load:
-
150kg
-
Thickness of Aluminum:
-
1.3-1.5mm
-
Spacing between rungs:
-
30cm
-
Color:
-
Silver
-
Optional size:
-
3.2M, 3.8M, 4.4M, 5.0M
-
Use:
-
loft access,cleaning widows,painting,decorating .
-
Product name:
-
aluminium telescopic ladder
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Hotel
-
Design Style:
-
Farmhouse
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DELI, OEM
-
Model Number:
-
DLT708
-
Certificate:
-
EN131, CE
-
Construction:
-
Portable aluminium
-
No. of steps:
-
16
-
Max load:
-
150kg
-
Thickness of Aluminum:
-
1.3-1.5mm
-
Spacing between rungs:
-
30cm
-
Color:
-
Silver
-
Optional size:
-
3.2M, 3.8M, 4.4M, 5.0M
-
Use:
-
loft access,cleaning widows,painting,decorating .
-
Product name:
-
aluminium telescopic ladder
| Contact Person: | Hugo |
| Skype: | deliladders |
| Mobile: | +86-15867913758 |
| QQ: | 626113262 |
| Email: | export @deliladder.com |

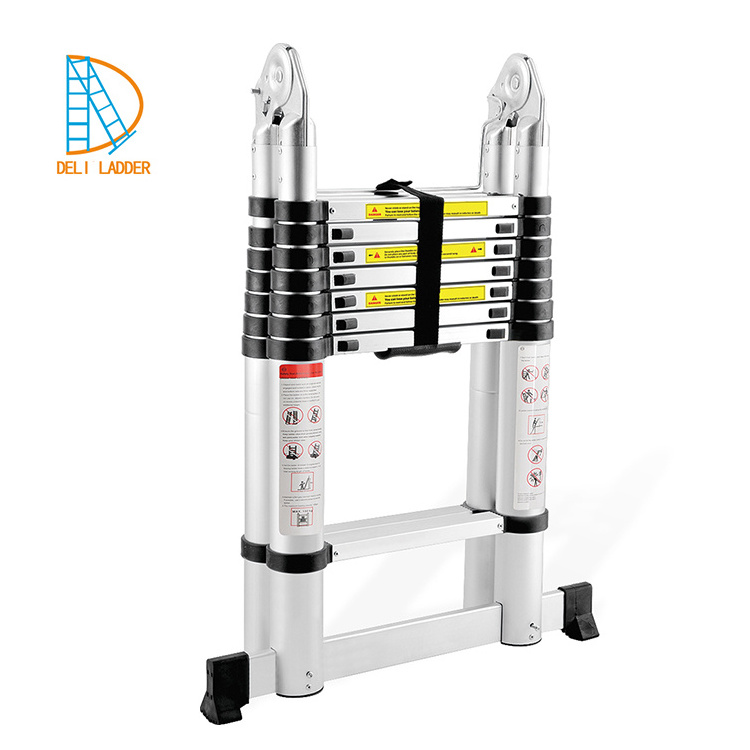

5.0M 16 steps aluminium monkey ladder with hinges / EN131 CE
|
1. Item No. |
DLT708 |
|
2. No. of step |
16 |
|
3. Material |
Aluminium alloy(6063A) |
|
4. Thickness |
1.3-1.5mm |
|
5. Certificate |
EN131, CE |
|
5. Max load |
150kg |
|
6. Spacing between rungs |
30cm |
|
7. Folded height |
95cm |
|
8. Max extended height |
5m |
|
9. Packing size |
96.5X52.5X20(1pc with foam & ctn) |
|
10. Packaging Details |
plastic bag wrapped+ foam+carton |
|
11. N.W |
17.8kg |
|
12. G.W |
18.9kg |
|
13. Load quantity(20GP/40HQ) |
277pcs/627pcs |
|
14. Optional size |
DLT705(1.6×2M, 5×2 steps), DLT706(1.9×6M, 6×2 steps), DLT707(2.2×2M, 7×2 steps), DLT708(2.5×2M,8×2 steps) |
|
Item No. |
NO. Of Steps |
A(cm) |
B(cm) |
C(cm) |
D(cm) |
N.W(kgs) |
Packing Size(cm) |
20GP(pcs) |
40HQ(pcs) |
|
DLT705 |
2×5 |
47 |
86 |
156 |
320 |
12.0 |
87.5X52.5X19.5(1pc/ctn) |
321 |
725 |
|
DLT706 |
2×6 |
47 |
89 |
183 |
380 |
13.5 |
90.5X52.5X20.0(1pc/ctn) |
311 |
701 |
|
DLT707 |
2×7 |
48 |
92 |
210 |
440 |
15.0 |
93.5X52.5X20.0(1pc/ctn) |
301 |
679 |
|
DLT708 |
2×8 |
48 |
95 |
237 |
500 |
17.8 |
96.5X52.5X20.5(1pc/ctn) |
277 |
627 |
|
The ladder can be used as: straight ladder, double-sided and stairway ladder. |
|
|
The Locking Mechanisms |
1. Each step on the ladder has a pair of locking mechanisms. These consist of spring-loaded steel pins that automatically lock into place as the ladder is extended. |
|
2. The locking mechanisms may appear to audibly “click” shut, but always visually check that the levers appear locked. The locking mechanism must be fully secured before use. |
|
|
Hinge Operation |
1. To unlock hinge: Pull from center of Hinge Release Rod then let go. |
|
2. To lock hinge: Move ladder to two hinges lock position. Make sure the Lock Bolts lock in place on both hinges. Check the label on both hinges to be certain they are locked. |
|
|
3. Be sure all hinges are locked before using the ladder. |
|
|
4. Never use anything other than hand to lift up the hinge release rod. |
|
|
5. Never use hinge release rod to adjust, move or transport ladder. |
|
|
6. Do not use this ladder if lock bolts do not lock in place. |
|
|
7. Keep hinge clean and free of dirt, paint, snow, etc. |
|
|
8. The hinges in this ladder have been lubricated at the factory. For best operation depending on actual use clean and lubricate hinges periodically with a light machine oil. |
|
|
Extending The Ladder |
1. For telescopic step ladder. With your two handles grip the ladder from both sides and pull upwards extending this section for your demand, then pull the release rod to A frame position, locked the hinge. |
|
2. For straight telescopic ladder. Pull the release rod to straight position, locked the hinge, extended ladder step by step and reach this section for your demand. |
|
|
3. For stairway telescopic step ladder. With your two handles grip the ladder from both sides and pull upwards extending this section for your demand, then pull the release rod to A frame position, locked the hinge, folded one side in right position for stairway. |
|
|
4. Ensure that each section to be extended is extended fully. |
|
|
5. Ensure ladder hinge is locked before using. |
|
|
Compacting The Ladder |
1. When you have finished using the ladder, you can retract it down to the storage size. |
|
2. Folded the ladder, then close the ladder step by step with your both handles to press 2 buttons on each rungs. |
|
|
Storage |
1. Compact design for easy storage. |
|
2. The ladder must be stored in a safe dry location away from children and excessive heat. |
|
|
Safety First! Before use the ladders, please read the marking carefully! |
|
|
GUIDES |
1. Inspect upon receipt and before each use. |
|
2. Make sure all rungs are securely engaged and locked in place. |
|
|
3. Never climb a damaged, bent or broken ladder. |
|
|
4. Keep ladder clean, free from grease, oil, snow, wet paint, and other slippery materials. Keep shoes clean; leather soles should not be used. |
|
|
5. Never make temporary repairs of damaged or missing parts. |
|
|
6. All working parts must be in good working, order. |
|
|
7. Do not use ladder if broken, worn or if exposed to fire or chemical corrosion. |
|
|
8. Do not use ladder if you tire easily, are subject to fainting spells, are using medicine/alcohol or are physically impaired. |
|
|
9. To protect children, do not leave ladder set-up and unattended. |
|
|
CAUTION |
1. DANGER, METAL LADDERS CONDUCT ELECTRICITY. Do not let ladders of any material come in contact with live electrical wires. |
|
2. Do not operate on uneven or slippery surfaces, this can cause serious injury. |
|
|
3. Never climb or stand on the top 3 rungs. YOU CAN LOSE YOUR BALANCE. |
|
|
4. Securely place thumbs on latches when closing! Do not place any part of body including hands, fingers or thumbs on or between rungs or couplings above the last secured rung. |
|
