Quick Details
-
Brand Name:
-
OBRK
-
Model Number:
-
HT-225B-03
-
Product name:
-
Schmidt concrete test rebound hammer type n resiliometer sclerometer
-
Application:
-
Laboratory
-
Weight:
-
2.2KG
-
Material:
-
Stainless Steel
-
Measurement range:
-
10-70KN
-
Usage:
-
Auto Testing Machine
-
Keyword:
-
Digital concrete test hammer
-
Type:
-
Portable
-
Function:
-
Strength test
Quick Details
-
Warranty:
-
1 year, 1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
OBRK
-
Model Number:
-
HT-225B-03
-
Product name:
-
Schmidt concrete test rebound hammer type n resiliometer sclerometer
-
Application:
-
Laboratory
-
Weight:
-
2.2KG
-
Material:
-
Stainless Steel
-
Measurement range:
-
10-70KN
-
Usage:
-
Auto Testing Machine
-
Keyword:
-
Digital concrete test hammer
-
Type:
-
Portable
-
Function:
-
Strength test

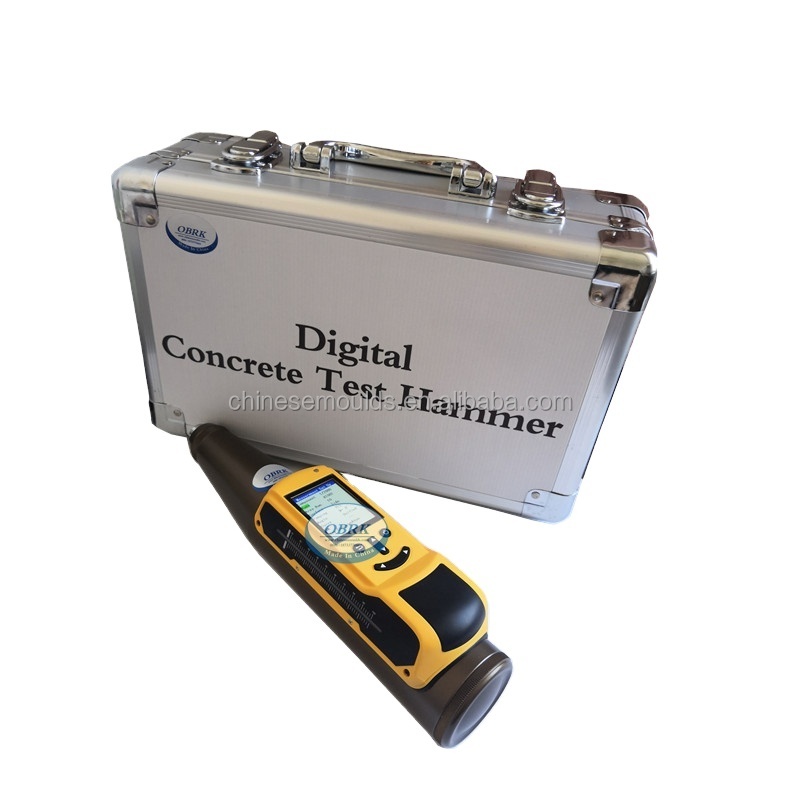

Schmidt concrete test rebound hammer type n resiliometer sclerometer concrete
Product Description
Concrete Test Hammer applicable to detect strength of high-rise building components, Bridges and concrete member(plate, beam, column, bridge). Usually suit to concrete from C50 to C100. According to the standard acceptance evaluation of concrete strength.
2. Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.
Specification
|
Name
|
Digital concrete test hammer electronic rebound hammer
|
|
Material
|
Stainless Steel
|
|
Test range
|
10-70Mpa
|
|
Impact energy
|
2.207±0.1J
|
|
Rigidity of tension spring
|
785±30N/m
|
|
Length of spring stretch
|
75±0.3mm
|
|
Static friction of pointer slider
|
0.65N±0.15N
|
|
Radius of spherical tip
|
25mm±1mm
|
|
The average rebound values on steel anvil
|
80±2
|
|
Data storage capacity
|
200 standard components
|
|
Power supply
|
Ni-Mh rechargeable battery
|
|
Dimensions
|
Φ54×280mm
|
|
weight
|
2.5Kg
|
Schmidt concrete test rebound hammer type n resiliometer sclerometer concrete
