Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
SD24-C3
-
Dimension(Long * Breadth * High):
-
5920*3640*3460 mm
-
Usage:
-
Engineering
-
Original:
-
100% China
-
Color:
-
Yellow
-
Power:
-
195KW
-
Ground Pressure:
-
62kPa
-
Track center distance (mm):
-
2000
-
Ground length (mm):
-
3050
-
engine model:
-
WP12
-
Fuel tank (L):
-
450
-
Shovel depth (mm):
-
540
Quick Details
-
Machine Weight:
-
24200 KG
-
Dozing Capacity:
-
6.5m³
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
SD24-C3
-
Dimension(Long * Breadth * High):
-
5920*3640*3460 mm
-
Usage:
-
Engineering
-
Original:
-
100% China
-
Color:
-
Yellow
-
Power:
-
195KW
-
Ground Pressure:
-
62kPa
-
Track center distance (mm):
-
2000
-
Ground length (mm):
-
3050
-
engine model:
-
WP12
-
Fuel tank (L):
-
450
-
Shovel depth (mm):
-
540
Product Overview

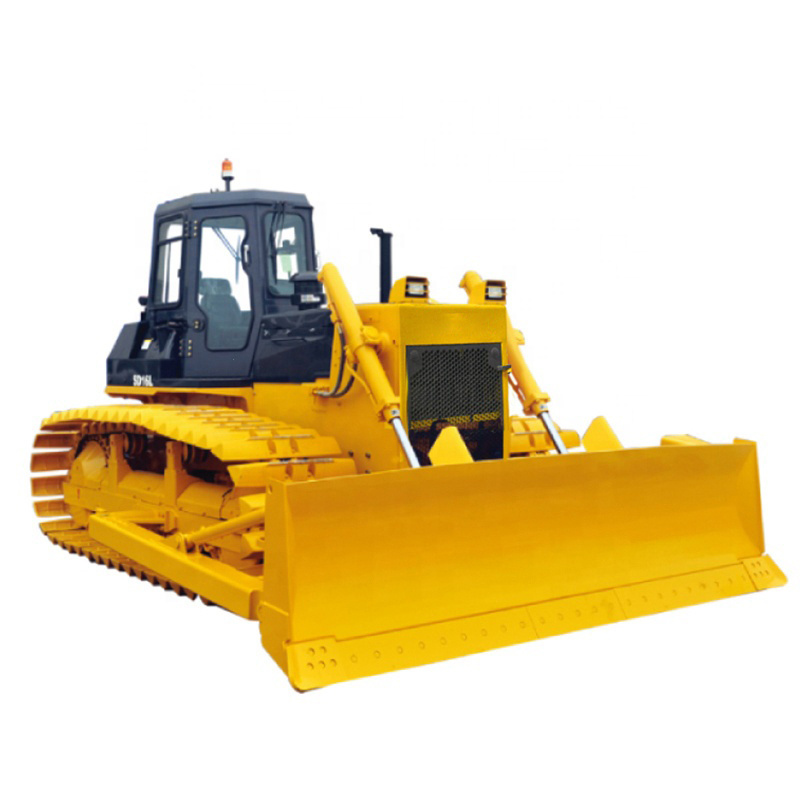

SHANTUI Hot Selling 24ton Crawler Bulldozer SD24-C3
SD24-C3 hydraulic bulldozer is a hydraulic drive bulldozer developed by Shantui, with technology reaching the leading domestic and international advanced level. The product inherits more than 30 years of Shantui's bulldozer production experience, with excellent quality and stable and reliable performance. It is mainly used for pushing, excavating, backfilling earth and other bulk materials on highways, railroads, airports, etc. It is an indispensable mechanical equipment for national defense projects, urban and rural roads and other building construction and water conservancy construction.
PRODUCT SPECIFICATIONS
|
parameter name
|
SD24-C3 XL (extended version)
|
SD24-C3 CH (Coal version)
|
SD24-C3 RS (Rock Version)
|
|||
|
Performance parameters
|
|
|
|
|||
|
Working mass (kg)
|
24200
|
24850
|
24800
|
|||
|
Ground specific pressure (kPa)
|
62
|
54
|
66
|
|||
|
Traction performance
|
|
|
|
|||
|
engine
|
|
|
|
|||
|
engine model
|
WP12
|
WP12
|
WP12
|
|||
|
Rated power/rated speed (kW/rpm)
|
195/1900
|
195/1900
|
195/1900
|
|||
|
Dimensions
|
|
|
|
|||
|
Overall dimensions of the whole machine (mm)
|
5920*3640*3460
|
6300*4288*3460
|
5920*3640*3460
|
|||
|
walking performance
|
|
|
|
|||
|
Forward speed (km/h)
|
F1: 0-3.8 F2: 0-6.9 F3: 0-11.8
|
F1: 0-3.8 F2: 0-6.9 F3: 0-11.8
|
F1: 0-3.8 F2: 0-6.9 F3: 0-11.8
|
|||
|
Backward speed (km/h)
|
R1: 0-4.5 R2: 0-8.1 R3: 0-13.9
|
R1: 0-4.5 R2: 0-8.1 R3: 0-13.9
|
R1: 0-4.5 R2: 0-8.1 R3: 0-13.9
|
|||
|
undercarriage
|
|
|
|
|||
|
Track center distance (mm)
|
2000
|
2000
|
2000
|
|||
|
Track shoe width (mm)
|
560 (standard)/610/660
|
660
|
560 (standard)/610/660
|
|||
|
Ground length (mm)
|
3050
|
3050
|
3050
|
|||
|
Fuel tank capacity
|
|
|
|
|||
|
Fuel tank (L)
|
450
|
450
|
450
|
|||
|
Working hydraulic oil tank (L)
|
110
|
110
|
110
|
|||
|
working equipment
|
|
|
|
|||
|
Blade type
|
Half U shovel
|
push coal shovel
|
rock shovel
|
|||
|
Shovel depth (mm)
|
540
|
540
|
540
|
|||
|
Scarifier type
|
single-tooth three-tooth
|
single-tooth three-tooth
|
single-tooth three-tooth
|
|||
|
Soil loosening depth (mm)
|
Single tooth 515 Three tooth 555
|
Single tooth 695 Three tooth 666
|
Single tooth 695 Three tooth 666
|
|||
