Function: support rolled plate and strip tension for erw pipe mill production line, by the frame, main shaft, increases of drum, brake.
There are 3 types: pneumatic, hydraulic and manual.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SINO POWER
-
Voltage:
-
220v/50hz
-
Power:
-
160kw-500kw
-
Dimension(L*W*H):
-
60*5*6m
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Product Name:
-
Carbon steel pipe making machine
-
Pipe Diameter(OD):
-
12.7- 76mm
-
Pipe Wall Thickness:
-
1.0- 4.0mm
-
Pipe Shape:
-
Round,Irregular And Square,LTZ etc
-
Welded Type:
-
High frequency Welded
-
Used Place:
-
Oil, Gas, Building, Water etc
-
Certification:
-
ce
Quick Details
-
Pipe Material:
-
Carbon steel
-
Production Capacity:
-
0-90m/min
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SINO POWER
-
Voltage:
-
220v/50hz
-
Power:
-
160kw-500kw
-
Dimension(L*W*H):
-
60*5*6m
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Product Name:
-
Carbon steel pipe making machine
-
Pipe Diameter(OD):
-
12.7- 76mm
-
Pipe Wall Thickness:
-
1.0- 4.0mm
-
Pipe Shape:
-
Round,Irregular And Square,LTZ etc
-
Welded Type:
-
High frequency Welded
-
Used Place:
-
Oil, Gas, Building, Water etc
-
Certification:
-
ce
Product Category
Color coated line & Film line
For steel coil color spraying and film coating on steel coil surface,Home appliance board, building material board, food box...etc
Coil slitting machine.
Slit metal coil to certain width strip.
Apply to HR, CR, GI, PPGI, ST37, ST52, SS...etc
Coil cut to length line.
Cutting metal coil to sheet plate .
Thickness from 0.2 to 25mm. Coil width customized
Why Choose us?
1.30 years in metal processing equipment development
2.15 years export experience, serves hundreds clients in 40 countries
3.Top engineer team, advanced production process, maximize returns for client.
4.24 hours online service, excellent service system
ERW Pipe Mill

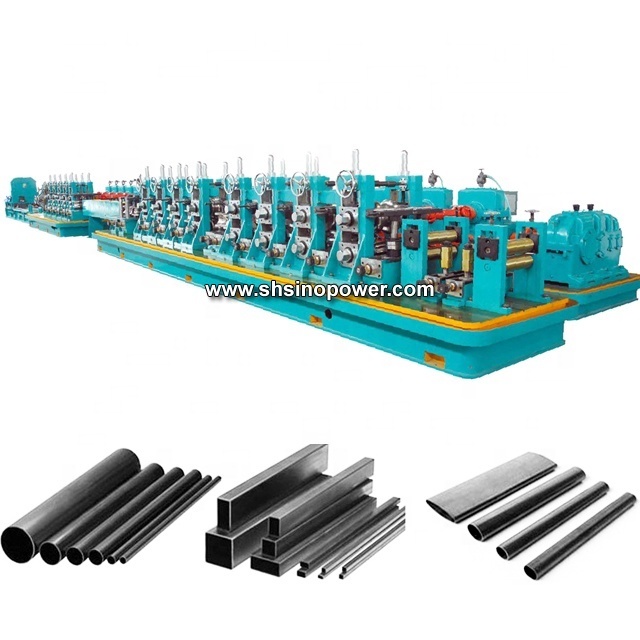

High frequency welded pipe making machine is the main equipment for the welded steel tube production line with decoiler, strip feeding, roller forming and sizing, high frequency solid welding, cutting and stock. Below are detailed specification of our pipe mill line.
1: Which kind of pipe can be produced by our Pipe mill ?
1. Oil & Gas Pipes 7. Wire and Cable Protection Pipe
2. Heating Pipe 8. Structural Support Steel Pipe
3. Low-pressure Process Pipeline 9. Industrial Steel Pipes
4. Low Pressure Fire Fighting Pipeline 10. Decoration Pipe
5. Sewage Pipes 11. Water Pipe
6. Steel Scaffolding Pipe 12. Building pipe
2. Flow chart of our tube mill
Standard flow chart of ISO/CE MS Iron Pipe Making Machine Production Line 8-219 mm ERW Pipe Mill:
Step 1: Uncoiler
Step 2: Shearing butt welding
2 Types: Automatic & Manual
Function: Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue production.
Step 3: Strip Accumulator
Function: storage strip to keep continue production.
2 Types: Horizontal / Vertical
Advantage: Horizontal type can be larger storage. Vertical type is much cheap and small space occupied.
Step 4: Forming Section.
Function: forming the tube from strip
Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gear box
>Siemens Beide motor
Step 5: High Frequency Welding
Function: Welding the pipe , different thickness & diameter, the power of the HF welding machine welder
Our advantage: We choose the China best welder: Sanyi brand.
Step 6: Sizing Section
Function: sizing the tube to precise size
Advantage:
>Advanced sizing technical
>One-stage molding platform
>Reliable quality gear box and Siemens Beide motor
>High precision, low error of the pipe size
Step 7: Flying saw / Cold Saw
Function: cutting the tube mill line tube to right length.
Fly saw: easy to operation, low investment.
Cold saw: no noise, no burr cutting precision and cross section.
3. Pipe Making Machine Details Pictures
Relying on superior products quality, Sino Power Group have successfully supplied world-class products and service to over 40 countries and areas around the world, such as: Poland, Spain, Russia, Yugoslavia, Ukraine, Turkey, Egypt, Saudi Arabia, India, Vietnam, Malaysia, Thailand, the Philippines, Pakistan, kazakhstan, Ethiopia, etc.
Main specification
Below is our standard series of our tube making machine, we also accept customized .
|
Model
|
ROUND PIPE
|
|
SQUARE PIPE & RECTANGLE PIPE
|
|
|
SPEED
|
|||
|
|
Diameter/mm
|
Thickness/mm
|
Sq. size/mm
|
Re.size/mm
|
Thickness/mm
|
|
|||
|
SP12
|
8-16
|
0.2-0.6
|
|
|
|
20-120m/min
|
|||
|
SP16
|
8-25
|
0.2-1.0
|
7×7-20×20
|
7×7-25×15
|
0.2-0.8
|
20-120m/min
|
|||
|
SP25
|
8-32
|
0.3-1.3
|
7×7-25×25
|
7×7-30×20
|
0.3-1.0
|
20-120m/min
|
|||
|
SP28
|
8-42
|
0.3-1.8
|
7×7-30×30
|
7×7-40×20
|
0.3-1.3
|
20-120m/min
|
|||
|
SP32
|
16-50.8
|
0.6-2.0
|
12×12-40×40
|
14×10-50×30
|
0.6-1.6
|
20-120m/min
|
|||
|
SP45
|
19-63.5
|
0.6-2.5
|
15×15-50×50
|
20×10-70×30
|
0.6-2.0
|
20-120m/min
|
|||
|
SP50
|
19-76
|
0.6-2.5
|
15×15-60×60
|
20×10-80×40
|
0.6-2.0
|
20-120m/min
|
|||
|
SP60
|
19-76
|
0.6-3.0
|
15×15-60×60
|
20×10-80×40
|
0.6-2.5
|
20-100m/min
|
|||
|
SP76
|
25-80
|
1.2-4.0
|
20×20-62×62
|
30×10-84×40
|
1.2-3.0
|
20-70m/min
|
|||
|
SP90
|
32-90
|
1.5-4.5
|
25×25-70×70
|
30×20-90×50
|
1.5-3.5
|
20-60m/min
|
|||
|
SP115
|
38-115
|
2.0-5.0
|
30×30-90×90
|
40×20-120×60
|
2.0-4.0
|
20-60m/min
|
|||
|
SP165
|
60-165
|
2.0-6.0
|
45×45-130×130
|
60×30-150×100
|
2.0-4.5
|
15-50m/min
|
|||
|
SP219
|
90-219
|
3.0-8.0
|
70×70-170×170
|
100×40-200×140
|
3.0×6.0
|
15-50m/min
|
|||
