Controller : ESTUN E21s From China
●
HD LCD display, with both Chinese and English language options, a display programming parameters, faster and more convenient programming
●
Backgauge control:Smart positioning, can also be manually adjusted as needed to remove the mechanical hand positioning device.
●
Cut Stroke: Built-shearing time relay, simple operation, cost savings
●
Shear angle: Built shear angle adjustment function, eliminating the angle indicators and buttons
●
Blade gap: encoder feedback, time display blade gap size, simple operation
●
Having a key parameter backup and restore functionality, you can always restore the parameters as required, reducing
maintenance costs
●
All keys on the panel are micro-switches, through EMC, high temperature, vibration and other rigorous testing to ensure
product stability and service life.
●
CE certified to meet the needs of overseas markets.
- Product Details
- {{item.text}}
Quick Details
-
Backgauge Travel (mm):
-
1 - 500 mm
-
Throat Depth (mm):
-
130 mm
-
Brand Name:
-
BAMBEOCNC
-
Power (kW):
-
11 kW
-
Weight (KG):
-
7800 KG
-
Place of Origin:
-
China
-
Year:
-
2020
Quick Details
-
Max. Cutting Width (mm):
-
3200
-
Max. Cutting Thickness (mm):
-
8 mm
-
Blade Length (mm):
-
3300 mm
-
Backgauge Travel (mm):
-
1 - 500 mm
-
Throat Depth (mm):
-
130 mm
-
Brand Name:
-
BAMBEOCNC
-
Power (kW):
-
11 kW
-
Weight (KG):
-
7800 KG
-
Place of Origin:
-
China
-
Year:
-
2020
Products Description

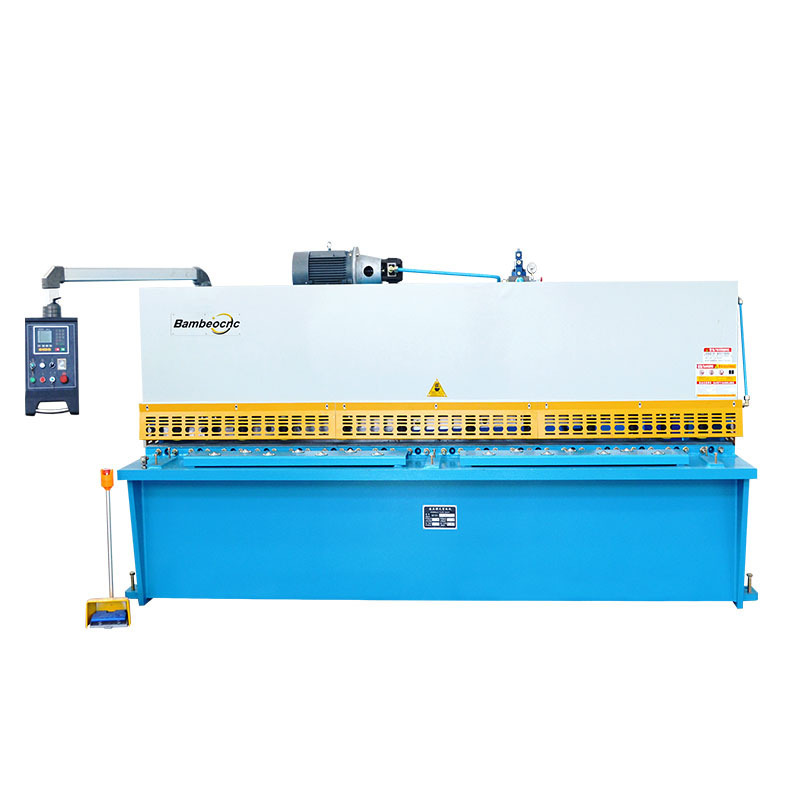

Hydraulic Swing Beam Shearing Machine
Features1.Totally European design, streamlined looking,Monoblock,The frame of this machine tool is welded construction with steel plate, and stress is eliminated by vibration. As a result, this forging machine features high strength, stable performance, easy operation and convenient maintenance.
2.As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of
products can also be guaranteed.
3.Adopt handwheel to rapidly and accurately adjust the blade clearance.
4.The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.
5.The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding
6.It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.
7.Motorized adjusting and manual adjusting for the back gauge
8.Cutting times of this machining tool are controlled by the time relay.
9.European key electrics
10.Light alignment device eases drawing line for cutting
11.Standard front support sheet frame
12.Protection fence and the electric interlocker to ensure the safety of the operator.
13.The machine by the European Union CE certification and ISO quality system certification
Features1.Totally European design, streamlined looking,Monoblock,The frame of this machine tool is welded construction with steel plate, and stress is eliminated by vibration. As a result, this forging machine features high strength, stable performance, easy operation and convenient maintenance.
2.As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of
products can also be guaranteed.
3.Adopt handwheel to rapidly and accurately adjust the blade clearance.
4.The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.
5.The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding
6.It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.
7.Motorized adjusting and manual adjusting for the back gauge
8.Cutting times of this machining tool are controlled by the time relay.
9.European key electrics
10.Light alignment device eases drawing line for cutting
11.Standard front support sheet frame
12.Protection fence and the electric interlocker to ensure the safety of the operator.
13.The machine by the European Union CE certification and ISO quality system certification
Details Images
|
Standard Configuration
|
|
|
||
|
1.
|
Controller
|
Estun E21S Controller
|
||
|
2.
|
Hydraulic System
|
Bosch Rexroth From Germany
|
||
|
Hydraulic system:
--Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch - Rexroth,Germany. --All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance --Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly. --The hydraulic system is made in compliance with current regulations (Directive 98/37 EC). |
|
|
||
|
3.
|
Main Motor
|
Siemens From Germany
|
||
|
4.
|
Main Electrics
|
SCHNEIDER from France
|
||
|
Electrical system and the safety interlock:
--Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability --Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate --Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation. |
|
|
||
|
5.
|
Seal Ring
|
NOK From Japan
|
||
|
6.
|
Pipe Connector
|
EMB From Germany
|
||
|
7.
|
Ball Srew
|
Hiwin From Taiwan
|
||
|
8.
|
Limit Switch
|
SCHNEIDER from France
|
||
|
9.
|
Pump
|
Sunny From USA
|
||
|
10.
|
Foot Switch
|
Karcon From South Korea
|
||
Hydraulic System --BOSCH Rexroth from Germany
●Hydraulic system is from Bosch -Rexroth,Germany.
●Adopt integrated hydraulic control system, more reliable and easy for maintenance.
●Reduced noise: the particular installation choices allow to obtain especially moderate noise levels both on machines of average capacity
●Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
●The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).
Sunny Pump
American world famous brand for hydraulic pump. It performs well and provides great power for the whole system.Using Sunny pump ensures the pump service life and lower working noise.
Electric from France Schneider
France Schneider electrics with high stability. It can perform well even the electricity is not stable.And customers can easily get the replacement anywhere in the world.
Main Motor Siemens From Germany
German famous brand motor improves the service life of the machine and keeps the machine working in a lower noise environment.
Built-in Spring Pressure Cylinder
Its lower end equipped with special material gasket, sparately control the pressure ,avoiding aluminium alloy or other softer materials being imprinted.
Front Positioning Verticality Regulator
Front positioning device, setting verticality and positioning device on the left-most front support, guranteeing the cutting precision ,easy operation, pratical and efficient.
Workbench Rolling Steel Ball
Rolling steel ball of workbench can reduce friction, protect the workpiece surface.
Ball Screw+Linear Guide Hiwin From TaiWan
●High Precision Backgauge is equipped with fine ball screw and guide linear;
●Backgauge adopts horizontal installation shell structure with high stability,singe shell double guide rail, high precision, X-axixs drive, automatioc CNC sytem.
Blade Clearance Adjustment
Adjust the cutting blade gap by motor according to the thickness of metal sheet, can get better cutting performance.
Rapid adjustment mechanism for rearranging blade clearance is easy to operate by hand,realizing stepless adjustment of blade clearance.
Front Finger Protection
Front finger protection and the safety fence in the rear of the machine can protect the user during operation.
Safety Fence
|
model
|
cutting thickness(mm)
|
cutting length(mm)
|
cutting angle(°）
|
strength(KN/CM)
|
strokes(Spm)
|
main power(kw)
|
weight(kg)
|
dimension(L*W*H)(mm)
|
|
QC12Y-4*2500
|
4
|
2500
|
1°30′
|
≤450
|
10
|
5.5
|
3800
|
3040*1610*1620
|
|
QC12Y-4*3200
|
4
|
3200
|
1°30′
|
≤450
|
10
|
5.5
|
5000
|
3840*1610*1620
|
|
QC12Y-4*4000
|
4
|
4000
|
1°30′
|
≤450
|
8
|
5.5
|
6500
|
4600*1700*1700
|
|
QC12Y-4*6000
|
4
|
6000
|
1°30′
|
≤450
|
5
|
7.5
|
11000
|
6460*2100*3200
|
|
QC12Y-6*2000
|
6
|
2000
|
1°30′
|
≤450
|
12
|
7.5
|
4300
|
2540*1610*1620
|
|
QC12Y-6*2500
|
6
|
2500
|
1°30′
|
≤450
|
10
|
7.5
|
5000
|
3040*1610*1620
|
|
QC12Y-6*3200
|
6
|
3200
|
1°30′
|
≤450
|
9
|
7.5
|
6000
|
3840*1610*1620
|
|
QC12Y-6*4000
|
6
|
4000
|
1°30′
|
≤450
|
8
|
7.5
|
8500
|
4620*1750*1700
|
|
QC12Y-6*6000
|
6
|
6000
|
1°30′
|
≤450
|
5
|
11
|
16500
|
6480*2100*2300
|
|
QC12Y-8*2500
|
8
|
2500
|
1°30′
|
≤450
|
10
|
7.5
|
6000
|
3040*1700*1700
|
|
QC12Y-8*3200
|
8
|
3200
|
1°30′
|
≤450
|
8
|
7.5
|
7200
|
3860*1700*1700
|
|
QC12Y-8*4000
|
8
|
4000
|
1°30′
|
≤450
|
8
|
7.5
|
8800
|
4640*1700*1700
|
|
QC12Y-8*6000
|
8
|
6000
|
1°30′
|
≤450
|
8
|
11
|
18000
|
6480*2100*2350
|
|
QC12Y-10*2500
|
10
|
2500
|
1°30′
|
≤450
|
9
|
11
|
7300
|
3040*1700*1700
|
|
QC12Y-10*3200
|
10
|
3200
|
2°
|
≤450
|
9
|
11
|
8000
|
3860*1700*1700
|
|
QC12Y-10*4000
|
10
|
4000
|
2°
|
≤450
|
8
|
11
|
12050
|
4650*2100*2100
|
|
QC12Y-10*6000
|
10
|
6000
|
1°30′
|
≤450
|
5
|
15
|
24000
|
6500*2100*2300
|
|
QC12Y-12*2500
|
12
|
2500
|
1°40′
|
≤450
|
9
|
18.5
|
9000
|
3140*2150*2000
|
|
QC12Y-12*3200
|
12
|
3200
|
1°40′
|
≤450
|
9
|
18.5
|
10800
|
3880*2150*2000
|
|
QC12Y-12*4000
|
12
|
4000
|
1°40′
|
≤450
|
8
|
18.5
|
13000
|
4680*2150*2000
|
|
QC12Y-12*6000
|
12
|
6000
|
2°
|
≤450
|
5
|
18.5
|
29500
|
6900*2600*2700
|
|
QC12Y-12*8000
|
12
|
8000
|
2°
|
≤450
|
5
|
18.5
|
46500
|
9000*3500*3500
|
|
QC12Y-16*2500
|
16
|
2500
|
2°30′
|
≤450
|
9
|
18.5
|
11000
|
3140*2150*2000
|
|
QC12Y-16*3200
|
16
|
3200
|
2°30′
|
≤450
|
8
|
18.5
|
13000
|
3880*2150*2000
|
|
QC12Y-16*4000
|
16
|
4000
|
2°30′
|
≤450
|
8
|
18.5
|
16300
|
4650*2150*2200
|
|
QC12Y-16*6000
|
16
|
6000
|
2°30′
|
≤450
|
5
|
22
|
36000
|
6900*2700*2700
|
|
QC12Y-16*8000
|
16
|
8000
|
2°30′
|
≤450
|
5
|
22
|
75000
|
9000*3500*3500
|
|
QC12Y-20*6000
|
20
|
6000
|
3°
|
≤450
|
4
|
22
|
47000
|
6700*3000*3000
|
|
QC12Y-25*3200
|
25
|
3200
|
3°
|
≤450
|
5
|
37
|
23000
|
4200*2500*2600
|
|
QC12Y-40*3200
|
40
|
3200
|
4°
|
≤450
|
3
|
90
|
49000
|
4300*3300*3000
|
Our Service
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
123 (L) * 456 (W) * 789 (D)
|
|
|
Weight
|
7 T
|
|
|
Packaging Details
|
Container transportation, mold surface coated with anti-rust coating. The machine is fixed with wire ropes in the container. Free loading of other goods for customers
|
|
