Quick Details
-
Optical Resolution:
-
640*480
-
Scan Speed:
-
350+-50time/sec
-
Brand Name:
-
Bide
-
Place of Origin:
-
Guangdong, China
Quick Details
-
Type:
-

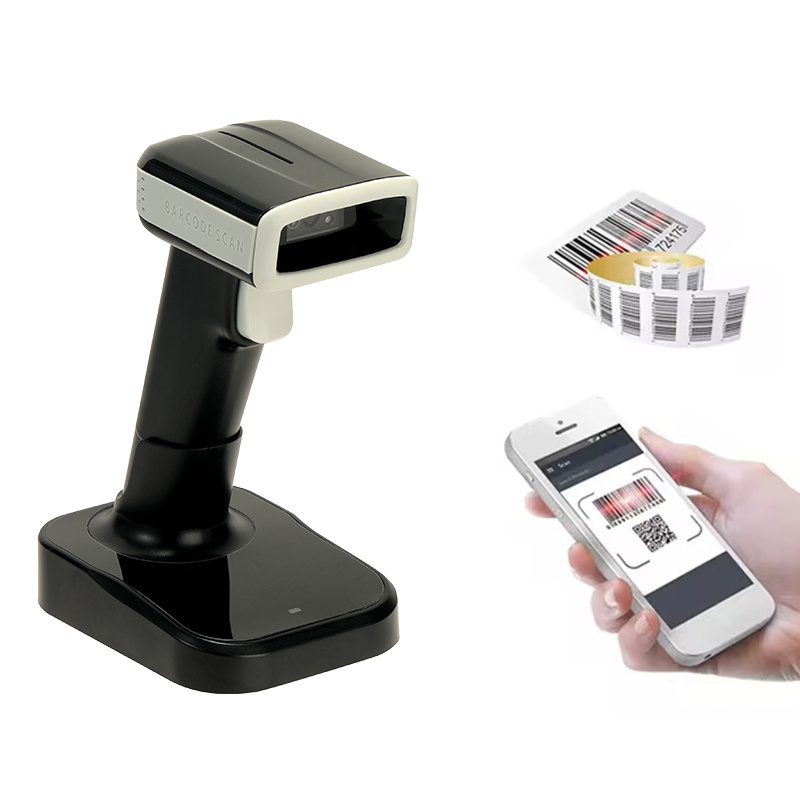

Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
A4
-
Optical Resolution:
-
640*480
-
Scan Speed:
-
350+-50time/sec
-
Brand Name:
-
Bide
-
Place of Origin:
-
Guangdong, China
Product Details
Specification
|
Sensor
|
|
640×480 CMOS.120FPS
|
|
|
Illumination
|
|
White LED
|
|
|
Focus
|
|
Red LED
|
|
|
Reading code system |
2D
|
QR Code, Data Matrix, PDF417，Aztec, Hanxin
|
|
|
|
1D |
EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
|
|
|
|
|
Interleaved 2 of 5, ITF-6,ITF-14,ISBN (book number), ISSN (newspaper number)
|
|
|
|
|
GS1 Databar,Code 11,Industrial 25, Standard 25，Plessey
|
|
|
|
|
Matrix 2 of 5
|
|
|
Reading accuracy
|
|
≥4mil
|
|
|
Reading depth of field |
Code39
|
45mm-125mm (5mil 4 bytes)
|
|
|
|
EAN-13
|
60mm-260mm (13mil)
|
|
|
|
QR Code
|
60mm-260mm (13mil)
|
|
|
|
Data Marix
|
55mm-130mm (10mil 20 bytes)
|
|
|
|
PDF 417
|
45mm-140mm (6.67mil 7 bytes)
|
|
|
Contrast
|
|
≥20%
|
|
|
Scan angle
|
|
Rotation angle 30°, elevation angle ± 55°, declination angle ± 55
|
|
|
field of view
|
|
37° horizontally, 28° vertically
|
|
|
Communication Interface
|
|
TTL-232, USB (HID-KBW, virtual serial port), wireless 2.4G, Bluetooth
|
|
|
physical dimension
|
|
160(W)×110(D)×80(H)mm
|
|
|
Reading Tips
|
|
LED prompts and buzzer (providing external interface)
|
|
|
Operating Voltage
|
|
+3.3V DC ±5%
|
|
|
Working current
|
|
170mA
|
|
|
Operating temperature
|
|
-20℃~+50℃
|
|
|
Storage temperature
|
|
-40℃~+70℃
|
|
|
Working humidity
|
|
5%~95% (no condensation)
|
|
|
Protection level
|
|
IP42 (1.5 meter tumble drop)
|
|
