Quick Details
-
Shade Shape:
-
Others
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lendian
-
Model Number:
-
L020 Series
-
Color Temperature(CCT):
-
2700K 3000K 4000K 5000K 6000K, 2700K/3000K/4000K/5000K/6000K
-
Lamp Luminous Flux(lm):
-
1800
-
Working Temperature(℃):
-
-20 - 40
-
Packing Dimension:
-
20x20x15 cm
-
Product Dimension:
-
D 10 x 10 cm
-
Product Weight（kg）:
-
0.3
-
LED Light Source:
-
COB
-
Beam Angle:
-
110 degree
-
Power:
-
5W 7W 9W 12W 15W
-
Keyword:
-
Embeded spotlight
-
Material:
-
Alumimum
-
Type:
-
project downlight
Quick Details
-
Lamp Body Material:
-
Aluminum Alloy
-
Design Style:
-
Modern
-
Shade material:
-
Metal
-
Shade Shape:
-
Others
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lendian
-
Model Number:
-
L020 Series
-
Color Temperature(CCT):
-
2700K 3000K 4000K 5000K 6000K, 2700K/3000K/4000K/5000K/6000K
-
Lamp Luminous Flux(lm):
-
1800
-
Working Temperature(℃):
-
-20 - 40
-
Packing Dimension:
-
20x20x15 cm
-
Product Dimension:
-
D 10 x 10 cm
-
Product Weight（kg）:
-
0.3
-
LED Light Source:
-
COB
-
Beam Angle:
-
110 degree
-
Power:
-
5W 7W 9W 12W 15W
-
Keyword:
-
Embeded spotlight
-
Material:
-
Alumimum
-
Type:
-
project downlight
Hot selling product

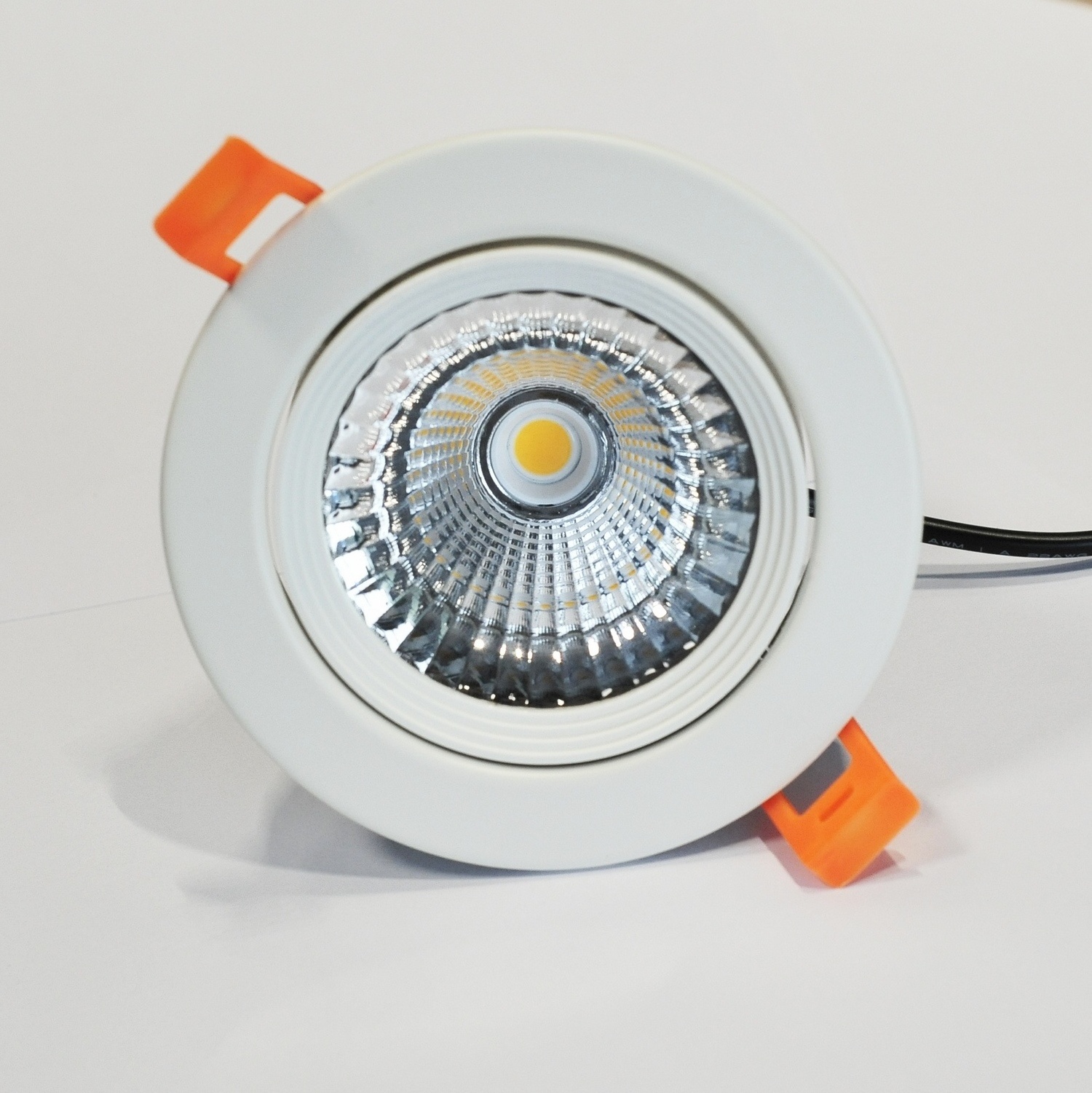

LED Recessed Spot Light Trimless Downlights Ceiling Hotel Wall Washer Adjustable COB Spotlight
High cost performance, high stability, best-selling products
Applications:
Hotel, club, supermarket, store, office ,residential, commercial and etc.
Product Features:
1. DOB/COB+external drive is optional,
CRI ＞ 80/90
. High light efficiency and uniform light output;
2. National standard
aluminum die-casting
radiator to ensure good appearance and full heat dissipation;
3. Secondary optical design,
24 ° , 36 ° optiona
l;
4. DOB and external drive are optional, and various dimming drives and intelligent systems can be selected to meet various use needs;
5. Serialized products, tapping Ф 55、 Ф 75、 Ф 95,
power coverage 5-15W
;
6. The service life of the whole lamp is 35000 hours.
|
Model
|
Dimension(mm)
|
Cut out(mm)
|
Power
|
Luminous flux
|
|||
|
L02001-5
|
65*44
|
55
|
5W
|
400lm
|
|||
|
L02002-7
|
85*52
|
75
|
7W
|
560lm
|
|||
|
L02002-9
|
85*52
|
75
|
9W
|
720lm
|
|||
|
L02002-12
|
85*62
|
75
|
12W
|
960lm
|
|||
|
L02003-12
|
105*58
|
95
|
12W
|
960lm
|
|||
|
LO2003-15
|
105*70
|
95
|
15W
|
1200lm
|
|||
|
Material
|
Aluminum+PC+Iron
|
|
|
|
|||
|
Input Voltage
|
AC220-240V 50~60Hz
|
|
|
|
|||
|
CRI
|
Ra>80/Ra>90
|
|
|
|
|||
|
Beam Angle
|
24/36 degree
|
|
|
|
|||
|
LED Chip
|
COB/DOB
|
|
|
|
|||
|
Housing Color
|
White / Black
|
|
|
|
|||
|
Certificates
|
CE/SAA/SASO/RoHS/CB
|
|
|
|
|||
