Quick Details
-
Description:
-
Detect Objects Movement Or Presence, Radar Module
-
Manufacturing Date Code:
-
2023-1-1
-
Model Number:
-
MS24-2020D58M4-FMCW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MoreSense
-
Theory:
-
Doppler Principle
-
Output:
-
3.3V
-
Size:
-
20*20mm
-
Sensor Type:
-
Human Presence
-
Material:
-
PCB+Components
-
Power Supply:
-
DC5V-12V
-
Detection Angle:
-
About 100 Degree
Quick Details
-
Use:
-
Human Presence Sensor
-
Series:
-
24GHz Radar Module
-
Mounting Type:
-
Welding
-
Description:
-
Detect Objects Movement Or Presence, Radar Module
-
Manufacturing Date Code:
-
2023-1-1
-
Model Number:
-
MS24-2020D58M4-FMCW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MoreSense
-
Theory:
-
Doppler Principle
-
Output:
-
3.3V
-
Size:
-
20*20mm
-
Sensor Type:
-
Human Presence
-
Material:
-
PCB+Components
-
Power Supply:
-
DC5V-12V
-
Detection Angle:
-
About 100 Degree
Product Description

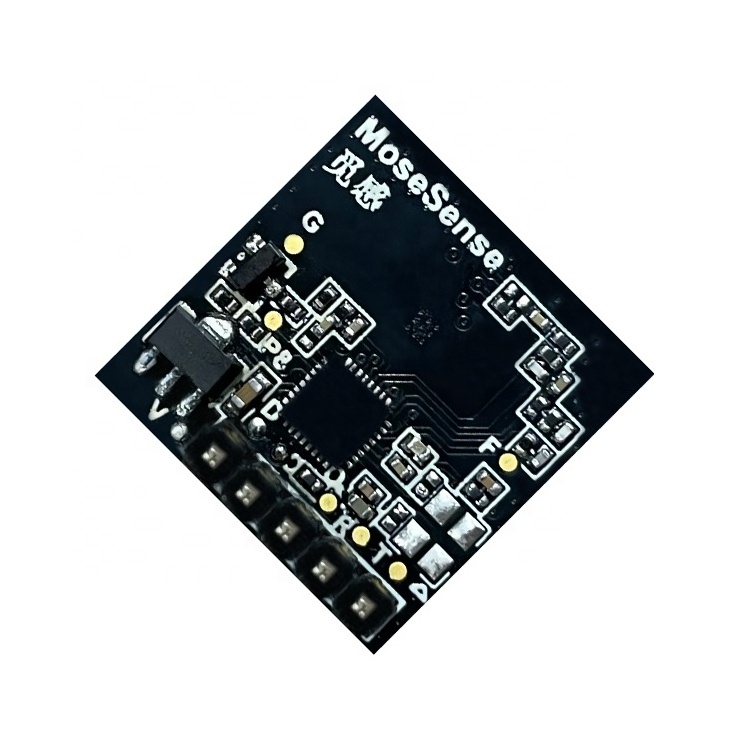

The
MS24-2020D58M4-LDO-B-ND-NLS-MCU-FMCW
is a highly sensitive 24GHz mmWave
human presence detection radar module based on the FMCW principle. This radar module is different from traditional radar module. The traditional radar module is detects and accumulates human presence by detecting the human body's large movements or small body movements. The main feature of this module is to determine the presence of a human being by detecting the accumulation of small amplitude movements such as human breathing.
Therefore, the detection of human presence is more accurate than traditional motion detection radar and less likely to be missed. Using the FMCW principle, the module can detect the distance, speed, and corresponding status information.
Module Parameter
|
Parameter
|
Value
|
|
Frequency Range
|
24.000GHz-24.250GHz
|
|
Transmit Power
|
3dBm
|
|
Antenna
|
Built-in ;Flat Antenna
|
|
Data Interface
|
GPIO/UART
|
|
Modulation Method
|
FMCW
|
|
Power Supply
|
DC5-12V(LDO Version as default);3.3V
|
|
Current
|
20mA
|
|
Power On Self-Test Time
|
2s
|
|
Sensing Output Level
|
3.3V
|
|
Silent Output Level
|
0V
|
|
Sensing Output Time
|
10s(adjustable)
|
|
Customizing the Largest Sensing Distance FOR
Motion/Movement |
About 6m
|
|
Customizing the Largest Sensing Distance FOR Human Presence
|
About 5m
|
|
Setting Parameter Method
|
UART
|
Features
Contact us
Company Introduction
Shenzhen MoreSense Technology Co.,Ltd
Customization
Product Packaging
Package Customization:
Blister Box
Or As Customers' Requirement
Related Products
FAQ
Q1: Can I have free samples?
A:Yes,3 or 5 pcs free samples can be provided.But the shipping cost and another details shall be negotiated by both sides.
Q2: Can I customize the product?
A:Our 5.8GHz or 10GHzmicrowave radar sensor module,wifi module and BLE module can be customized as your requirement.Also we support the package customization. Pls kindly tell us the related parameter requirement.
Q3. How to order?
A. Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Shipment → Further.
Q4. What is the lead time for samples?For mass products?
A:
For existing product type,the samples's lead time is about 3 days.
For
customizing(dimension,component...) products,the samples lead time is 1-2 weeks as usual.For mass products,the lead time is 3-4
weeks.
Q5:What's is your business purposes?
A:Guaranteed products' quality and good customer service with reasonable price.100%
customer satisfac
tion is trying our best to meet.
