Quick Details
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
HLINEAR
-
Model Number:
-
L6080-S-C1510
-
Place of Origin:
-
Guangdong, China
-
Power brand:
-
RLINEAR
-
Shade material:
-
PC/Opal Soft Silicon/Prismatic
-
Product Weight（kg）:
-
4.45
-
Product Dimension:
-
L1510*W60*H80mm
-
Packing Dimension:
-
L82*W30*H15mm
-
PCs/ Ctn:
-
1
-
Input Voltage(V):
-
200-240VAC
-
Lamp Luminous Flux(lm):
-
2700lm
-
Color Temperature(CCT):
-
4000K
-
Beam Angle(°):
-
105°
-
Product Name:
-
Led Light- S shape
-
Body Color:
-
White/Black
-
Optional Dimming:
-
No Dimming
-
Power:
-
27w
-
Dimension:
-
L1510*W60*H80mm
-
CCT:
-
2700~6500K
-
Advance Ra:
-
80/90/95/98
-
Certification:
-
ETL/CE/RoSH/SASO/SAA/RCM/ISO9001/ISO14001
-
Luminaire Installation:
-
Pendant/Ceiling/Recessed
-
IP Rating:
-
IP20/IP40/IP54/IP65
Quick Details
-
Design Style:
-
Modern
-
Application:
-
Office Building
-
Body Material:
-
Aluminum
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
HLINEAR
-
Model Number:
-
L6080-S-C1510
-
Place of Origin:
-
Guangdong, China
-
Power brand:
-
RLINEAR
-
Shade material:
-
PC/Opal Soft Silicon/Prismatic
-
Product Weight（kg）:
-
4.45
-
Product Dimension:
-
L1510*W60*H80mm
-
Packing Dimension:
-
L82*W30*H15mm
-
PCs/ Ctn:
-
1
-
Input Voltage(V):
-
200-240VAC
-
Lamp Luminous Flux(lm):
-
2700lm
-
Color Temperature(CCT):
-
4000K
-
Beam Angle(°):
-
105°
-
Product Name:
-
Led Light- S shape
-
Body Color:
-
White/Black
-
Optional Dimming:
-
No Dimming
-
Power:
-
27w
-
Dimension:
-
L1510*W60*H80mm
-
CCT:
-
2700~6500K
-
Advance Ra:
-
80/90/95/98
-
Certification:
-
ETL/CE/RoSH/SASO/SAA/RCM/ISO9001/ISO14001
-
Luminaire Installation:
-
Pendant/Ceiling/Recessed
-
IP Rating:
-
IP20/IP40/IP54/IP65
Product Presentation
|
Luminarie Parameters
|
|
|
|
|
||||
|
Series
|
S shape
|
|
|
|
||||
|
Profile size
|
W25/35/40/50/60/70/80/90100/120/150/200mm, H 25/35/40/60/80/100/120/150mm
|
|
|
|
||||
|
Input
|
200-240VAC/120-277VAC
|
|
|
|
||||
|
Frequency
|
50/60HZ
|
|
|
|
||||
|
Effificency
|
>90%
|
|
|
|
||||
|
Power Factor
|
P>0.92
|
|
|
|
||||
|
Flicker
|
No flicker
|
|
|
|
||||
|
Power brand
|
RLINEAR, BOKE,Lifud,Tridonic,Meanwell,Osram
|
|
|
|
||||
|
LED type
|
SMD2835/SMD3030
|
|
|
|
||||
|
Emitting Color
|
Warm White,Nature White,Day Light,Cold White
|
|
|
|
||||
|
CCT
|
2700K,3000K,3500K,4000K,5000K,6000K,6500K,RGB, RGBW
|
|
|
|
||||
|
CRI
|
>80 , >90, >95, >98
|
|
|
|
||||
|
Beam angle
|
105°
|
|
|
|
||||
|
Effificacy
|
80lm/W, 90lm/W, 100lm/w, 105lm/w, 110lm/w, 120lm/w, 150lm/w
|
|
|
|
||||
|
Lifespan
|
50,000hrs
|
|
|
|
||||
|
Diameter
|
Tolerance:±1mm
|
|
|
|
||||
|
Material
|
AL-6063
|
|
|
|
||||
|
Working Temp
|
-20-65℃
|
|
|
|
||||
|
Installation
|
Pendant, surface mounted,Recessed,wall mounted
|
|
|
|
||||
|
Dimming
|
On/Off, DALI, 0-10V, 1-10V, Triac, Tunable 2700-6500k.RMX 512, RF
|
|
|
|
||||
|
Housing Color
|
White,Black,Silver, Gold, Gray, Red,RAL Pantone custom
|
|
|
|
||||
|
Cert.
|
ETL,CE,CB,SAA, RCM,RoSH,SASO,CCC,ISO14001, ISO9001
|
|
|
|
||||
|
Size
|
Diameter/Degree
|
Power
|
Lumen
|
|
LC6080-S-600
|
D450/90°
|
10
|
1000lm
|
|
LC6080-S-895
|
D660/90°
|
15
|
1500lm
|
|
LC6080-S-1510
|
D900/120°
|
27
|
2700lm
|
|
LC6080-S-1785
|
D1060/120°
|
34
|
3400lm
|
|
LC6080-S-2030
|
D1200/120°
|
40
|
4000lm
|
|
LC-6080-S-2165
|
D1560/90°
|
40
|
4000lm
|
|
LC6080-S-2590
|
D1860/90°
|
55
|
5500lm
|
|
LC6080-S-2875
|
D2060/90°
|
60
|
6000lm
|
|
LC6080-S-3440
|
D2460/90°
|
75
|
7500lm
|
|
LC6080-S-5250
|
D3060/120°
|
120
|
12000lm
|
|
LC6080-S-5700
|
D4060/90°
|
120
|
12000lm
|
|
LC6080-S-7115
|
D5060/90°
|
160
|
16000lm
|
|
LC6080-S-8530
|
D6060/90°
|
180
|
18000lm
|
|
LC6080-S-9945
|
D7060/90°
|
240
|
24000lm
|

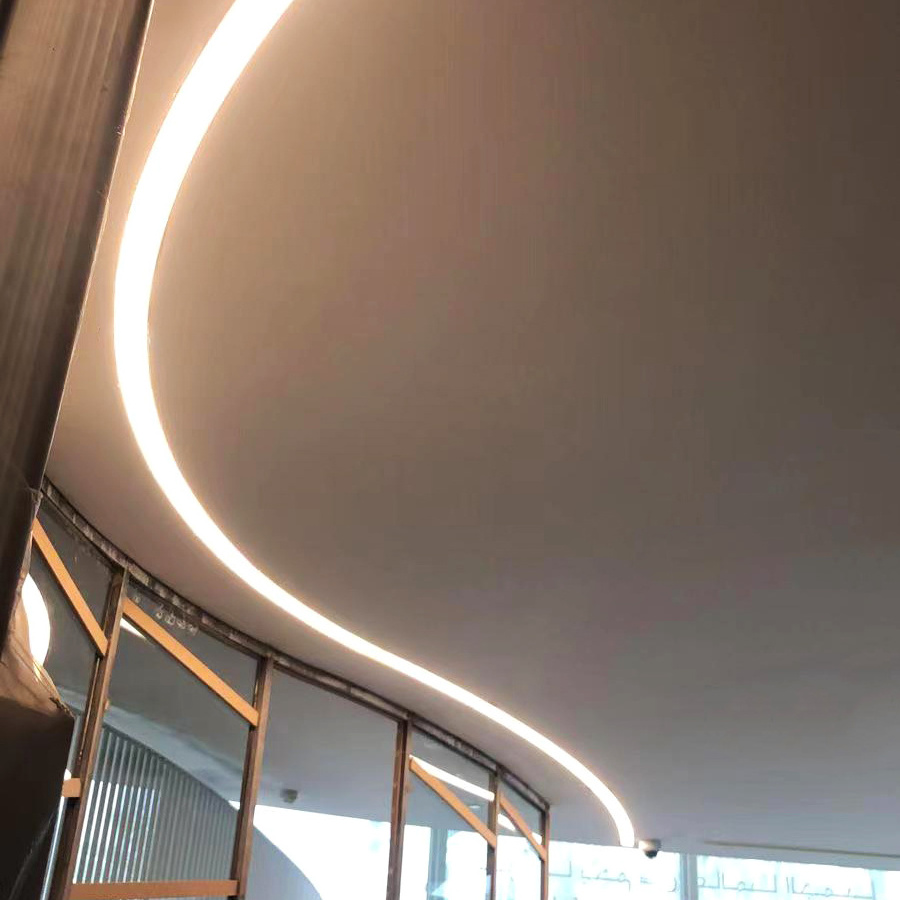

Project Case
