Quick Details
-
Type:
-
Assembled Container House
-
Advantage:
-
Fast Install
-
Feature:
-
Easily Assembled
-
Transport and load:
-
40HQ Container
-
Style:
-
Modern Simple
-
Size:
-
20FT/40FT Customized
-
Item:
-
Container House
-
Design:
-
Costom Requests
-
Layout:
-
Flexible Customized
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Xindian
-
Product name:
-
Expandable container house
-
Type:
-
Assembled Container House
-
Advantage:
-
Fast Install
-
Feature:
-
Easily Assembled
-
Transport and load:
-
40HQ Container
-
Style:
-
Modern Simple
-
Size:
-
20FT/40FT Customized
-
Item:
-
Container House
-
Design:
-
Costom Requests
-
Layout:
-
Flexible Customized
Product Paramenters
|

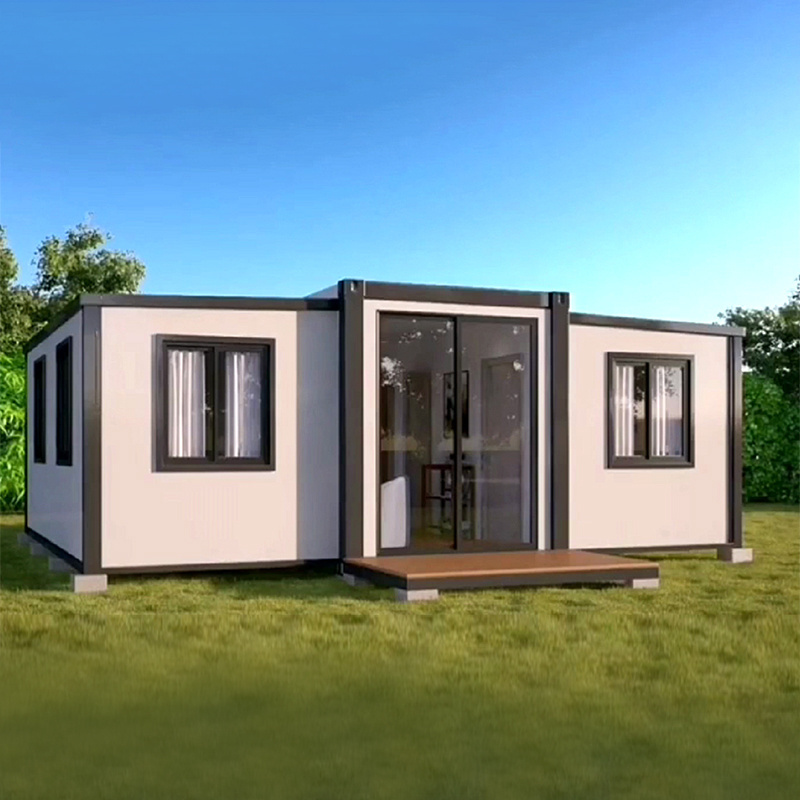

Expandable Container House
|
|
|
||
|
Size
|
External Size(mm)
|
6400mm(L)*5800mm(W)*2480mm(H)
|
||
|
|
Internal Size(mm)
|
6320mm(L) x 5900mm(W) x 2480mm(H)
|
||
|
|
Folded Size(mm)
|
2200mm(L) x 5900mm(W) x 2480mm(H)
|
||
|
|
Weight(kg)
|
1100 kg
|
||
|
|
Shipping
|
40 HQ can load 2pcs
|
||
|
Frame
|
Beam
|
t1.5mmQ235B x 5PCS
|
||
|
|
Cornner Fitting
|
t4mmQ235B
|
||
|
|
Hinge
|
13mm galvalized
|
||
|
|
Middle room purlins
|
80*100*1.5 mm
|
||
|
|
Side rooms purlins
|
40*80*1.5mm
|
||
|
Tile
|
Roof tile
|
t0.5mm galvalized steel
|
||
|
|
Ceiling tile
|
t0.25mm831 ceiling tile
|
||
|
Wall Panel
|
Roof insulation
|
t75mm glass wool sandwich panel,50mm for side rooms
|
||
|
|
wall panel
|
t50mm glass wool sandwich panel
|
||
|
|
Inside wall
|
t50mm glass wool sanwich panel
|
||
|
|
bathroom
|
1900*1000 mm
|
||
|
Floor
|
Middle room floor
|
Fireproof MGO board 15mm
|
||
|
|
Side rooms floor
|
bamboo flooring
|
||
|
Electrical system
|
installed circuit,3 led lights,9 scokets,20A circuit breakers
|
|
||
|
|
Australia style
|
|
||
|
Window
|
4 allunimium alloy window
|
|
||
Details Images
Advantages of container house:
Transport:
Convenient transportation, especially suitable for frequent replacement of construction units;
Quality & Stress resistance:
Strong and durable, all made of steel, with strong earthquake resistance, deformation resistance;
Sealing:
Good sealing performance, strict manufacturing process makes this kind of mobile house has very good water tightness
Product application scope:
The mobile home is based on a standard steel chassis, which can be derived from a number of combination Spaces. Such as conference room, dormitory, kitchen, toilet and so on. The standard width is 2. 4 meters, height 2. 2 meters, 4 to 12 meters in length.
Merits:
Convenient disassembly, superior performance, stable and firm, good shockproof performance, waterproof, fireproof and anticorrosive, light weight. The house is a whole structure, with a frame, the wall is steel plate, available wood veneer, can be migrated as a whole, the service life can reach more than 20 years.
we sale both 20ft 40ft containers / customized size is also welcomed .
The below one is just for your reference only . If you have the new project , welcome to show us ,we can custom made as your request .
