Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
GREAT WALL
-
Model Number:
-
HT100
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1200x440x530mm
-
Power (kW):
-
0.75
-
Weight (KG):
-
80 KG
-
Pipe Material:
-
Carbon Steel, Iron Pipe, PE, PVC Pipe
-
Pipe Medium:
-
Water, Oil, Gas
-
Tapping Size Range:
-
DN50, 65, 80, 100mm
-
Working Pressure:
-
10bar, 16bar, 25bar
-
Stroke:
-
300mm
-
Spindle Speed:
-
53 r/mm
-
Transmission mode:
-
Electrical
-
Rated power:
-
0.75 Kw
-
Feeding mode:
-
Manual
-
Tapping Time:
-
15-30min
Quick Details
-
type:
-
Column Drilling Machine
-
Max. Drilling Dia. (mm):
-
100
-
Range of Spindle Speed(r.p.m):
-
52 - 53 r.p.m
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
GREAT WALL
-
Model Number:
-
HT100
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1200x440x530mm
-
Power (kW):
-
0.75
-
Weight (KG):
-
80 KG
-
Pipe Material:
-
Carbon Steel, Iron Pipe, PE, PVC Pipe
-
Pipe Medium:
-
Water, Oil, Gas
-
Tapping Size Range:
-
DN50, 65, 80, 100mm
-
Working Pressure:
-
10bar, 16bar, 25bar
-
Stroke:
-
300mm
-
Spindle Speed:
-
53 r/mm
-
Transmission mode:
-
Electrical
-
Rated power:
-
0.75 Kw
-
Feeding mode:
-
Manual
-
Tapping Time:
-
15-30min
Product Description

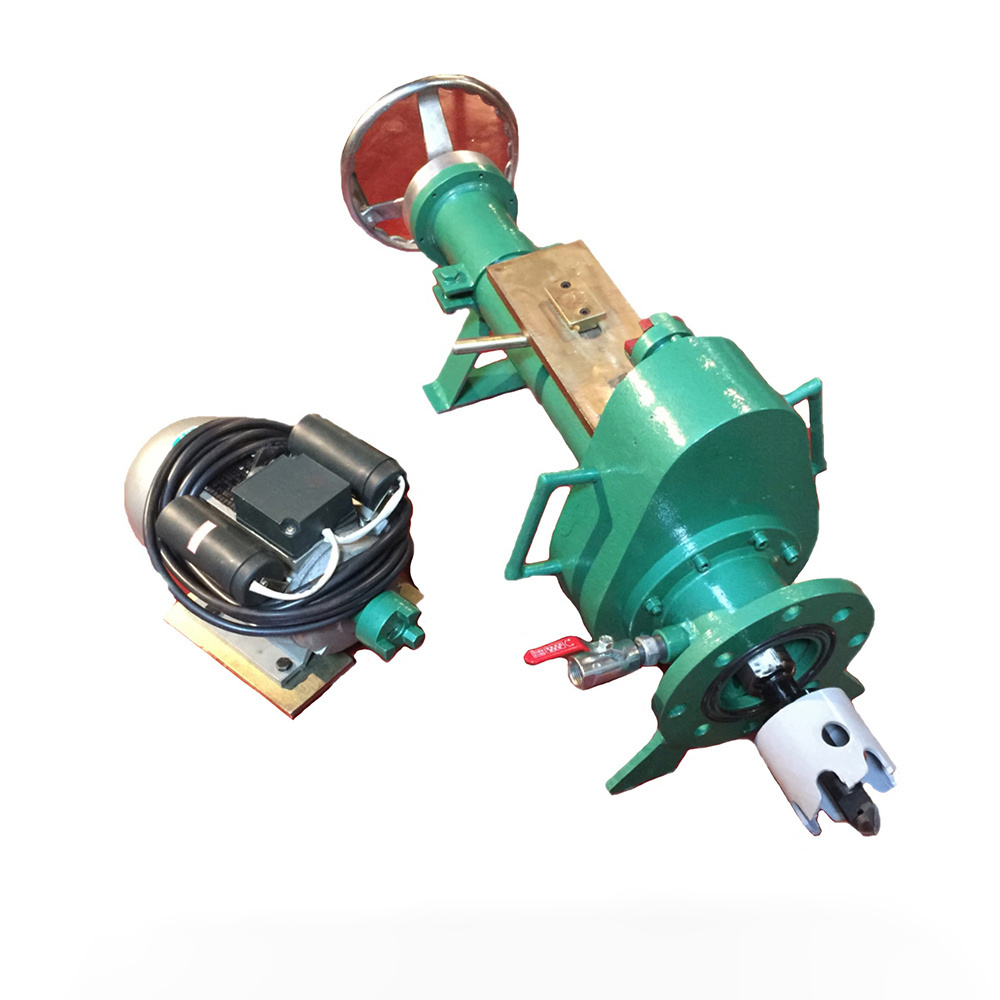

Electric Hot Tapping Machine
is the special equipment which used for drilling on pipeline or tank
under pressure
for branch connection without interruption of service . It is suit for water, oil, gas, steam service lines with the maximum pressure rating up to 25 bar and the medium temperature within 200℃
|
Model
|
HT100
|
|
Tapping Range
|
2‘’- 4‘’
|
|
Working Pressure
|
≤ 25 bar
|
|
Working Temperature
|
≤ 200℃
|
|
Pipe Medium
|
Water,Oil,Gas,Steam...
|
|
Pipe Material
|
Steel,Iron,Plastic,Concrete Pipe..
|
|
Spindle Transimission
|
Electric
|
|
Feed Mode
|
Manual
|
|
Connection with Valve
|
Flange Connection
|
|
Flange Standard
|
BS or ASME
|
|
Working Stroke
|
370
|
|
Spindle Speed
|
53 r/min
|
|
Motor Voltage
|
single phase, 0.75Kw, 220V
|
|
Feed Volume
|
0.07-0.2 mm/r
|
|
Size (mm)
|
820x370x460
|
|
Weight (kgs)
|
42
|
Technical Specification
|
Model
|
Range of Hot Tapping Size
|
Drive Mode
|
Feed Mode
|
Feed Volume
|
Working Stroke
|
Spindle Speed
|
Motor Power
|
Motor Voltage
|
Tapping Time
|
|
|
mm/inch
|
|
|
mm/r
|
mm
|
RPM
|
Kw
|
V
|
min
|
|
HT50
|
DN25-DN50 3/4''-2''
|
Manual
|
Manual
|
1.5
|
240/350
|
/
|
/
|
/
|
10-20
|
|
HT100
|
DN50-DN100 2''-4''
|
Electric
|
Manual
|
0.07-0.2
|
370
|
53
|
0.75
|
220
|
15-30
|
|
HT200
|
DN100-DN200 4''-8''
|
Electric
|
Manual
|
0.07-0.2
|
500
|
40
|
1.5
|
220
|
15-30
|
|
HT200
|
DN50-DN200 2''-8''
|
Electric
|
Manual
|
0.07-0.2
|
500
|
40
|
1.5
|
220
|
15-30
|
|
HT300
|
DN100-DN300 4''-12''
|
Electric
|
Manual
|
0.07-0.2
|
600
|
40
|
1.5
|
220/380
|
15-30
|
|
HT400
|
DN250-DN400 10''-16''
|
Electric
|
Manual
|
0.07-0.15
|
600/800
|
30
|
1.5
|
380
|
15-40
|
|
HT600
|
DN500-DN600 20''-24''
|
Electric
|
Manual/Automatic
|
0.3
|
900
|
30
|
4
|
380
|
30-60
|
|
HT800
|
DN500-DN800 20''-32''
|
Electric
|
Manual/Automatic
|
0.3
|
1000
|
20
|
7.5
|
380
|
40-80
|
|
HT1000
|
DN500-DN1000 20''-40''
|
Electric
|
Manual/Automatic
|
0.3
|
1250
|
20
|
7.5
|
380
|
120-180
|
|
HT1600
|
DN1000-DN1600 40''-64''
|
Electric
|
Manual/Automatic
|
0.15-4
|
1450/2000
|
12
|
15
|
380
|
120-180
|
