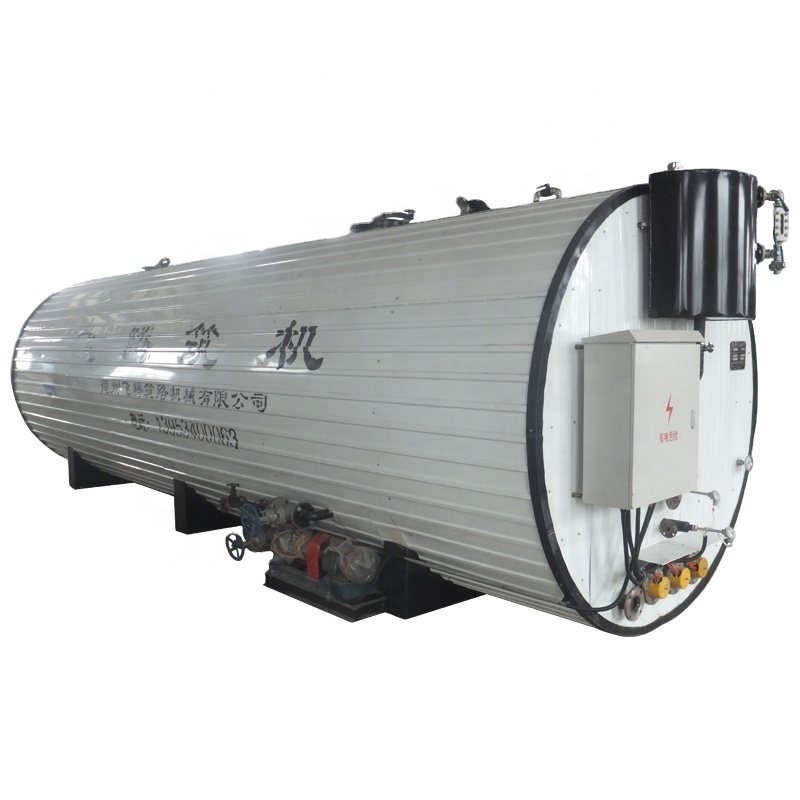

Asphalt Mixing Plant Electrical Heating Bitumen Storage Tank

Asphalt Mixing Plant Electrical Heating Bitumen Storage Tank

FOB Reference Price: Get Latest Price

≥1 Sets

US $30000

≥3 Sets

US $29000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: FEITENG

Dimension(L*W*H):: diameter 2.7 m * length 12 m

Weight:: 7000

Product name:: Electric Heating Bitumen Storage Tank

Usage:: conventional asphalt heating

Function:: Bitumen storage Asphalt heating

Advantage:: Warming up faster

Shipping:: in bulk

Material:: Stainless Steel Carbon Steel

Heating:: Electric Heating

Shape:: Horizontal cylinder

Application:: Road construction

After-sales Service Provided:: Online Video Technical Support

Quick Details

Capacity:: 35m³

Max Working Pressure(MPa):: 1.84 MPa

Place of Origin:: Shandong, China

Brand Name:: FEITENG

Dimension(L*W*H):: diameter 2.7 m * length 12 m

Weight:: 7000

Product name:: Electric Heating Bitumen Storage Tank

Usage:: conventional asphalt heating

Function:: Bitumen storage Asphalt heating

Advantage:: Warming up faster

Shipping:: in bulk

Material:: Stainless Steel Carbon Steel

Heating:: Electric Heating

Shape:: Horizontal cylinder

Application:: Road construction

After-sales Service Provided:: Online Video Technical Support

Product Description

YZSL series fuel automatic double heating bitumen storage tank is an energy saving, environmental protection and high automatic
performance product carefully designed by our company in order to meet the increasing requirements of energy saving and
environmental protection in our country, and to improve the civilized production level of bitumen storage and heating process,
combined with the rich experience accumulated in the field of asphalt heating over the years.

This equipment is combined the bitumen tank and heat thermal oil boiler as a complete unit. It can heat bitumen and also can
provide high temperature heat thermal oil.

Product Paramenters

Item	Parameter
Heating	Diesel burner, heat transfer oil, Baltur 26P
Heating rate	20 ℃/hour
Oil consumption per ton bitumen	3-5 kg, continuous working
Highest bitumen temperature	200 ℃
Total volume	≥30 cbm
Dimensions	diameter 2.2*11.9 m, horizontal cylinder
Landing leg	Longitudinal entire
Bitumen pump flow rate	25 cbm/h
Total power	≈10 kw
Power requirements	380 V 50 Hz AC power
Heat transfer oil working temperature	180-240 ℃
Heat transfer oil pump flow rate	10 cbm/h
Bitumen temperature control	Automatic temperature control
Heat transfer oil temperature control	Automatic temperature control
