Quick Details
-
Material:
-
ABS material
-
Dimensions:
-
42 inch
-
size:
-
42 inch
-
Power:
-
40W
-
Solar panel:
-
40W(495*495*25mm)
-
motor:
-
24V brushless dc motor
-
Fan blade:
-
42 inch,ABS material,3 blades, 6"&10" fan booms
-
AC/DC adapter:
-
24V,1.5A,
-
LED light:
-
10W
-
Romote controller:
-
turn on / off the fan and led light
-
Wire length:
-
15m (connect the fan and solar panle)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIPL
-
Model Number:
-
SN2017025
-
Material:
-
ABS material
-
Dimensions:
-
42 inch
-
size:
-
42 inch
-
Power:
-
40W
-
Solar panel:
-
40W(495*495*25mm)
-
motor:
-
24V brushless dc motor
-
Fan blade:
-
42 inch,ABS material,3 blades, 6"&10" fan booms
-
AC/DC adapter:
-
24V,1.5A,
-
LED light:
-
10W
-
Romote controller:
-
turn on / off the fan and led light
-
Wire length:
-
15m (connect the fan and solar panle)
Product Description

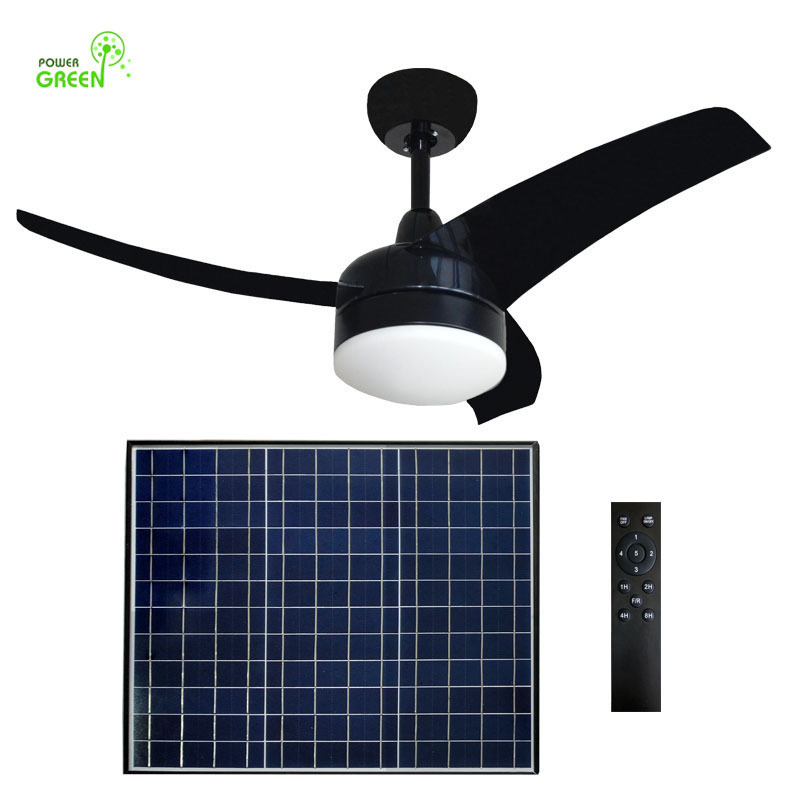

The Ceiling Fan
here will look similar to those conventional units that have been running around us, but our quality will surely better satisfy you in it doesn't consume grid electricity during sunny hours, while it carries an efficient low voltage (24V) low current brushless DC motor to highly guarantee the safety as well as the performance.
When provide cooling / ventilating services, this ceiling fan includes a 10W LED Panel to also bring you lighting fulfillment, and the system here contains a Remote Controller so that you can have the fan run / stop flexibly, as well as to have the LED panel light on / off freely.
Moreover, this system can allow the fan & LED panel continue working even in sunless periods, under some energy backup from grid electricity!
When provide cooling / ventilating services, this ceiling fan includes a 10W LED Panel to also bring you lighting fulfillment, and the system here contains a Remote Controller so that you can have the fan run / stop flexibly, as well as to have the LED panel light on / off freely.
Moreover, this system can allow the fan & LED panel continue working even in sunless periods, under some energy backup from grid electricity!
Benefit:
✔Solar power supply, Energy saving & Eco friendly .
✔Brushless DC Motor, Quiet Operation , Efficiently and long lifespan.
Electrical Features:
|
Solar Panel
|
40W/25.5V, polycrystalline 495*495*25mm, tilting & angle adjustable
|
|
Fan Blades
|
42 inch, 3 blades (ABS fan blade)
|
|
Fan Motor
|
Brushless DC Motor, working voltage 16V-25.5V according to the solar panel input,
motor speed 70~290 RPM according to the sunlight condition, include a Remote Controller for 5 rates manual speed control |
|
LED Panel
|
10W/24V, can be turned on/off flexibly by the Remote Controller
|
|
AC/DC Power Adapter
|
100V-240V AC input, for 24V*1.5A DC outputthe fan/LED won't consume grid electricity during sunny day hours, this power adapter would get involved to work only when sunlight is weak & when it's completely night time，include 6m cable
|
|
Remote Controller
|
it provides many manual controlling functions to the product
|
|
Function & Work Time
|
Air Cooling / Ventilating + Lighting use
Running / Lighting F.O.C in day time under solar panel supply, and continue the jobs at night time under some grid electricity backup |
Product Images：
Remote Controller :
AC/DC adapter :
100V-240V AC input, for 24V*1.5A DC outputthe, The fan and LED won't consume grid electricity during sunny day hours,this power adapter would get involved to work only when sunlight is weak & when it's completely night time.
|
Input Motor Voltage
|
24V(solar Panel voltage variable 16-25.5V)
|
|
|
|
|
||||
|
Rate(1-5 speeds)
|
1
|
2
|
3
|
4
|
5
|
||||
|
Motor Current (A)
|
0.11
|
0.19
|
0.27
|
0.48
|
0.72
|
||||
|
Motor Power (W)
|
2.64
|
4.56
|
6.48
|
11.52
|
17.28
|
||||
|
Motor Speed (RPM)
|
98
|
150
|
180
|
232
|
268
|
||||
|
LED Current (A)
|
|
|
0.27
|
|
|
||||
|
LED Power (W)
|
|
|
6.48
|
|
|
||||
|
Total Power (W)
|
9.12
|
11.04
|
12.96
|
18
|
23.76
|
||||
attention: the System Smart Controller will assure the fan can always have sufficient power to run properly, which means the light will sometimes not be lit-on should grid electricity is out from backup supply)
Warranty:
|
Product Part
|
Designed Lifespan
|
Warranty
|
|
Solar Panel
|
designed lifespan > 25 years
|
warranty: 15 years
|
|
Battery
|
designed lifespan > 8 years
|
warranty: 2 years
|
|
Fan Host
|
designed lifespan > 20 years
|
warranty: 15 years
|
|
Fan Motor / Systematic Controller / Remote Controller
|
designed lifespan > 10 years
|
warranty: 5 years
|
* The hereby lifespan & warranty terms are based on the product be used in regular residential housings, but not in those too humid or extreme condition places with acid and alkali corrosive gas/liquids.
