Quick Details
-
Model Number:
-
RTS102
-
Field of view:
-
1°30'
-
Reflectorless distance:
-
1000m
-
Single prism:
-
2.0 to 5000m
-
Magnification/ Resolution:
-
30x/ 3.75"
-
Data transfer:
-
mini-USB, RS-232C or SD card
-
Laser class prism:
-
Class 1
-
Accuracy:
-
2"
-
Compensator:
-
dual axis
-
setting accuracy:
-
1"
-
Battery:
-
3400mAh Li-ion Rechargeable
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
FOIF
-
Model Number:
-
RTS102
-
Field of view:
-
1°30'
-
Reflectorless distance:
-
1000m
-
Single prism:
-
2.0 to 5000m
-
Magnification/ Resolution:
-
30x/ 3.75"
-
Data transfer:
-
mini-USB, RS-232C or SD card
-
Laser class prism:
-
Class 1
-
Accuracy:
-
2"
-
Compensator:
-
dual axis
-
setting accuracy:
-
1"
-
Battery:
-
3400mAh Li-ion Rechargeable
Product Description

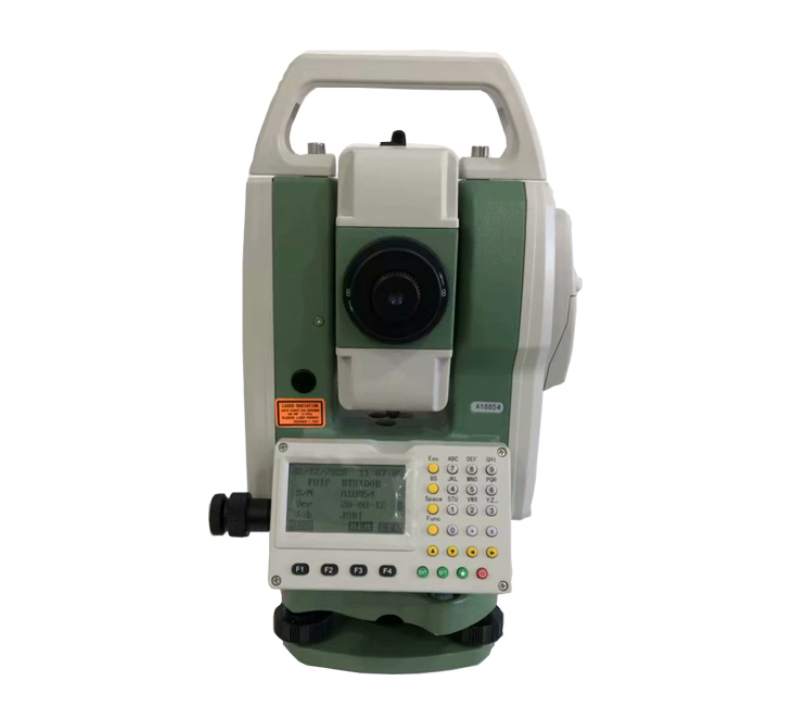

Global version surveying instrument FOIF RTS102 total station
|
Technical data
|
|
|
|
Telescope
|
|
|
|
|
Erect
|
|
|
Length/ Image
|
156mm/ Erect
|
|
|
Objective aperture
|
45mm
|
|
|
Magnification
|
30x
|
|
|
Field of view
|
1°30’
|
|
|
Shortest focus distance
|
1.0m
|
|
|
Angle measurement
|
|
|
|
Reading system
|
Absolute encoder
|
|
|
Angle unit
|
360°/400gon/6400mil, selectable
|
|
|
Display resolution
|
1”/5”/10”(or 0.2mgon /1 mgon /2mgon)
|
|
|
Accuracy*
|
2”
|
|
|
Distance measurement (R800)
|
|
|
|
Laser class(iec60825-1)
|
|
|
|
Reflectorless
|
Class 3A(3R)
|
|
|
Reflective sheet/RP60
|
Class 3A(3R)
|
|
|
Prism
|
Class 1
|
|
|
Measurement range
|
|
|
|
Reflectorless*
|
2.0 to 800m
|
|
|
Single prism
|
2.0 to 5000m
|
|
|
Accuracy
|
|
|
|
Prism
|
2mm+2ppm
|
|
|
Reflective sheet/ RP60
|
3mm+2ppm
|
|
|
Reflectorless
|
3mm+2ppm
|
|
|
Measuring time(prism)
|
|
|
|
Tracking
|
0.4 sec
|
|
|
Fast
|
0.6 sec
|
|
|
Fine
|
1.0 sec
|
|
|
Display resolution(m/inch selectable)
|
0.2mm
|
|
|
Temperature input range
|
－40℃ to +60℃ (1℃ steps)
|
|
|
Pressure input range
|
500hPa to 1500hPa (1hPa steps)
|
|
|
Prism constant correction
|
-99.9mm to +99.9mm
|
|
|
Compensator
|
Dual-axis
|
|
|
Range
|
±3'
|
|
|
Setting accuracy
|
1"
|
|
|
Level vial sensitivity
|
|
|
|
Plate level vial
|
30"/2mm
|
|
|
Circular level vial
|
8"/2mm
|
|
|
Laser plummet(Standard)*
|
|
|
|
Accuracy
|
±1mm/1.5m
|
|
|
Laser class
|
Class 2/IEC60825-1
|
|
|
Laser spot brightness
|
Adjustable
|
|
|
Laser wave length
|
635nm
|
|
|
Optical plummet (Factory Optional)
|
|
|
|
Accuracy
|
±0.8mm/1.5m
|
|
|
|
Erect
|
|
|
Magnification/ Field of view
|
3x/4°
|
|
|
Focus range
|
0.5m to
|
|
|
Power
|
|
|
|
Battery
|
3400mAh Li-ion Rechargeable
|
|
|
Output voltage
|
7.4VDC
|
|
|
Continuous operation time
(angle measurement)
|
Approx. 24 hours (At +20℃)
|
|
|
Charger
|
FDJ6-LI
|
|
|
Chargering time (at+20)
|
Approx.4hours
|
|
|
Application progarms
|
|
|
|
Data collection/Stake out/Resection/REM/MLM AREA/Point to line/Z coordinate/OFFset/ROAD/Tranverse
|
|
|
|
Others
|
|
|
|
Display
|
LCD, 6 lines *20characters (96*160dots)
|
|
|
CPU
|
32Bit
|
|
|
Memory
|
120000 points, support SD card (max. 16G)
|
|
|
Keyboard
|
Alphanumerucal keyboard on both sides
|
|
|
Weight(including batteries)
|
5.1 kg
|
|
|
Operating temperature
|
－20℃to+50℃
|
|
|
Storage temperature
|
－40℃to+70℃
|
|
|
Interface
|
USB/RS-232C/Bluetooth(Factory Optional)
|
|
|
Water and dust protection
|
IP66 (IEC60529)
|
|
|
Data collector
|
F58 ,fully rugged PDA (Optional)
|
|
