Quick Details
-
Brand Name:
-
DARO
-
Load capacity:
-
13T-25T
Quick Details
-
Max Payload:
-
16ton
-
Size:
-
1840mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DARO
-
Load capacity:
-
13T-25T
Products Description

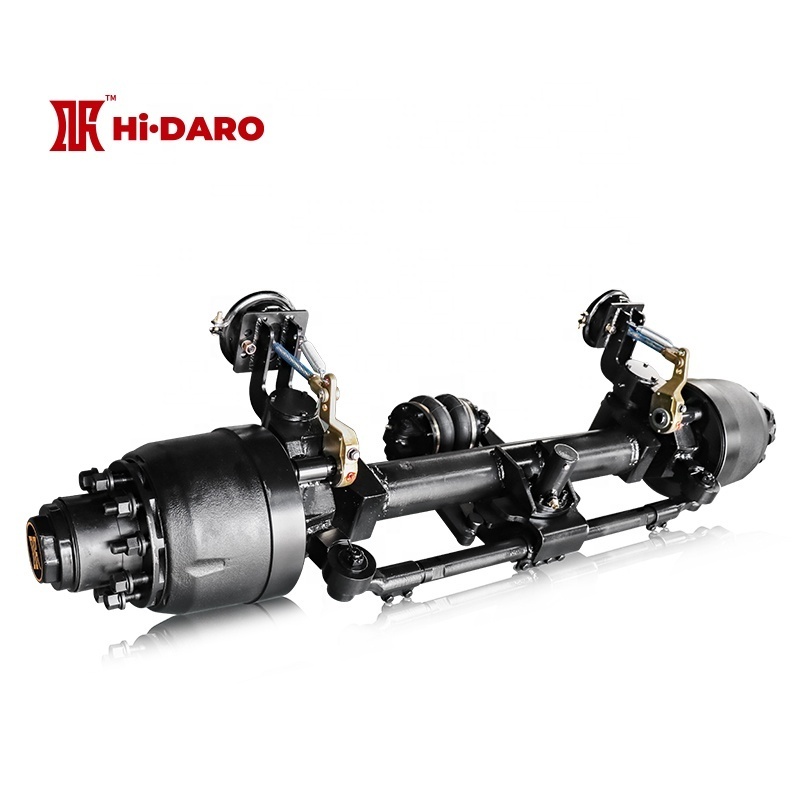

American low flat servo steering axle assembly
Improve vehicle handling:
The servo steering axle can automatically adjust the steering Angle of the axle according to the speed and steering Angle, making the vehicle turn more smoothly and flexibly, and improving the driving handling.
Product Paramenters
|
Model
|
Max.Capacity
(Tons)
|
Axle Beam Size
|
Brake
|
Track
(mm）
|
Studs
(mm）
|
P.C.D
(mm）
|
φH
(mm）
|
Bearing
|
外轴承Outer）
|
|
|
DRT11T1950YAA03N04
|
11.5
|
φ127×16
|
311×190
|
1950
|
IS0-10×M22×1.5
|
225
|
176
|
Inner:
HM518445/10
|
outer:
HM518445/10
|
|
Noted:
1. The Trailer Axle track can be customized according to customer requirements
2. Axles can install ABS brake.
3. Axles can install Air brake chamber
1. The Trailer Axle track can be customized according to customer requirements
2. Axles can install ABS brake.
3. Axles can install Air brake chamber
Details Images
Reduced turning radius
The servo steering axle allows the vehicle to reduce the turning radius when turning, which is particularly useful in narrow roads or complex road conditions, making it easier to negotiate narrow junctions or curves.
Increase vehicle stability:
The servo steering axle can improve the stability of the vehicle when turning, reduce the risk of rolling and oversteering, and improve driving safety.
Reduce tire wear
The servo steering axle can make the vehicle more stable when turning, reduce the side wear of the tire, and extend the service life of the tire.
Application scenario
It can be applied to a variety of vehicle modification and cargo transportation scenarios, and can be used as the chassis
traveling mechanism of different transportation vehicles. The product design complies with industry standards, all parts are interchangeable, and after-sales maintenance is convenient. The axle tube has been quenched and heat treated to improve the rigidity and fatigue strength of the axle, resulting in better overall performance. The double treatment of primer and topcoat has strong anti-moisture, anti-corrosion and anti-oxidation capabilities, and better isolates external erosion. Multiple quality inspection methods such as fatigue test, salt spray test, and magnetic particle flaw detection test are the guarantee of axle quality.
traveling mechanism of different transportation vehicles. The product design complies with industry standards, all parts are interchangeable, and after-sales maintenance is convenient. The axle tube has been quenched and heat treated to improve the rigidity and fatigue strength of the axle, resulting in better overall performance. The double treatment of primer and topcoat has strong anti-moisture, anti-corrosion and anti-oxidation capabilities, and better isolates external erosion. Multiple quality inspection methods such as fatigue test, salt spray test, and magnetic particle flaw detection test are the guarantee of axle quality.
Package & Delivery
1. Special packing :
The wheel hub is packed in highly elastic pearl cotton, prevent collisions during transport.
Bolts and cap has a protective cover belong to itself.
Hubs are wrapped by the stretch film to prevent damage.
2. In stock:
Large quantity and different parameters products in stock, and keep 1,000 stocks at any time
Guarantee that takes delivery of goods in stock within seven days.
Large-scale warehouse provides space for other parts.
3. Take Delivery:
All the product will be fully tested before shipment.
Professional operation instruction of the machine.one-year warranty provided, provide the consumable parts at cost price after the
warranty period.
24-hour technical support by emails, calling or videos.4、Our Services
1.Semi-trailer axles, including American type and German type.
2.Bogie(Singe Point Suspension). free technical support
3.Mechanical Suspension, Air Suspension
4.Spare parts for semi-trailers.
5.Global customer design & support services
The wheel hub is packed in highly elastic pearl cotton, prevent collisions during transport.
Bolts and cap has a protective cover belong to itself.
Hubs are wrapped by the stretch film to prevent damage.
2. In stock:
Large quantity and different parameters products in stock, and keep 1,000 stocks at any time
Guarantee that takes delivery of goods in stock within seven days.
Large-scale warehouse provides space for other parts.
3. Take Delivery:
All the product will be fully tested before shipment.
Professional operation instruction of the machine.one-year warranty provided, provide the consumable parts at cost price after the
warranty period.
24-hour technical support by emails, calling or videos.4、Our Services
1.Semi-trailer axles, including American type and German type.
2.Bogie(Singe Point Suspension). free technical support
3.Mechanical Suspension, Air Suspension
4.Spare parts for semi-trailers.
5.Global customer design & support services
