Quick Details
-
Lift Speed:
-
0.8-5 m/min
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Up to load:
-
800Kg - 80 000Kg
-
Voltage::
-
200-480v
-
Application::
-
Single girder overhead cranes
-
Power supply::
-
3 Phase AC 380V 50HZ
-
Working class:
-
M4~M7
-
Certification:
-
ISO,CE,BV,GOST,TUV,RTN
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Finework, Finework
-
Lift Speed:
-
0.8-5 m/min
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Up to load:
-
800Kg - 80 000Kg
-
Voltage::
-
200-480v
-
Application::
-
Single girder overhead cranes
-
Power supply::
-
3 Phase AC 380V 50HZ
-
Working class:
-
M4~M7
-
Certification:
-
ISO,CE,BV,GOST,TUV,RTN

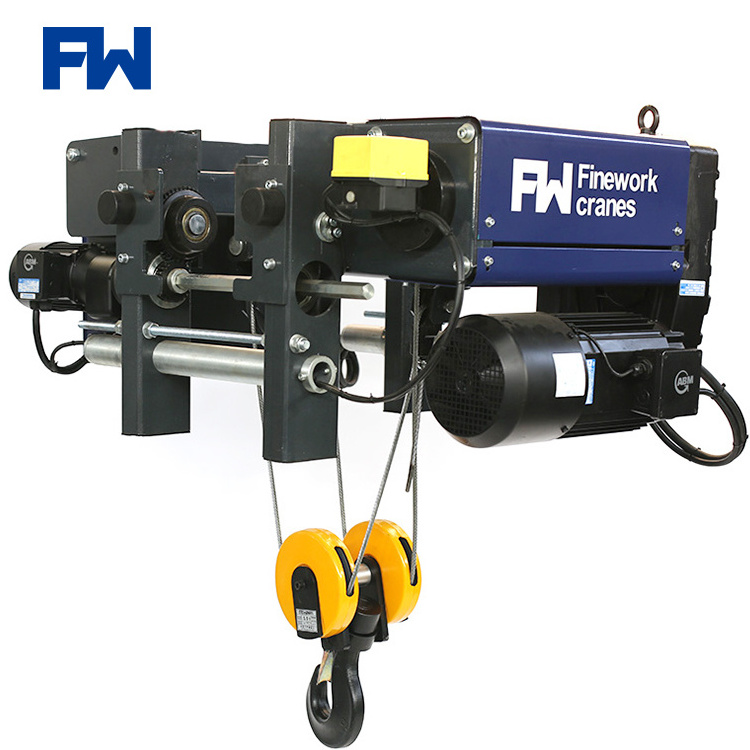

Electric Cable Hoist For Construction Concrete Lifting Machine
European Standard Electric Hoist is a special lifting equipment, mounted on the overhead cranes, gantry cranes. It with small size, light weight, simple operation, easy to use features, usually be used in industrial and mining enterprises, storage terminals and other places. It is with low headroom hoist trolley, which is installed on the bottom flange of the main beam. The low headroom hoist allows maximum effective use of the available lifting height.
|
Rated load S.W.L (Kg) |
Work level |
Lifting Height |
Lifting speed |
traveling speed
|
|
|
|
FEM |
ISO |
m |
m/min |
m/min |
|
2000 |
1AM-4M |
M3-M6 |
6/9/12/15/18 |
0.8/5 |
2~20 |
|
3200 |
1AM-4M |
M3-M6 |
6/9/12/15/18 |
0.8/5 |
2~20 |
|
5000 |
1AM-4M |
M3-M6 |
6/9/12/15/18 |
0.8/5 |
2~20 |
|
6300 |
1AM-4M |
M3-M6 |
6/9/12/15/18 |
0.8/5 |
2~20 |
|
8000 |
1AM-4M |
M3-M6 |
6/9/12/15/18 |
0.8/5 |
2~20 |
|
10000 |
1AM-4M |
M3-M6 |
6/9/12/15/18 |
0.8/5 |
2~20 |
|
12500 |
1AM-3M |
M3-M5 |
6/9/12/15/18 |
0.8/5 |
2~20 |
|
16000 |
1AM-3M |
M3-M5 |
6/9/12/15/18 |
0.66/4 |
2~20 |
|
20000 |
1AM-3M |
M3-M5 |
6/9/12/15/18 |
0.66/4 |
2~20 |
Henan FineWork Cranes Co.,Ltd is a professional manufacturer and service supplier of material handling equipment integrating R&D, design, manufacturing, marketing, installation and maintenance; it is also one of the most influential brand in Chinese crane industry.
Our products include EOT cranes, gantry crane, jib crane, electric hoist, and other types of cranes like explosion - proof, insulation, metallurgy and foundry, etc.
Over the years we always dedicated to develop and manufacture high quality crane and hoist, our European type cranes and electric hoists fully comply to FEM/DIN standard. We have acquired the certificates of IS09001, ISO14001, and CE, etc.
Our products have been exported to USA, Britain, Mexico, Argentina, Peru, Russia, Indonesia, Thailand, India, Vietnam, and other countries and regions.
Innovation is infinity, the high reputation is our eternal pursuing. We welcome you to visit here and cooperate with us. Let us create a beautiful living space with sincerity and wisdom to make win - win benefits come true.
1.Is your products customized?
Thanks for your question, yes.because the working condition is different, all our products are customized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.
2.What the information should i provide when i am inquiry?
Thanks for your question, the more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much appreciated.
3.How many operation methods for my selection?
Thanks for question. The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabinet.
4.The space of my workshop is limited, can the crane is ok for me?
Thanks for your question. For low headroom workshop, we have special products. The details dimension our engineer will be design for you.
5.Do your side can provide lifting tools?
Thanks for your question. Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab...
