Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AWON
-
Transmission:
-
Gearbox transmission
-
Color:
-
Upon your request
-
Main Market:
-
Europe,North and South American,Australia
-
PTO Speed:
-
540r/min
-
Power Required:
-
90-120HP
-
Working width:
-
2400 mm
-
ODM;OEM:
-
provided
-
Linkage:
-
Three Point Mounted
-
Drive type:
-
Tractor Hydraulic
Quick Details
-
Weight (KG):
-
772
-
Type:
-
Flail mower
-
Use:
-
mowing weeds
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AWON
-
Transmission:
-
Gearbox transmission
-
Color:
-
Upon your request
-
Main Market:
-
Europe,North and South American,Australia
-
PTO Speed:
-
540r/min
-
Power Required:
-
90-120HP
-
Working width:
-
2400 mm
-
ODM;OEM:
-
provided
-
Linkage:
-
Three Point Mounted
-
Drive type:
-
Tractor Hydraulic

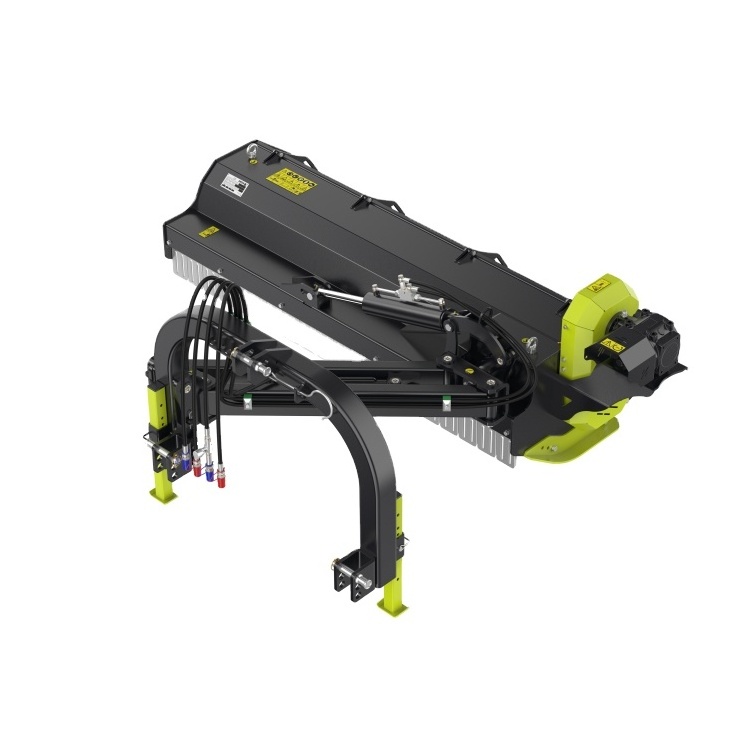

Awon Rear-Side Flail Mower
SFM rear-side series are rear mounted,PTO driven flail mowers for tractors. 10 models in total,working width varies from 1,200 to 2,400mm,power demand 25-130HP.SFM series can be typically aggregated with tractors with 3-point hitch of Cat.Ⅰor Ⅱ.SFM with paralellogram arm, enables operation in-line or at the side of the tractor.Down-tilt angle can reach up to 45°, which is perfect whenever road shoulders and slopes need to be mowed (tilt angle between -45°; +90°).SFM series are specially designed for carriageway maintenance,green belts,scarps,embankments,road shoulders or ditches.
The mowers cut the grass and spread it properly crumbled along the whole width of the cut surface.It enables forming a natural swath and plant offcut mineralization.
The mowers cut the grass and spread it properly crumbled along the whole width of the cut surface.It enables forming a natural swath and plant offcut mineralization.
Standard Equipment
Shaft with double flail spiral• Overrunning clutch integrated with gearbox• Mechanical
safety breakaway device • Mowing height adjustment with ground following bar • Wide-angle PTO shaft • Automatic tension of V-belts •Hammer Blades•3-point hitch
safety breakaway device • Mowing height adjustment with ground following bar • Wide-angle PTO shaft • Automatic tension of V-belts •Hammer Blades•3-point hitch
|
Model
|
SFM180
|
SFM200
|
SFM`220
|
SFM240
|
|
Weight(Kg)
|
679
|
712
|
743
|
772
|
|
Cutting Width(mm)
|
1800
|
2000
|
2200
|
2400
|
|
PTO Input Speed
|
540
|
540
|
540
|
540
|
|
Number of blades
|
16
|
18
|
20
|
22
|
|
Power required(HP)
|
90-120
|
90-120
|
90-120
|
90-120
|
1.Boom reach up:
up to 90°，down to -45°
2.Boom reach out:
80 degrees offset
3.Transport:
AWON series transport places the cutter head to the rear of the tractor for optimum operator visibility
4.Operation:
1)Enables rise of the machine when obstacle is met
2)Owing to the paralellogram arm works perfectly for heavy-duty
road maintenance Assignments
road maintenance Assignments
