Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ZJT
-
Model Number:
-
zjt-12
-
Usage:
-
exterior,interior,floor,roof,partition
-
Length:
-
610mm
-
Long:
-
2270mm/2440mm
-
Thickness:
-
60mm/75mm/90mm/100mm/120mm/150mm
-
fireproof:
-
4-5 hours
-
waterproof:
-
yes
-
Advantage:
-
fast installation
-
feature:
-
Lightweight and reusable
-
warranty:
-
5 years
Quick Details
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
ZJT
-
Model Number:
-
zjt-12
-
Usage:
-
exterior,interior,floor,roof,partition
-
Length:
-
610mm
-
Long:
-
2270mm/2440mm
-
Thickness:
-
60mm/75mm/90mm/100mm/120mm/150mm
-
fireproof:
-
4-5 hours
-
waterproof:
-
yes
-
Advantage:
-
fast installation
-
feature:
-
Lightweight and reusable
-
warranty:
-
5 years
cheaper lightweight/fireproof eps concrete wall interior walls for Prefabricated house building eps concrete foam sandwich panel
You are so lucky to be here and get to know the best substitute to traditional concrete wall, it is called ZJT eps cement sandwich panel. Comparison with other wall materials, this one is more stronger and longer life span with many advantages and wide usages.

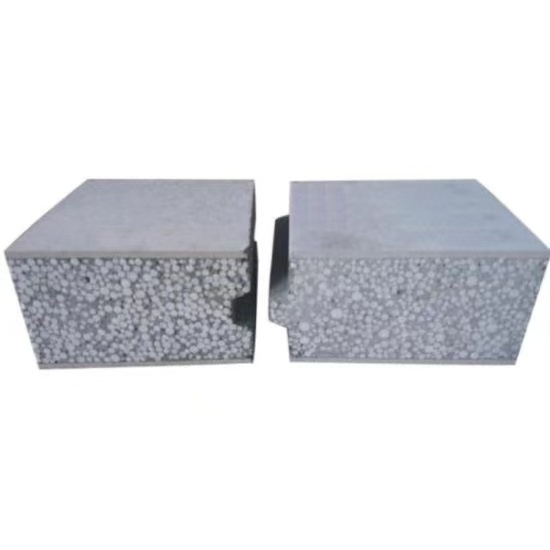

What is EPS cement Sandwich Panel ?
Sandwich panel is a kind of lightweight energy saving wall material, which uses cement calcium silicate or reinforced calcium silicate board as face panel, filled with cement, EPS polystyrene foam particles, and as core material and forming by one time compound .such as sandwich panel roofing sheets. The product can replace construciton materials like red brick , clay solid brick , air brick , color-coated steel sandwich board , gypsum block ; wire spatial grid structure perlite board , perlite porous board etc. It can be widely applied to various high and low buildings such as: bank,office building,hospital, school,hotel, shopping mall,amusement hall,portable dwellings,old house reconstruction,family house and S andwich Panel Roofing Sheets.
Specification
|
Length (mm) |
Width (mm) |
Thickness (mm) |
Density (kg/m2) |
Application |
Appearance |
|
2270
2440 |
610 |
50 |
38±5 |
Non-load bearing wall of houses and buildings |
With calcium silicate board as face board, solid |
|
60 |
42±5 |
||||
|
75 |
45±5 |
||||
|
90 |
52±5 |
||||
|
100 |
56±5 |
||||
|
120 |
62±5 |
||||
|
150 |
72±5 |
Packing
→
Free packing, normal pallet + packing belt
→
Standard exporting packing, good pallet+pearl wool+corner protective paper+packing belt+plastic thin film
→
Loading: Normally 18 pallets per 20' container or according to clients' requirements
Advantages
1 .Heat Insulation :Adjust S andwich P anel R oofing S heets and the indoor temperature at a constant range.
2. FireProof :4.5mm calcium silicateboard is fireproof, sandwich panel roofing sheets can be against a high temperature for 4 hours.
3. Sound Insulation : The inside of S andwich Panel Roofing Sheets material (EPS polystyrene grain) has fine sound insulation and sound absorbing function.
4. Easy to Install : Using our installation material (PU foam and Cement Adhesive) is easy to build S andwich Panel Roofing Sheets.
Applications
1.Interior/Exterior partition , . Floor and roof
2. Prefabricated houses
3. Modern high-rise Building
4. Schools, Hotels, office
5. All kinds of houses and structures
