Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
almaco
-
Model Number:
-
Z5040
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
108x62x245cm
-
Power (kW):
-
2.8
-
Weight (KG):
-
680 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Weight:
-
680kg
-
color:
-
as client's requirement
-
Keyword:
-
Vertical Drilling Tapping Machine
-
Function:
-
Drillig
-
Usage:
-
General
-
Precision:
-
Precision
-
Feature:
-
Safety
-
Processing Material:
-
Steel Alimunum Alloy
-
Working radius:
-
Long Arm
-
Certification:
-
CE.ISO9000
Quick Details
-
type:
-
Column Drilling Machine
-
Max. Drilling Dia. (mm):
-
40 mm
-
Range of Spindle Speed(r.p.m):
-
42 - 2050 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
almaco
-
Model Number:
-
Z5040
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
108x62x245cm
-
Power (kW):
-
2.8
-
Weight (KG):
-
680 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Weight:
-
680kg
-
color:
-
as client's requirement
-
Keyword:
-
Vertical Drilling Tapping Machine
-
Function:
-
Drillig
-
Usage:
-
General
-
Precision:
-
Precision
-
Feature:
-
Safety
-
Processing Material:
-
Steel Alimunum Alloy
-
Working radius:
-
Long Arm
-
Certification:
-
CE.ISO9000
Recommend Products
Product Description

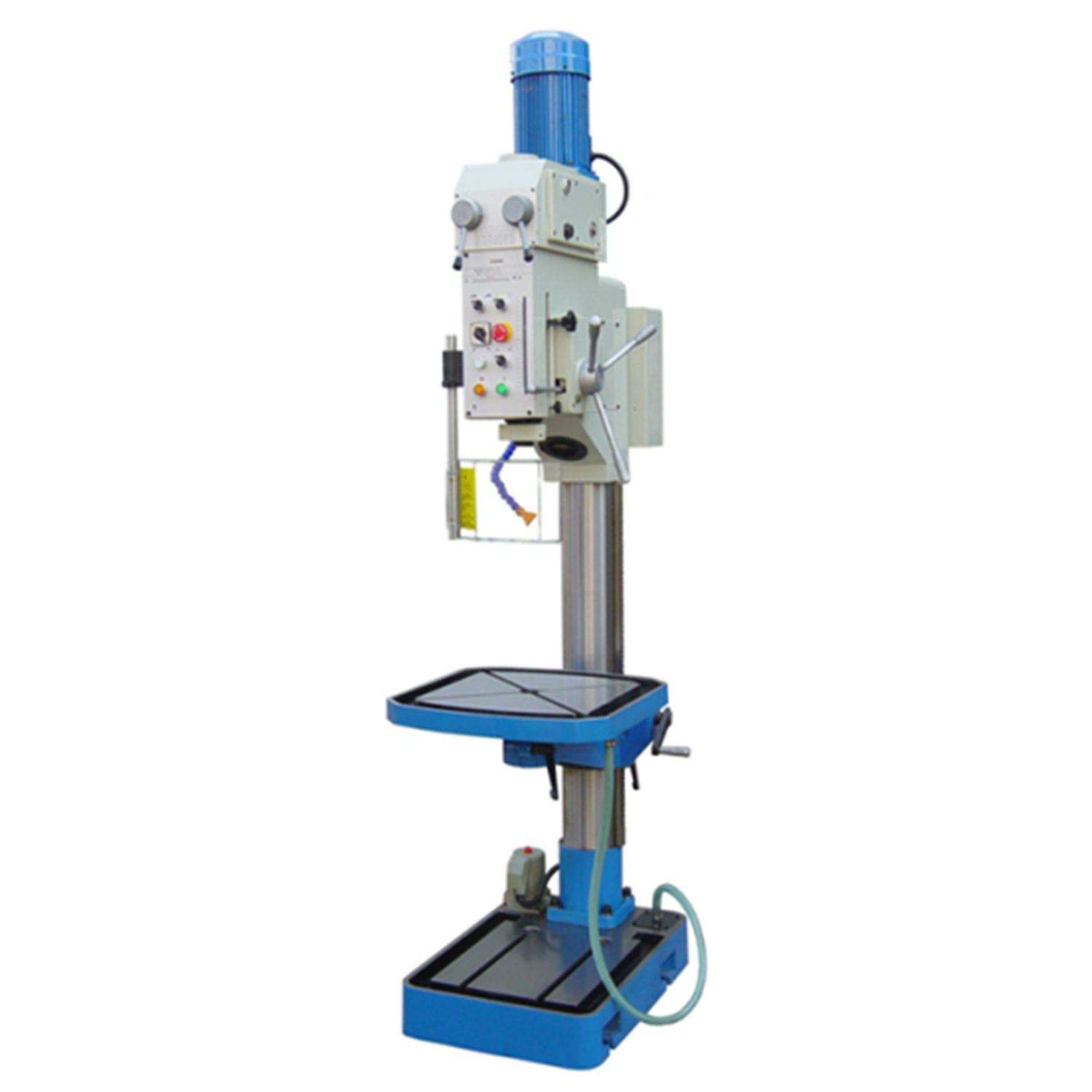

Vertical Drills ZN5035A
Standard Attachment:
1. Shaft sleeve for taper shank tool
2. Key type drill chuck
3. Connecting bar for drill chuck
4. Wedge for taper shank tool
5. Double open and spanner
Standard Attachment:
1. Shaft sleeve for taper shank tool
2. Key type drill chuck
3. Connecting bar for drill chuck
4. Wedge for taper shank tool
5. Double open and spanner
Specification
|
Model
|
ZN5035A
|
|
Max drilling diameter (steel) and tapping diameter
|
35/M20
|
|
Max travel of spindle
|
160mm
|
|
Max distance from spindle to generating line of column
|
320mm
|
|
Max distance between spindle end to the worktable surface
|
585mm
|
|
Max distance from spindle end to the surface of base worktable
|
1140mm
|
|
Max travel of worktable and bracket/manual(mechanical)
|
545mm
|
|
Swivel angle of worktable
|
+/-45°
|
|
Spindle taper bore
|
4
|
|
Spindle speed steps
|
12
|
|
Spindle speed range
|
125-3030
|
|
Spindle feed steps
|
3(ZN5035B/ZN5035A)
|
|
Spindel feed range
|
0.1-0.3(ZN5035B/ZN5035A)
|
|
Dimension of worktable
|
500X420mm
|
|
Effective working area of worktable
|
400X360mm
|
|
Diameter of column
|
120mm
|
|
Power of motor
|
1/1.2kw
|
|
Machine dimension
|
835X510X1730mm
|
|
Packing dimension
|
940X545X2290mm
|
|
Net/gross weight
|
430/475kg
|
