Quick Details
-
Place of Origin:
-
Hubei, China
-
Panel Dimensions:
-
41.54 x 24.09 x 0.98 inches
-
Panel Efficiency:
-
23%
-
Warranty:
-
12 Months
-
Item Name:
-

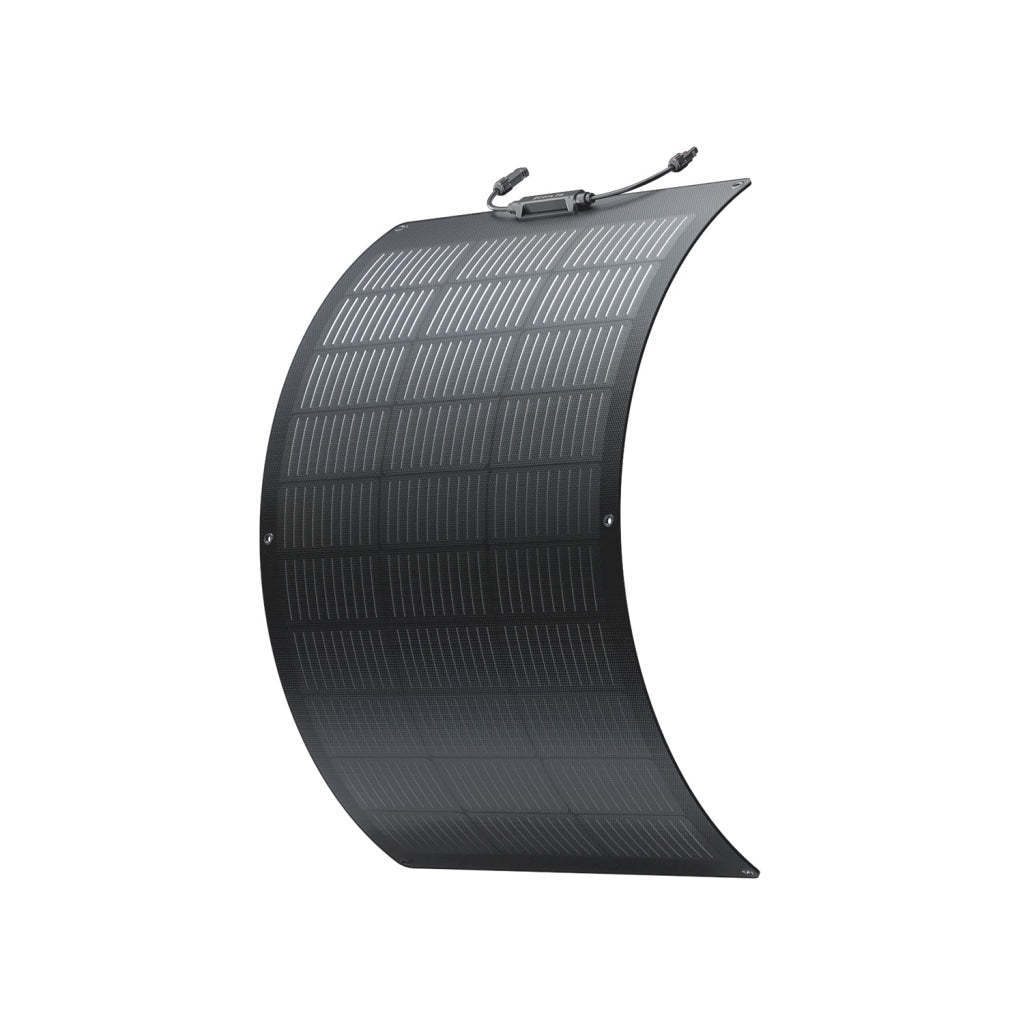

Semi flexible Solar Panel
-
Peak Power(Pmax):
-
100w
-
Application:
-
boat, bus station,house roof, etc
-
Feature:
-
frameless solar module
-
Certificate:
-
CE,ROHS,FCC,REACH
Quick Details
-
Cell size:
-
182mmx182mm
-
Brand Name:
-
FlexSolar
-
Model Number:
-
FSS-EF-100
-
Place of Origin:
-
Hubei, China
-
Panel Dimensions:
-
41.54 x 24.09 x 0.98 inches
-
Panel Efficiency:
-
23%
-
Warranty:
-
12 Months
-
Item Name:
-
Semi flexible Solar Panel
-
Peak Power(Pmax):
-
100w
-
Application:
-
boat, bus station,house roof, etc
-
Feature:
-
frameless solar module
-
Certificate:
-
CE,ROHS,FCC,REACH
Product Details
Product Specifications
*
Flexible for More Scenarios
- You can use it in various scenarios where the standard solar panel cannot be installed;
tailor-made for curved surfaces, Fits like a blanket on all surfaces.
* Different from other Flexible Solar Panel - Use ETFE (Ethylene Tetrafluoroethylene) is a new technology with a light
transmittance of up to 95%. There are regularly arranged bumps on one side, a beam of light can be propagated and refracted many times, and the higher efficiency can be converted into electrical energy.
* Safe and Sturdy - Built-in blocking diodes can prevent reverse charging and safely charge and maintain 12V batteries. Can withstand extreme winds up to 2400 Pa and snow loads up to 5400 Pa.
* Different From Traditional - Compared with the PET solar panel charger, it is lighter, thinner, and has a longer service life. And it has better waterproof and self-cleaning ability.
tailor-made for curved surfaces, Fits like a blanket on all surfaces.
* Different from other Flexible Solar Panel - Use ETFE (Ethylene Tetrafluoroethylene) is a new technology with a light
transmittance of up to 95%. There are regularly arranged bumps on one side, a beam of light can be propagated and refracted many times, and the higher efficiency can be converted into electrical energy.
* Safe and Sturdy - Built-in blocking diodes can prevent reverse charging and safely charge and maintain 12V batteries. Can withstand extreme winds up to 2400 Pa and snow loads up to 5400 Pa.
* Different From Traditional - Compared with the PET solar panel charger, it is lighter, thinner, and has a longer service life. And it has better waterproof and self-cleaning ability.
|
Maximum Power(Pmax)
|
100W
|
Temperature Range
|
-40℉-185℉
|
|
Max Power Voltage
|
18.2V
|
Power Tolerance
|
± 3%
|
|
Max Power Current
|
5.50A
|
Standard Test Conditions
|
1000W/m2, AM1.5, 25°C
|
|
Open-Circuit Voltage
|
22.7V
|
Solar Cell
|
Mono-Si
|
|
Short-Circuit Current
|
5.87A
|
Product Dimension
|
36.2*26.4*0.1 in
|
|
Maximum System Voltage
|
60V
|
Weight
|
3.6lbs
|
