Quick Details
-
Brand Name:
-
CN Electric
-
Model Number:
-
CNGD-Z3046
-
Product Name:
-
Sliding Acoustic Operable Partitions
-
Material:
-
Aluminium Alloy Frame and MDF Board
-
Color:
-
Customized Colors
-
Position:
-
Large banquet hall, Conference Hall, Villa, Office etc
-
Size:
-
Can be customized
-
Trademark:
-
CN Electric
-
Surface Finishing:
-
Finished
-
Certification:
-
CB,CE,ISO14001
-
Specification:
-
65mm/85mm/100mm in thickness
Quick Details
-
Application:
-
Home Office, Hotel, Office Building, Hospital, School, Mall, Leisure Facilities, Hall
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
CN Electric
-
Model Number:
-
CNGD-Z3046
-
Product Name:
-
Sliding Acoustic Operable Partitions
-
Material:
-
Aluminium Alloy Frame and MDF Board
-
Color:
-
Customized Colors
-
Position:
-
Large banquet hall, Conference Hall, Villa, Office etc
-
Size:
-
Can be customized
-
Trademark:
-
CN Electric
-
Surface Finishing:
-
Finished
-
Certification:
-
CB,CE,ISO14001
-
Specification:
-
65mm/85mm/100mm in thickness
Product Description
Sound Proof booth Movable Partition Wall Manual Office Partitions Exhibition Booth Walls Panel Acoustic Divider

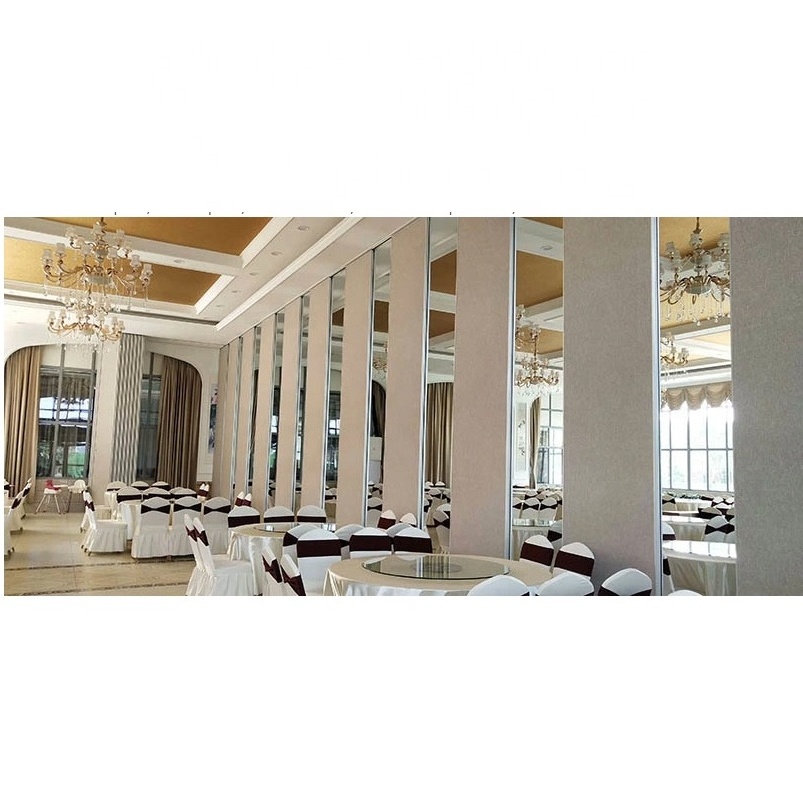

This movable partition wall systems are made up of a series of individual partition panel with ceiling track which make it be able to slide along the track. These movable partition walls on wheels are widely used in hotels, shops, exhibition centers, exhibition center, colleges, clubs, art centers, stadium, sports centers, offices, testing center, bowling centers, schools, conference center, golf clubs, etc.
Sliding Operable Partitions Suspension Systems
* The aluminum track system is made of natural construction grade aluminum alloy.
* Each single suspension hanging wall divider panel has vertical metal bearing wheels on the track.
* Different options for track crossings can be used to meet specific design requirements.
* Single or dual panel suspension options to accommodate different parking layout designs and requirements.
Product introduction
.
1.
Door panel :
Diversified surface treatment, diverse material selection, easy to match with a variety of design styles, simple daily maintenance.
2.
Sound insulation :
Unique structural design, using specially formed rubber components, equipped with self-developed upper & lower braces and side braces, sound insulation can reach RW=53db.
3.
Fire prevention :
Through the [Fire resistance Test Method of Building Components Part 8] test, the fire integrity is greater than 90 minutes, fire resistance and heat insulation is greater than 90 minutes, in line with the safety fire standards.
Details Images
Details Images
Specification
Specification
|
Thickness:
|
106mm
|
|
Width:
|
700-1200mm
|
|
Height:
|
4000-15000mm
|
|
Suspension:
|
Top hang with single or double carrier
|
|
Acoustic performance:
|
up to STC 52dB
|
Use Characteristics
1. High strength
6063-T6
aluminum alloy guide rail. 2. Suitable for conference hall, exhibition hall, banquet hall, multi-function hall and other places.
*
Load bearing of each meter is more than 2000 KGS
* Each pulley bearing more than 1500 KGS
* Easily moved even being pushed at waist-high
* The panel can make a turn automatically as sliding in the straight rail
* Each pulley bearing more than 1500 KGS
* Easily moved even being pushed at waist-high
* The panel can make a turn automatically as sliding in the straight rail
Packing & Delivery
Packing & Delivery
Packing and Delivery :
1. Standard export packing and MDF batten cover corners.
2. We have professional trucks to transport the goods to our export port ( Guangzhou port).
