Quick Details
-
Voltage:
-
220V
-
Power:
-
5-144KW
-
Dimension(L*W*H):
-
700*500*800 CM
-
Weight:
-
800 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
China Vacuum Transformer Oil Purifier Used Oil Cleaning Machine
-
Max Outlet Pressure(MPA):
-
0.5
-
Working Temperature:
-
40---70℃
-
Filtering efficiency:
-
1-3times
-
Filtering Fineness( m ):
-
1-5
-
Certificate:
-
CE ISO
-
Color:
-
Blue
-
Keyword:
-
Transformer Oil Filter Press
Quick Details
-
Flow:
-
50-300L/M
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Huazheng
-
Voltage:
-
220V
-
Power:
-
5-144KW
-
Dimension(L*W*H):
-
700*500*800 CM
-
Weight:
-
800 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
China Vacuum Transformer Oil Purifier Used Oil Cleaning Machine
-
Max Outlet Pressure(MPA):
-
0.5
-
Working Temperature:
-
40---70℃
-
Filtering efficiency:
-
1-3times
-
Filtering Fineness( m ):
-
1-5
-
Certificate:
-
CE ISO
-
Color:
-
Blue
-
Keyword:
-
Transformer Oil Filter Press

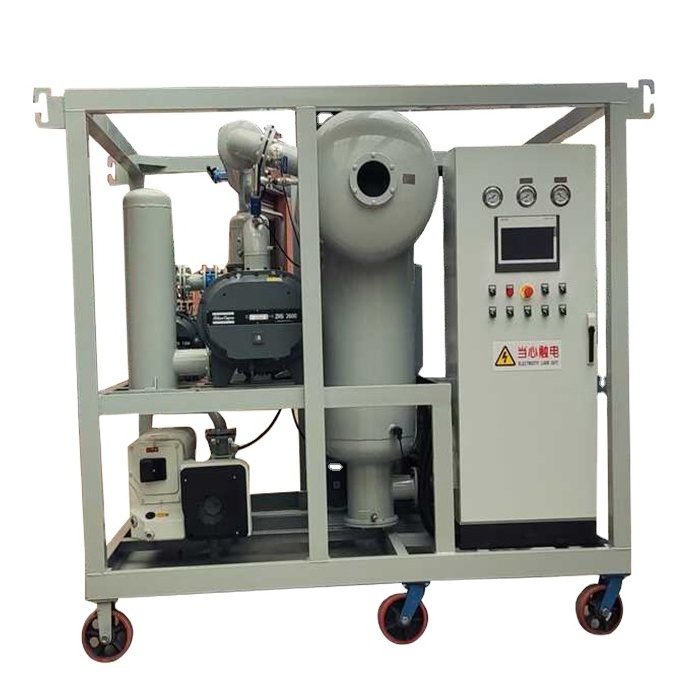

HZLY-30 30L/M Single Stage Vacuum Dehydration Transformer Oil Purification System Used Dielectric Oil Recycling Plant
1.FUNCTION
The main function of HZLY Series of signal and double stage high-efficient vacuum oil purifier is to remove free and dissolved water, gases, and mechanical impurities from insulating oils so as to ensure its purity and improve its insulation property. It is suitable for the application to oil treatment 500KV super-voltage transforming equipment and 220KV transformers. It is also suitable for the treatment of capacitor oil, transformer oil and freezer oil.
2.TECHNICAL FEATURES
l Doubles the evaporation area by adopting Huazheng horizontal double vacuum separation technology efficiently and reliability thorough removal of gas in the oil by using coalescing oil spray separator.
l Adoption of American fine filter element, fineness: 5μ m, ß ≥ 1000
l Low noise and long life of the oil transport system
l Adoption of American heating technique with the way of thermal radiation, constant temperature control.
l The use of float valve and photoelectric oil level control, eliminates supervision
l Adoption of French de-foaming technique to avoid oil leaking
l Controlled digitally and automatically by PLC
l Major electric apparatus are imported from America, so the controlling system safe and reliable
3.Specification
Model: HZLY-30
Nominal flow: 1800L/h
Net oil capacity: 30L/min
Pumping rate: 25M³/h
Ultimate vacuum: ≤1000Pa
Working pressure: ≤0.5Mpa
Working oil temperature:20~80℃
Working power supply: 50Hz380V three-phase three-wire
Heating power: 24Kw (Separate control by two groups)
Total power: 27kw
Operating noise: ≤75dB(A)
Inlet/outlet flange: DN25
Vacuum interface flange: DN25
Dimensions: 150×105×150cm
Equipment weight: 340Kg
Continuous working time: ≥200 hours
Average trouble-free working time:≥ 5000 hours
Configurations
|
NO |
Name |
Model |
Qty |
|
1 |
Vacuum pump |
X-25 |
1 |
|
2 |
Oil drain pump |
CBY2040-1FL |
1 |
|
3 |
Coarse filter |
A050 |
1 |
|
4 |
Primary filter |
5µ |
1 |
|
5 |
Second filter |
1µ |
1 |
|
6 |
Heater |
8KW |
3 |
|
7 |
Ball valve |
DN25 stainless steel |
2 |
|
8 |
Check valve |
DN25 |
1 |
|
9 |
valve |
DN15F |
7 |
|
10 |
Solenoid valve |
DN15 |
2 |
|
11 |
Electric |
DELIXI |
1 |
|
12 |
Liquid level sensor |
GMF-80SI-2A2 |
1 |
|
13 |
Liquid level sensor |
GMF-80SI-2A2 |
4 |
|
14 |
Pressure sensor |
KP36 |
1 |
|
15 |
Atomizer |
BB3/8BRASS-12W |
1 |
|
16 |
Degassing chamber |
VV6001500 |
1 |
|
17 |
Seal |
25-215*4 |
1 |
|
18 |
Electrical control box |
C600 |
1 |
We have our own manufacturing factory,pls see the below certificate,we are the direct supplier.
We are a new enterprise engaged in development,produce & sale a serious of power system products, such as Cable fault tester, transformer test class, lightning arrester test class, comprehensive test class.
From the date of purchase within one year instrument,the warranty time is 12 months.This is the piriod of free repair replacement, lifetime supply of maintenance and technical services. If the instrument has been found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
