Quick Details
-
Weight:
-
5500 KG
-
Drilling Diameter:
-
150-250mm
-
Drilling Depth:
-
Max.180m
-
Application:
-
Gelogical Prospecting
-
Feature:
-
High Drilling Efficiency,Wireless remote control
-
Product name:
-
Drilling Machine
-
Name:
-
Environmental Drilling Rig
-
Walking speed:
-
5km/h
-
Spiral Power Head Torque:
-
6000N.m
-
Torque of Impact Power Head:
-
900N.m
-
Spiral Power Head Speed:
-
80r/min
-
Advantage:
-
High Performance
-
Keyword:
-
Borehole Drilling Equipment
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANROCK
-
Dimension(L*W*H):
-
4200*1850*2400mm
-
Weight:
-
5500 KG
-
Drilling Diameter:
-
150-250mm
-
Drilling Depth:
-
Max.180m
-
Application:
-
Gelogical Prospecting
-
Feature:
-
High Drilling Efficiency,Wireless remote control
-
Product name:
-
Drilling Machine
-
Name:
-
Environmental Drilling Rig
-
Walking speed:
-
5km/h
-
Spiral Power Head Torque:
-
6000N.m
-
Torque of Impact Power Head:
-
900N.m
-
Spiral Power Head Speed:
-
80r/min
-
Advantage:
-
High Performance
-
Keyword:
-
Borehole Drilling Equipment
What is environmental drilling?
Environmental Drilling & Sampling Services
Environmental drilling is a way to investigate and delineate subsurface conditions and monitor them over time. The data collected may be used to identify areas of soil or groundwater contamination, log water table depths, or monitor and confirm the efficacy of remediation efforts.
Feature:
1.Small volume,the machine is smart, work flexibly in narrow space.high torque and sampling rate. 2.The rig is equipped with a drifter,and its maximum torque is 6600N.M. 3.The impact frequency of max 2100 times per minute ensures low compression ratio and high sampling rate. 4.The configuration of wireless remote control is simple and convenient to operate. The movable operating table is matched with the double rotary table angle changing mechanism, which makes the hole more flexible. 5.Energy conservation and environmental protection.The total power is only 93kw,with low energy consumption,meeting the requirements of sustainable development. 6.Wide crawler. to reduce the grounding specific pressure can ensure the safe construction in the geological loose area. 7.Safety protection mechanism. Built-in accurate hydraulic temperature control module, real-time monitoring of equipment operation,play a role in monitoring and early warning protection.
1.Small volume,the machine is smart, work flexibly in narrow space.high torque and sampling rate. 2.The rig is equipped with a drifter,and its maximum torque is 6600N.M. 3.The impact frequency of max 2100 times per minute ensures low compression ratio and high sampling rate. 4.The configuration of wireless remote control is simple and convenient to operate. The movable operating table is matched with the double rotary table angle changing mechanism, which makes the hole more flexible. 5.Energy conservation and environmental protection.The total power is only 93kw,with low energy consumption,meeting the requirements of sustainable development. 6.Wide crawler. to reduce the grounding specific pressure can ensure the safe construction in the geological loose area. 7.Safety protection mechanism. Built-in accurate hydraulic temperature control module, real-time monitoring of equipment operation,play a role in monitoring and early warning protection.

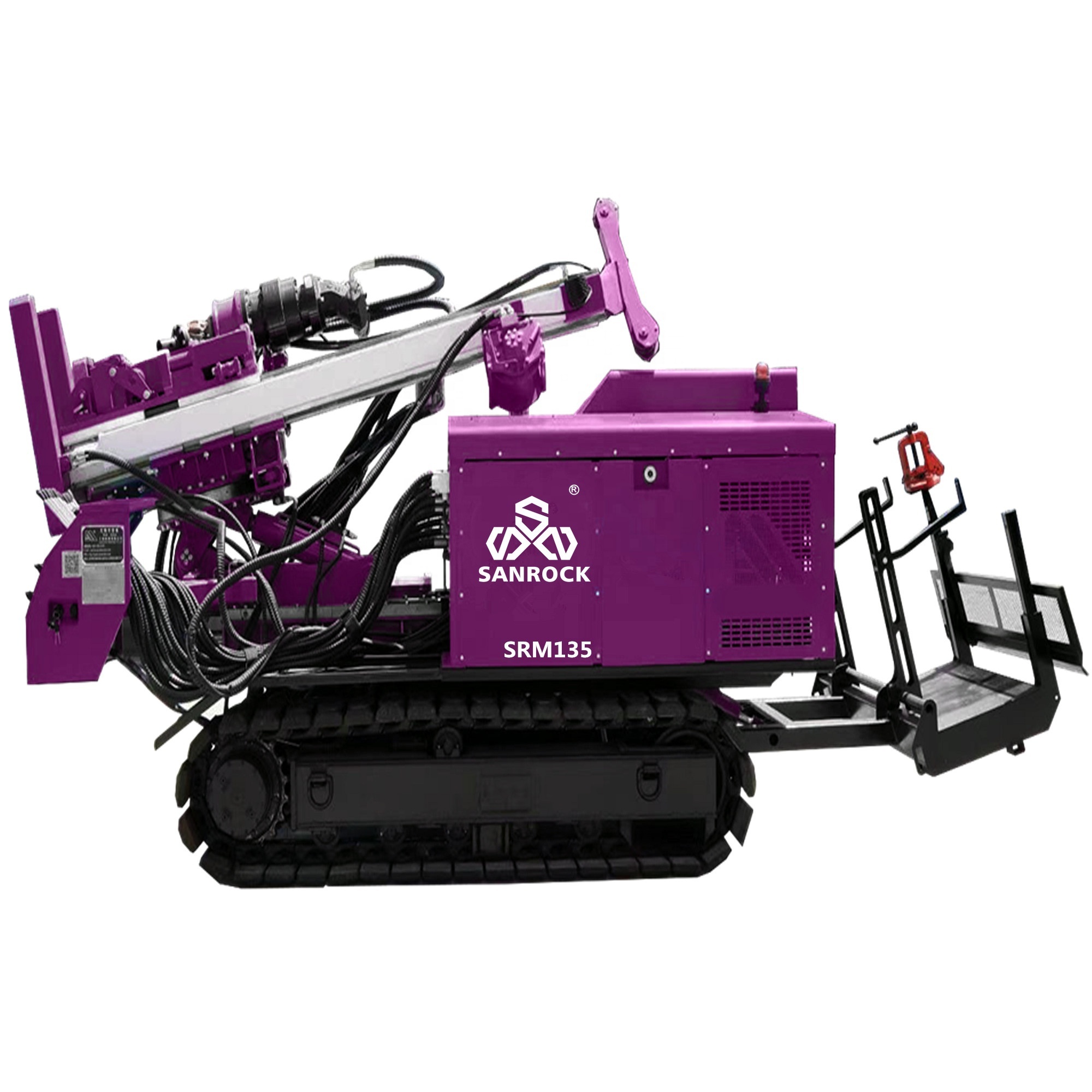

Environmental Soil Sampling Drilling Machine Hydraulic Geotechnical Drilling Rig Equipment
Products Description
|
Model
|
SRM- 135
|
|
Impact Frequency(b/min)
|
2100
|
|
Impact Power(N.m)
|
480
|
|
Torque of Impact Power Head(N.m)
|
900
|
|
Rotating Speed of Impact Power Head(r/min)
|
234
|
|
Spiral Power Head Torque(N.m)
|
6000
|
|
Spiral Power Head Speed(r/min)
|
80
|
|
Rated Lifting Force(kN)
|
265
|
|
Rated Feeding Force(kN)
|
180
|
|
Feeding Stroke(mm)
|
2000
|
|
Sliding Stroke(mm)
|
600
|
|
Platform Slip(mm)
|
350
|
|
Upper Arm Swing Angle(° )
|
± 15
|
|
Tilting of Propulsion Frame(° )
|
± 15
|
|
Starting Angle(° )
|
20- 100
|
|
Rear Hanger Bearing Capacity(kg)
|
1000
|
|
Equipment Weight(kg)
|
5500
|
|
Working Height(mm)
|
4800
|
|
Transportation Dimension(mm)
|
4200*1850*2400
|
|
Ground Specific Pressure(kg/cm)
|
0.32
|
|
Walking Speed(km/h)
|
5
|
|
Rated Power(kW )
|
93/ 1800
|
|
Lifting Capacity of Hydraulic W inch(kN)
|
1 1
|
|
Hydraulic W inch Speed(m/min)
|
39
|
Customer Photos
1.what can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver
,rotary drill rig ,underground jumbo drill rig ,screw air compressor,DTH hammer,drill rod,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
