*PLC controlling system, intelligent programmed system, self-correction,operate more steadily.
*Using PID temperature controller, make heat balance better.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
450
-
Voltage:
-
220-380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OCPACK
-
Dimension(L*W*H):
-
(L)640*(W)700*(H)1580mm
-
Modle packaging type:
-
Milk Powder Packing Machine
-
Packing speed:
-
30-80bags/min
-
Measurement rang:
-
1-100ml
-
Film roll width:
-
Maximum320mm
-
Film roll length:
-
Maximum200mm
-
The biggest roll diameter:
-
Maximum300mm
-
Film Thinkness:
-
0.03-0.06mm
-
Packaging film material:
-
OPP/CPP,OPP/CE,MST/PE, PET ETC.
-
Power:
-
220V,50/60HZ,2.2KW
-
Net weight/Gross Weight:
-
350kg/430kg
Quick Details
-
Function:
-
FILLING, Labeling, Sealing, SLITTING, Wrapping
-
Packaging Type:
-
Bags, CANS, case, Film, Foil, Pouch, Stand-up Pouch
-
Packaging Material:
-
Paper, Plastic, Heat-sealing film
-
Weight (KG):
-
450
-
Voltage:
-
220-380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OCPACK
-
Dimension(L*W*H):
-
(L)640*(W)700*(H)1580mm
-
Modle packaging type:
-
Milk Powder Packing Machine
-
Packing speed:
-
30-80bags/min
-
Measurement rang:
-
1-100ml
-
Film roll width:
-
Maximum320mm
-
Film roll length:
-
Maximum200mm
-
The biggest roll diameter:
-
Maximum300mm
-
Film Thinkness:
-
0.03-0.06mm
-
Packaging film material:
-
OPP/CPP,OPP/CE,MST/PE, PET ETC.
-
Power:
-
220V,50/60HZ,2.2KW
-
Net weight/Gross Weight:
-
350kg/430kg
Products Description
|
Specification
|
|
|
|
|
||||
|
Model
|
OC-320AT
|
|
|
|
||||
|
Measuring
|
Cup measuring
|
|
|
|
||||
|
Outer bag size
|
L:70~120mm,W:60~90mm
|
|
|
|
||||
|
Inner bag size
|
L:50~110mm,W:40~80mm
|
|
|
|
||||
|
packing speed
|
40~60bag/min
|
|
|
|
||||
|
Power
|
220V,50/60HZ,4.5KW
|
|
|
|
||||
|
Weight
|
400KG
|
|
|
|
||||

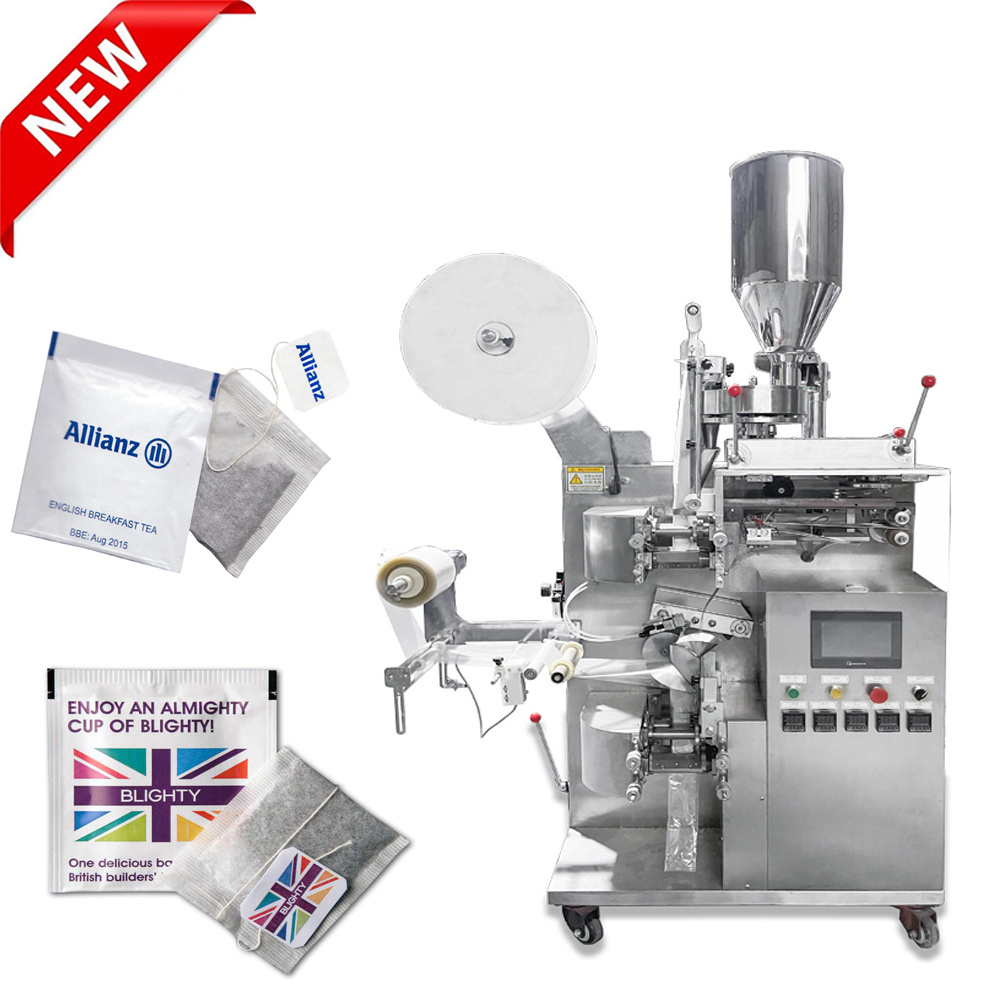

Application
>What do you want to pack?
Widely used in Green tea,Black tea ,Scented tea ,Herbal tea.
Optional Devices
The packaging machine has date coding,fills the package with nitrogen,makes the linking bag,makes the easy tearing and pinches the package.
Machine display
Touch Screen
Measuring Cup Device
*The measuring cup can automatically complete the operation of measuring the product, and the operation is simple.
*Adjust the measuring cup measuring system through accurate weighing of materials.
*Adjust the measuring cup measuring system through accurate weighing of materials.
Inner Bag Sealing Structure
*For the production of filter paper or non-woven inner bag,automatic bag making automatic packaging materials.
*Inner bag drum-type sealing structure with constant temperature system for tight seal.
*Inner bag drum-type sealing structure with constant temperature system for tight seal.
Outer Bag Sealing Structure
*Machine with a robotic arm can continuously put the inner bag into the outer plastic bag to achieve a perfect bag making process.
*Precision rotary sealing structure with independent temperature system, continuous forming and cutting of bags.
*Precision rotary sealing structure with independent temperature system, continuous forming and cutting of bags.
Tell us your requirements, tell us your product information,
we will have a professional staff to provide you with a most suitable packaging solution!
You can also send us samples, we can provide free trial packaging service!
