Quick Details
-
Mounting Type:
-
3-wire type
-
Description:
-
Magnetic switch
-
Manufacturing Date Code:
-
CK-07P
-
Model Number:
-
700074-08-0100
-
Type:
-
Magnetic switch series
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SVLEC
-
Theory:
-
Magnetic field signal
-
Output:
-
Solid state, normally open
-
Wiring method:
-
3-wire type
-
Operating voltage:
-
5-30V DC
-
Switching current:
-
200mA max.
-
Contact rating:
-
6W max.
-
Current consumption:
-
8mA@24V DC max.
-
Voltage drop:
-
1V@200mA max.
-
Leakage current:
-
0.01mA max.
-
Cable:
-
2.8, 3C, PUR
-
Magnet requirement:
-
40 Gauss
-
Operating frequency:
-
1000HZ
Quick Details
-
Use:
-
Cylinder sensor actuator
-
Series:
-
Magnetic switch sensor
-
Features:
-
Magnetic
-
Mounting Type:
-
3-wire type
-
Description:
-
Magnetic switch
-
Manufacturing Date Code:
-
CK-07P
-
Model Number:
-
700074-08-0100
-
Type:
-
Magnetic switch series
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SVLEC
-
Theory:
-
Magnetic field signal
-
Output:
-
Solid state, normally open
-
Wiring method:
-
3-wire type
-
Operating voltage:
-
5-30V DC
-
Switching current:
-
200mA max.
-
Contact rating:
-
6W max.
-
Current consumption:
-
8mA@24V DC max.
-
Voltage drop:
-
1V@200mA max.
-
Leakage current:
-
0.01mA max.
-
Cable:
-
2.8, 3C, PUR
-
Magnet requirement:
-
40 Gauss
-
Operating frequency:
-
1000HZ
Product Description

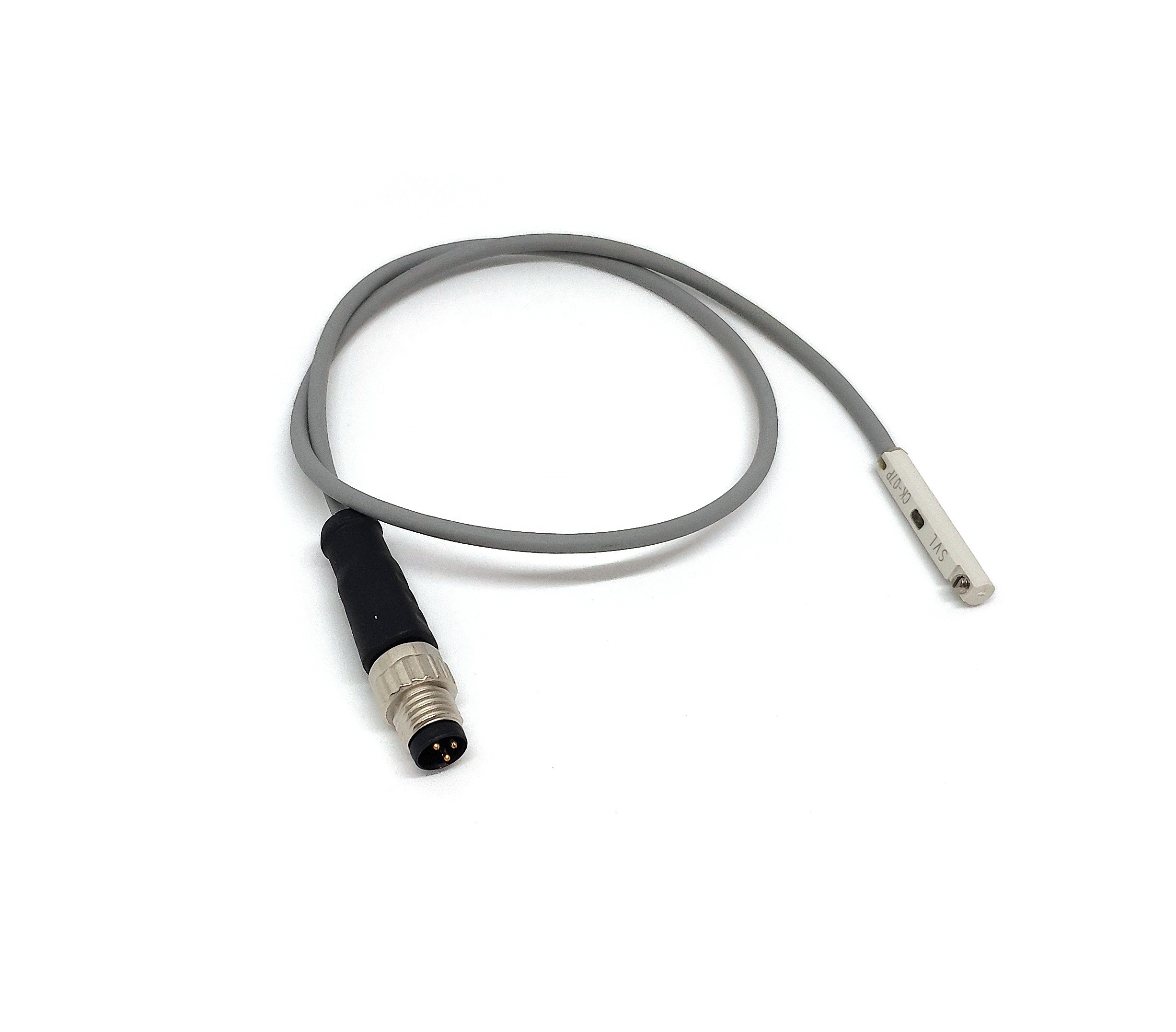

High quality PNP magnetic switch sensor solid state normally open for SMC C groove cylinder
The magnetic switch cylinder sensor is mainly used to monitor the position of the piston on the cylinder and gripper. The sensor detects the magnetic field of the magnet integrated in the piston through the actuator wall.
Through non-contact position detection, SVLEC magnetic cylinder sensor is absolutely reliable and wear-free: no contact burning, no bumps, only clean switch points. Even in the process of high speed, the piston position can be reliably identified.
Through non-contact position detection, SVLEC magnetic cylinder sensor is absolutely reliable and wear-free: no contact burning, no bumps, only clean switch points. Even in the process of high speed, the piston position can be reliably identified.
|
Model no.
|
CK-07
|
|
Wring method
|
3-wire type
|
|
Switching logic
|
Solid state normally open
|
|
Sensor type
|
Solid state type/ Solid state NPN/ Solid state PNP
|
|
temperature range
|
-10~70℃
|
|
Shock
|
50G
|
|
Vibration
|
9G
|
|
Enclosure classification
|
IEC 60529 IP67
|
