1.IP68,Full
316L
stainless steel material,use underwater for theme park,lake fountain
2.Long life span more than 50000 hours
3.Friendly to envirent ,NO radiation
4.Professinal IC constant current wide voltage driver built in the lamp
5.Imported the high-bright durable wire chips
6First level 8mm tempered glass
- Product Details
- {{item.text}}
Quick Details
-
Lamp Body Material:
-
Stainless steel
-
Product Weight（kg）:
-
5.8
-
Input Voltage(V):
-
24V
-
Lamp Luminous Flux(lm):
-
5400
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RISE
-
Model Number:
-
RS-UW54W316X-A
-
Size:
-
149*195mm
-
Material:
-
316L Stainless Steel
-
Color:
-
single color, RGB-DMX
-
IP Grade:
-
IP68 Waterproof
-
Voltage:
-
DC24V
-
Beam Angle:
-
10-90 degrees optional
-
Power:
-
18*3W
-
Certifications:
-
CE Rohs IP68 IEC
-
Keywords:
-
RGBW/RGB high power led underwater light for fountains
Quick Details
-
Color Temperature(CCT):
-
2700-6500K
-
Support Dimmer:
-
Yes
-
IP Rating:
-
IP68
-
Lamp Body Material:
-
Stainless steel
-
Product Weight（kg）:
-
5.8
-
Input Voltage(V):
-
24V
-
Lamp Luminous Flux(lm):
-
5400
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RISE
-
Model Number:
-
RS-UW54W316X-A
-
Size:
-
149*195mm
-
Material:
-
316L Stainless Steel
-
Color:
-
single color, RGB-DMX
-
IP Grade:
-
IP68 Waterproof
-
Voltage:
-
DC24V
-
Beam Angle:
-
10-90 degrees optional
-
Power:
-
18*3W
-
Certifications:
-
CE Rohs IP68 IEC
-
Keywords:
-
RGBW/RGB high power led underwater light for fountains

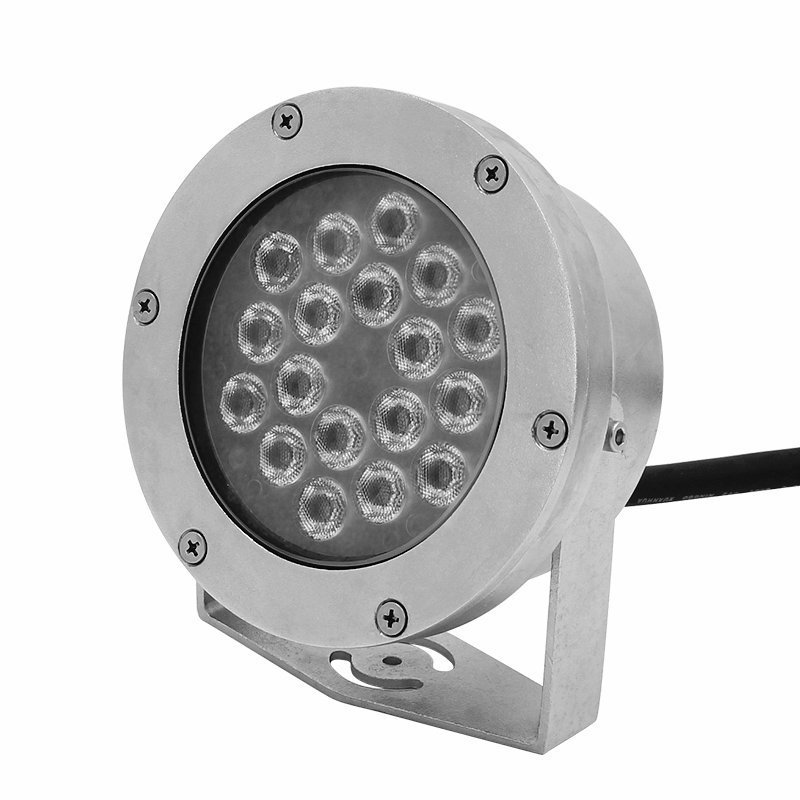

Product Description
Advantage for Rise led Underwater light
|
Model No.:
|
RS-UW54W316X-A(88137)
|
|
|
|
|||
|
Front cover & Housing:
|
Stainless steel 316L
|
|
|
|
|||
|
Dimensions
|
D149*H195mm(Max.)
|
|
|
|
|||
|
Tempered Glass :
|
8mm thickness
|
|
|
|
|||
|
LED chip:
|
Edison /cree
|
|
|
|
|||
|
LED Q’ty:
|
18pcs 3W LED / 18pcs 3in1 LED
|
|
|
|
|||
|
Cable gland:
|
Stainless steel 316L PG13.5
|
|
|
|
|||
|
Driver:
|
Constant current driver
|
|
|
|
|||
|
Lens:
|
Clear, Bead, Frosted
|
|
|
|
|||
|
Beam Angle Options:
|
10° 30° 45° 60° 90°
|
|
|
|
|||
|
Power Cable:
|
AWG 5/18 or AWG 3/18 SOW rubber cable
|
|
|
|
|||
|
Protection Class:
|
IP68
|
|
|
|
|||
|
Environment:
|
Dry / Submerged
|
|
|
|
|||
|
Mounting Hardware:
|
Surface Mounted System
|
|
|
|
|||
|
Net Weight:
|
4.5kgs with 1.5m cable
|
|
|
|
|||
|
Lifetime:
|
>50000H
|
|
|
|
|||
