Quick Details
-
Dimension(L*W*H):
-
none
-
Weight:
-
5000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Various kinds of rubber products
-
machine body casting:
-
FCD50 ductile cast iron
-
column:
-
Medium cast steel
-
heating plate:
-
Q-235 steel
-
Oil seal:
-
Japan NOK Brand
-
control:
-
semi-automatic
-
Power(W):
-
2.2 kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JUCAI
-
Voltage:
-
As your local need
-
Dimension(L*W*H):
-
none
-
Weight:
-
5000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Various kinds of rubber products
-
machine body casting:
-
FCD50 ductile cast iron
-
column:
-
Medium cast steel
-
heating plate:
-
Q-235 steel
-
Oil seal:
-
Japan NOK Brand
-
control:
-
semi-automatic
-
Power(W):
-
2.2 kw
Product Description

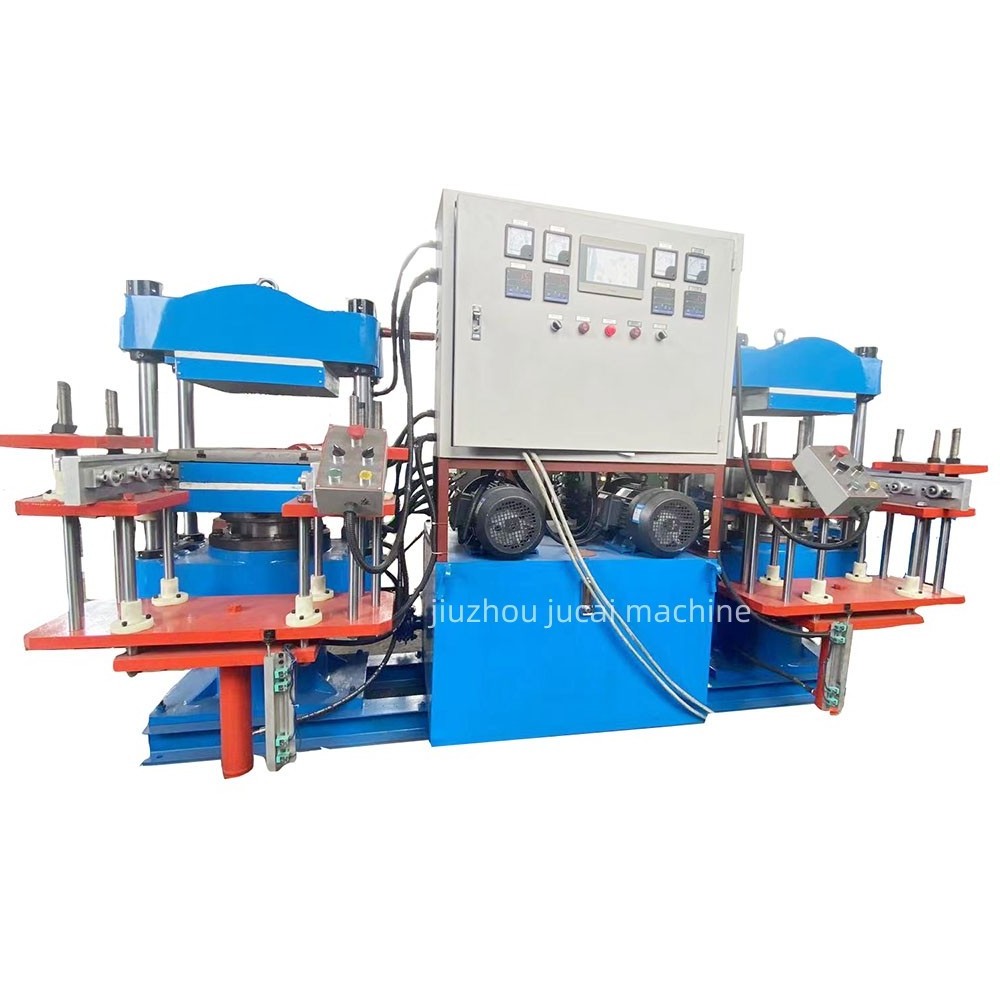

This machine is used to heat , vulcanize and solidify various kinds of rubber molded products
Details Images
Product Paramenters
|
Model
|
25 Ton
|
25 ton
|
50 ton
|
|||
|
mold closing/clamping force
|
25 ton
|
25 ton
|
50 ton
|
|||
|
stroke
|
150/200mm
|
150/200mm
|
150/200mm
|
|||
|
working plate
|
300*300mm
|
350*350mm
|
400*400mm
|
|||
|
cylinder diameter
|
152mm
|
152mm
|
200mm
|
|||
|
motor power
|
22.2 kw
|
2.2 kw
|
2.2 kw
|
|||
|
heater power
|
KW
|
25 KW
|
31 KW
|
|||
|
plate clearance
|
150/200mm
|
150/200mm
|
150/200mm
|
|||
|
type of mold opening
|
automatic mold closing , semi automatic mold opening
|
|
|
|||
|
system pressure
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
|||
|
machine weight
|
about 700kg
|
about 800 kg
|
about 1100 kg
|
|||
|
Remark: We can also design the non standard machine according to your need
|
|
|
|
|||
|
Model
|
80Ton
|
100 Ton
|
120 Ton
|
|||
|
mold clamping force
|
80 ton
|
100 ton
|
120 ton
|
|||
|
stroke
|
300mm
|
300mm
|
300mm
|
|||
|
working plate
|
500*500mm
|
600*600mm
|
700*700mm
|
|||
|
cylinder
|
250 mm
|
300mm
|
320mm
|
|||
|
motor Power
|
2.2 kw
|
2.2 kw
|
2.2 kw
|
|||
|
Heater Power
|
34 KW
|
44 KW
|
57 KW
|
|||
|
plate clearance
|
300mm
|
300mm
|
300mm
|
|||
|
Type of mold opening
|
automatic motorized mold closing , semi-automatic mold opening
|
|
|
|||
|
system pressure
|
16 Mpa
|
16 Mpa
|
16Mpa
|
|||
|
Remark: we can also customize the non standard machine according to your need
|
|
|
|
|||
1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
